Constant current controller (I07)
  • Constant current controller (I07)
  • LS-CTL-0177 dimensions (mm)

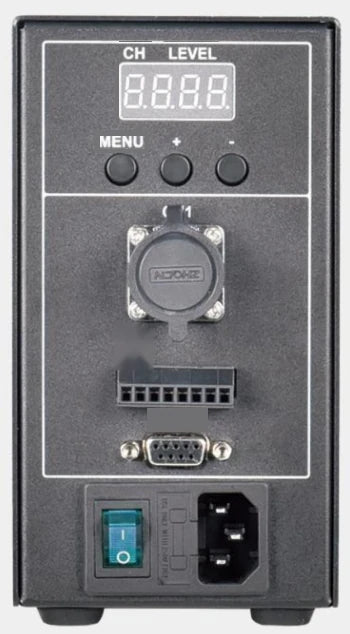

Representative photo of this series

Light controllers

Constant current controller, 1 ch, 350 W (LS-CTL-0191)

Model LS-CTL-0191

  • Channels1
  • Output24V/48V
  • Total output350 W
  • TriggerEdge + level trigger
$499.00

Ships in 2-3 weeks

1.0 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Constant current controller, 1 ch, 350 W (LS-CTL-0191)LS-CTL-0191

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Digital constant current controllers with flicker-free constant current output, real-time parameter saving, remote setting through RS232 and settable trigger level; 1, 2 and 4 channel versions for 24V/48V light sources.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CTL-0191
ControlDigital (4-digit display, buttons), RS232
Working mode0: normally extinguished, 1: normal light, 2: frequent flash, 3: trigger delay off

Interfaces and I/O

Light source interface4-core aviation plug (WS16-4/4B)

Light

Connected light source type24V light source
Luminous modeNormal light, frequently extinguished, strobe

Environment and compliance

Operating temperature-5~50°C

Electrical

Baud rate9600-115200bps optional
Max input voltageAC220V
Strobe time1~999ms
TriggerExternal trigger, edge + level
Trigger modeEdge + level trigger
Built-in power supply power350W
Number of channels1
Max output voltage24V/48V
Overheat protection65W none, all others have
Short-circuit protectionNo
Driving modeConstant current
Max output current per channel2.5~12A
Total output (W)350

Mechanical

Dimensions (mm)88 x 151 x 166
Shipping weight1.00 kg

Other models in the Constant current controller (LS-CTL-S41) series

See all 25 models
ModelSize / key dataPriceAvailabilityLink
LS-CTL-0177 1 ch, 65 W $229.00 Ships in 2-3 weeks View
LS-CTL-0181 1 ch, 120 W $249.00 Ships in 2-3 weeks View
LS-CTL-0184 1 ch, 120 W $249.00 Ships in 2-3 weeks View
LS-CTL-0178 2 ch, 65 W $259.00 Ships in 2-3 weeks View
LS-CTL-0175 2 ch, 65 W $259.00 Ships in 2-3 weeks View
LS-CTL-0179 2 ch, 65 W $259.00 Ships in 2-3 weeks View
LS-CTL-0187 1 ch, 200 W $289.00 Ships in 2-3 weeks View
LS-CTL-0190 1 ch, 200 W $289.00 Ships in 2-3 weeks View
LS-CTL-0182 2 ch, 120 W $289.00 Ships in 2-3 weeks View
LS-CTL-0188 2 ch, 200 W $329.00 Ships in 2-3 weeks View
LS-CTL-0192 2 ch, 200 W $329.00 Ships in 2-3 weeks View
LS-CTL-0176 4 ch, 65 W $329.00 Ships in 2-3 weeks View
LS-CTL-0180 4 ch, 120 W $359.00 Ships in 2-3 weeks View
LS-CTL-0183 4 ch, 120 W $359.00 Ships in 2-3 weeks View
LS-CTL-0185 4 ch, 200 W $399.00 Ships in 2-3 weeks View
LS-CTL-0186 4 ch, 200 W $399.00 Ships in 2-3 weeks View
LS-CTL-0189 4 ch, 200 W $399.00 Ships in 2-3 weeks View
LS-CTL-0197 1 ch, 350 W $499.00 Ships in 2-3 weeks View
LS-CTL-0194 2 ch, 350 W $549.00 Ships in 2-3 weeks View
LS-CTL-0196 2 ch, 350 W $549.00 Ships in 2-3 weeks View
LS-CTL-0193 4 ch, 350 W $629.00 Ships in 2-3 weeks View
LS-CTL-0195 4 ch, 350 W $629.00 Ships in 2-3 weeks View
LS-CTL-0198 4 ch, 450 W $719.00 Ships in 2-3 weeks View
LS-CTL-0199 4 ch, 600 W $809.00 Ships in 2-3 weeks View
