Light controllers

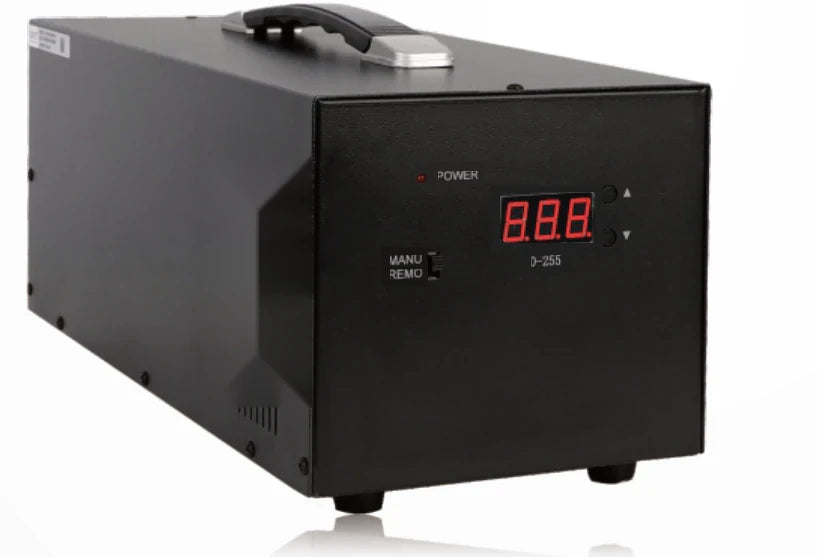

High power constant current controller (LS-CTL-S57)
- 6 models
- from $409.00
- Series LS-CTL-S57
The High power constant current controller (LS-CTL-S57) is a range of 6 light controllers from LumaSpec Vision, from $409.00. It comes in 6 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 1 ch, 1200 W, 1 ch, 200 W, 1 ch, 400 W, 1 ch, 500 W, 1 ch, 800 W, 2 ch, 400 W
- Output
- Constant current
- Channels
- 1 channel, 2 channels
- Control
- Analog
- Feature
- Constant current
Features
- Each channel controlled independently with high precision
- Digital display, button control
- Communicates with PC by RS232 (and LAN)
- Trigger, fast response, high reliability
- Power off saving function
- Cooling fan
- AS16 aviation connector light interface
- Trigger delay T1 <= 80us, T3 <= 80us
All 6 models in the High power constant current controller (LS-CTL-S57)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-CTL-0305 | 1 ch, 200 W | AC 100-240V | 1 | 0-8A | $409.00 | View |
| LS-CTL-0306 | 1 ch, 400 W | AC 100-240V | 1 | 0-16A | $559.00 | View |
| LS-CTL-0307 | 2 ch, 400 W | AC 100-240V | 2 | 0-8A | $599.00 | View |
| LS-CTL-0308 | 1 ch, 500 W | AC 100-240V | 1 | 0-10.4A | $619.00 | View |
| LS-CTL-0309 | 1 ch, 800 W | AC 100-240V | 1 | 0-16.6A | $809.00 | View |
| LS-CTL-0310 | 1 ch, 1200 W | AC 180-264V | 1 | 0-25A | $1,059.00 | View |
