Light controllers

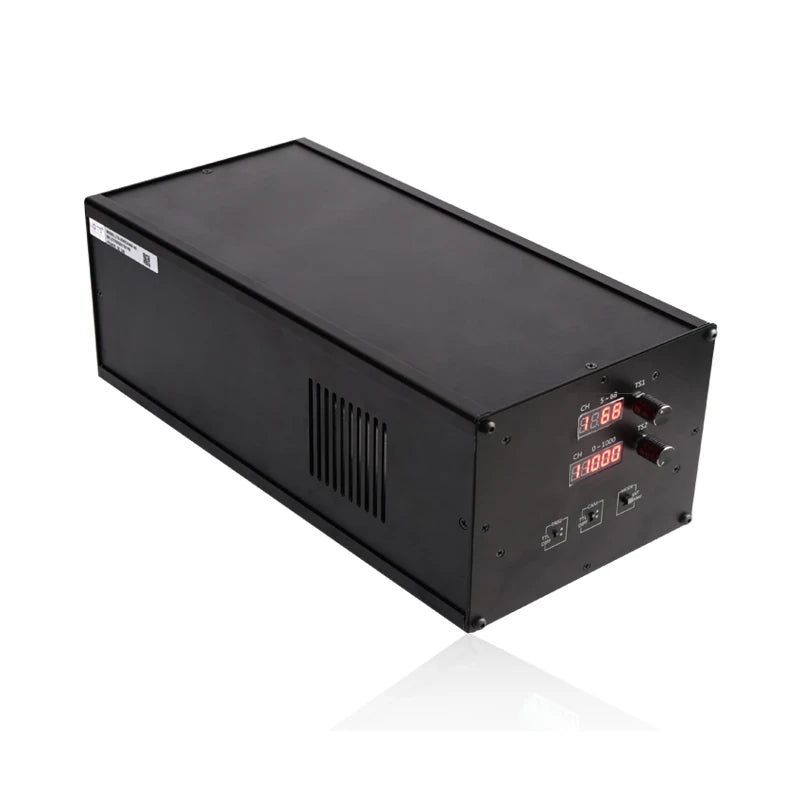

Alternate strobe controller (LS-CTL-S10)
- 5 models
- from $299.00
- Series LS-CTL-S10
The Alternate strobe controller (LS-CTL-S10) is a range of 5 light controllers from LumaSpec Vision, from $299.00. It comes in 5 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 2 ch, 2000 W, 2 ch, 250 W, 2 ch, 400 W, 4 ch, 250 W, 4 ch, 400 W
- Output
- Constant voltage 24 V, Constant voltage 48 V
- Channels
- 2 channels, 4 channels
- Control
- Analog
- Feature
- Strobe
Features
- Use with line scan light
- Time-sharing alternate / independent trigger mode optional
- Differential / TTL trigger signal optional
- 5us high speed response, Max. frequency is 80K
- Lighting time 5-500us adjustable
- 512/1000 luminance levels optional
- Support RS232 or Ethernet communication
All 5 models in the Alternate strobe controller (LS-CTL-S10)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-CTL-0075 | 2 ch, 250 W | 2 | 250W | 24V | $299.00 | View |
| LS-CTL-0076 | 4 ch, 250 W | 4 | 250W | 24V | $349.00 | View |
| LS-CTL-0077 | 2 ch, 400 W | 2 | 400W | 48V | $509.00 | View |
| LS-CTL-0078 | 4 ch, 400 W | 4 | 400W | 48V | $569.00 | View |
| LS-CTL-0079 | 2 ch, 2000 W | 2 | 1000W | 48V | $1,469.00 | View |
