Alternate strobe controller (LS-CTL-S10)

Representative photo of this series

Light controllers

Alternate strobe controller, 4 ch, 400 W (LS-CTL-0078)

Model LS-CTL-0078

Channels4
Output48V
InputAC 100-240V
Total output400W
ControlRS232/LAN

$569.00

Ships in 2-3 weeks

0.5 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Use with line scan light. Time-sharing alternate / independent trigger mode optional. Differential / TTL trigger signal optional.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CTL-0078
Product	Alternate strobe controller
Control	Manual adjustment by encoder, PC remote adjustment

Interfaces and I/O

Communication mode	RS232/LAN

Light

LED lighting time	5-68us/5-500us (alternate trigger mode); 5-999us (independent trigger mode)
Luminance adjustment mode	Constant voltage
Luminance adjustment level	512/1000 level
Luminance adjustment method	Manual adjustment by encoder, PC remote adjustment

Environment and compliance

Operating environment	Humidity 20%-85%RH (non-condensing), temperature 0°C-50°C
Storage environment	Humidity 20%-85%RH (non-condensing), temperature 0°C-60°C

Computing

Memory function	Data saving automatically when power off

Electrical

Input voltage	AC 100-240V
Input frequency range	50/60Hz
Baud rate	19200bps
External input trigger signal	TTL or DIFF signal (both rising edge effective, DIFF signal only supports 5V), max. external trigger frequency up to 80KHz
Output camera trigger signal	TTL or DIFF signal
External trigger signal	5V-24V (high level effective)
External trigger delay time	5us
External trigger voltage	5-24V
Output voltage	48V
Total output power	400W
One way max. output power	400W
Number of channels	4

Mechanical

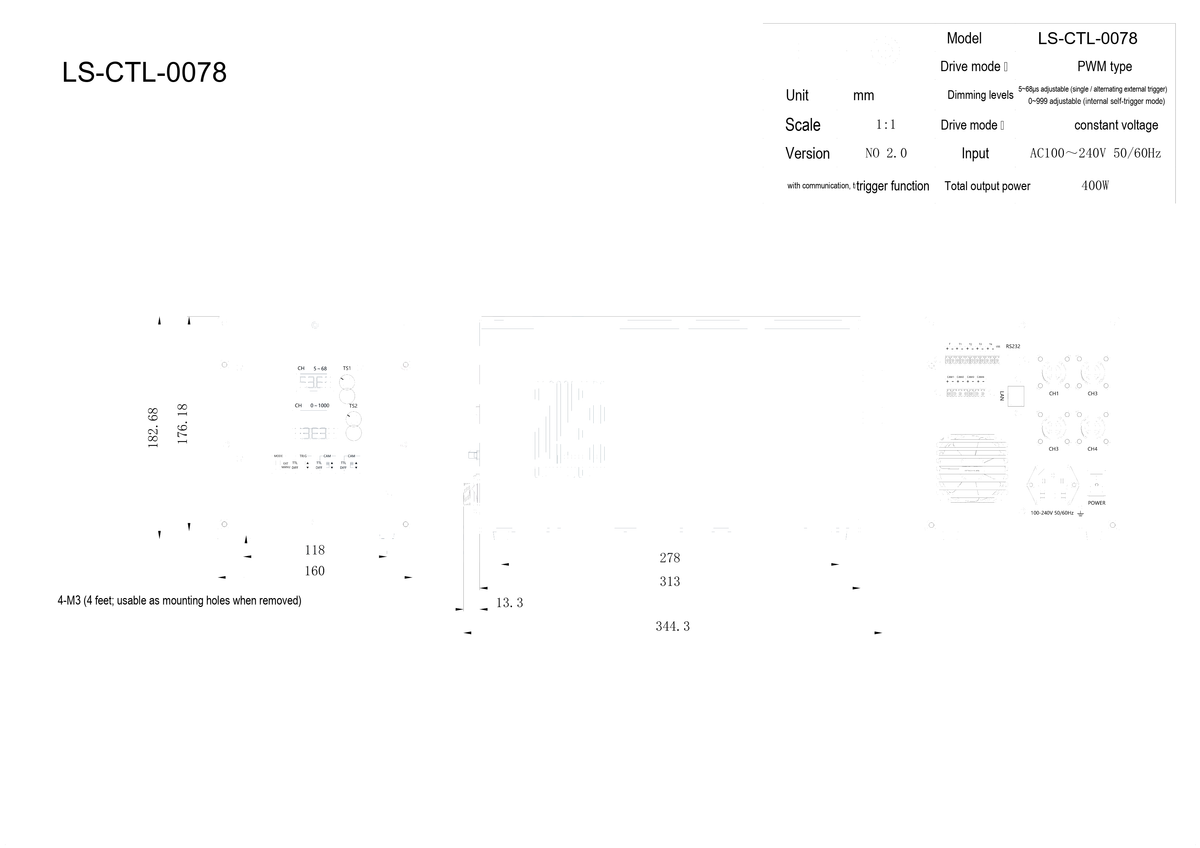

Mounting holes	4-M3 (the 4 feet can be removed and used as mounting holes)
Shipping weight	0.50 kg
