Light controllers

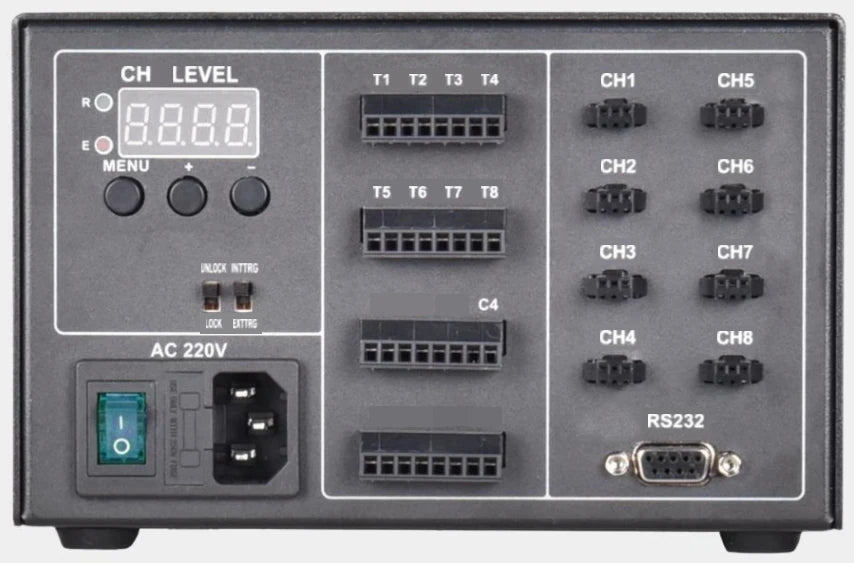

Hybrid / network-port strobe controller (LS-CTL-S73)
- 5 models
- from $359.00
- Series LS-CTL-S73
The Hybrid / network-port strobe controller (LS-CTL-S73) is a range of 5 light controllers from LumaSpec Vision, from $359.00. It comes in 5 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 4 ch, 120 W, 4 ch, 400 W, 8 ch, 120 W, 8 ch, 200 W, 8 ch, 350 W
- Output
- Constant voltage 48 V
- Channels
- 4 channels, 8 channels
- Control
- Digital
- Feature
- Strobe
Features
- Supports RS232 communication
- Built-in 48V switching power supply
- Low trigger response time (≤10us)
- Supports external/internal trigger mode
- Supports synchronized signal output
- Power-down data is automatically saved
- 12V output interface for camera power supply
- Easy to install: screw mount or C45 mounting rail
All 5 models in the Hybrid / network-port strobe controller (LS-CTL-S73)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-CTL-0383 | 4 ch, 120 W | 4 | 120 | 89 x 147 x 175 | $359.00 | View |
| LS-CTL-0382 | 8 ch, 120 W | 8 | 120 | 185 x 162 x 121 | $489.00 | View |
| LS-CTL-0384 | 8 ch, 200 W | 8 | 200 | 185 x 162 x 121 | $529.00 | View |
| LS-CTL-0386 | 4 ch, 400 W | 4 | 400 | 89 x 147 x 175 | $649.00 | View |
| LS-CTL-0385 | 8 ch, 350 W | 8 | 350 | 185 x 162 x 121 | $789.00 | View |
