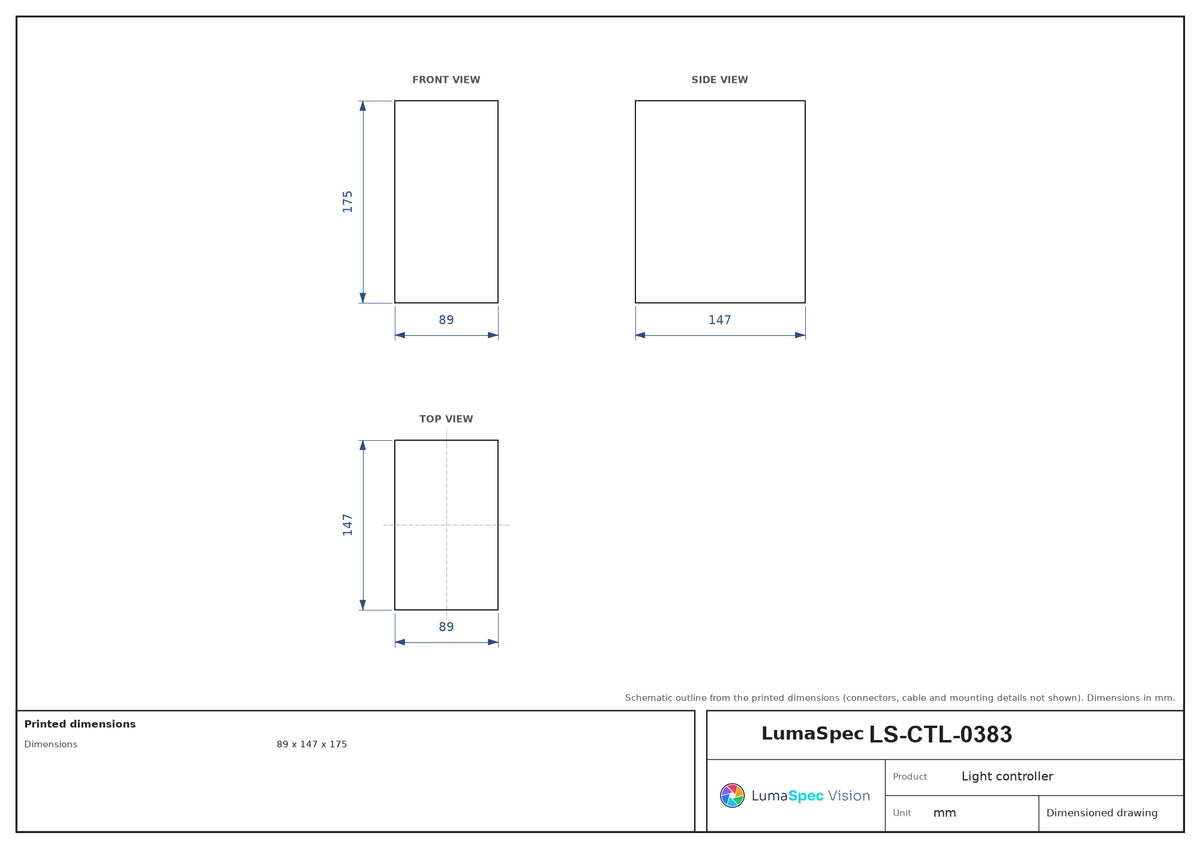

  • LS-CTL-0383 dimensions (mm)

Representative photo of this series

Light controllers

Hybrid / network-port strobe controller, 4 ch, 120 W (LS-CTL-0383)

Model LS-CTL-0383

  • Channels4
  • Output48V
  • Total output120 W
  • TriggerEdge
$359.00

Ships in 2-3 weeks

1.05 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Hybrid / network-port strobe controller, 4 ch, 120 W (LS-CTL-0383)LS-CTL-0383

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Digital voltage-type strobe controllers of the mixed LS-CTL-S73 series with built-in 48V switching power supply, RS232 (and Ethernet on CE versions), internal/external triggering and synchronous signal output.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CTL-0383
Operating modesInternal trigger / external trigger
ControlDigital (4-digit display, buttons), RS232, 100 Mbps Ethernet

Light

Connected light source type10mA~2.5A 24V power supply
Light emitting modeStrobe

Environment and compliance

Operating temperature-5~50°C

Electrical

Baud rate9600-115200bps optional
Internal trigger cycle10~999ms
Max input voltageAC220V
Max output current per channelInstantaneous 20A
Max output voltage48V
Overheat protectionYes
Short-circuit protectionNo
Strobe pulse width10~999us
Built-in power supply power120W
Number of channels4
Trigger modeEdge
Trigger5~24V external trigger, adaptable to high and low level trigger modes; internal trigger; synchronous output
Total output (W)120

Mechanical

Dimensions (mm)89 x 147 x 175
Shipping weight1.05 kg
