Standard digital controller (LS-CTL-S52 series, incl. high power)

Light controllers

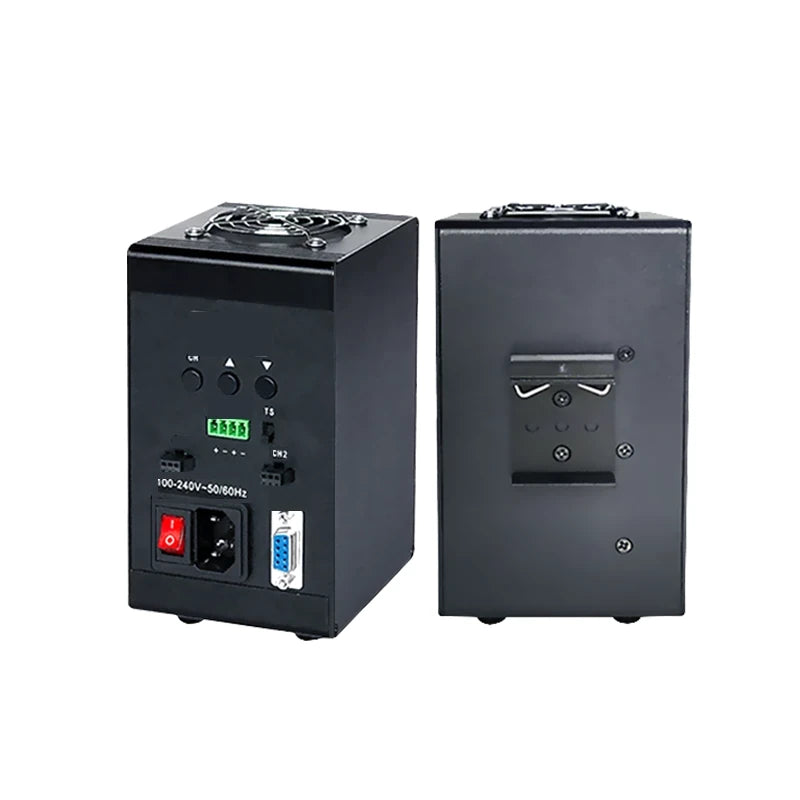

Standard digital controller (LS-CTL-S52 series, incl. high power)

  • 11 models
  • from $339.00
  • Series LS-CTL-S52

The Standard digital controller (LS-CTL-S52 series, incl. high power) is a range of 11 light controllers from LumaSpec Vision, from $339.00. It comes in 11 sizes or versions. Every model below has its own page with full specifications, drawings and price.

Build a system with this series See all 11 models Series datasheet (PDF)

The series at a glance

Sizes / versions
1 ch, 1 ch, 200 W, 1 ch, 300 W, 1 ch, 600 W, 2 ch, 2 ch, 200 W, 2 ch, 300 W, 2 ch, 400 W, 2 ch, 600 W, 4 ch, 200 W, 4 ch, 320 W
Output
Constant current
Channels
1 channel, 2 channels, 4 channels
Control
Digital
Feature
Constant current

Features

  • Current control: LED brightness is more stable, the camera takes pictures without stroboscopic phenomenon
  • High and low level trigger switching
  • Brightness 255 level adjustable
  • RS232 serial port control
  • Brightness 255 level adjustable.
  • Support high and low levels trigger switching.
  • Operation panel front, more convenient to use.
  • Silent fan, good heat dissipation performance.

Typical uses

  • Powering machine vision LED light sources, brightness control and strobe (trigger) control

All 11 models in the Standard digital controller (LS-CTL-S52 series, incl. high power)

Link
LS-CTL-02432 ch2digital$339.00View
LS-CTL-02411 ch1Digital: keys / RS232$359.00View
LS-CTL-02391 ch, 200 W1200Digital$389.00View
LS-CTL-02442 ch, 200 W2200digital$469.00View
LS-CTL-02401 ch, 300 W1300digital$489.00View
LS-CTL-02452 ch, 300 W2300Digital: keys / RS232$539.00View
LS-CTL-02462 ch, 400 W2400Digital$559.00View
LS-CTL-02484 ch, 200 W4200digital$569.00View
LS-CTL-02421 ch, 600 W1600Digital$639.00View
LS-CTL-02494 ch, 320 W4320Digital: keys / RS232$639.00View
LS-CTL-02472 ch, 600 W2600Digital: keys / RS232$779.00View
