Light controllers

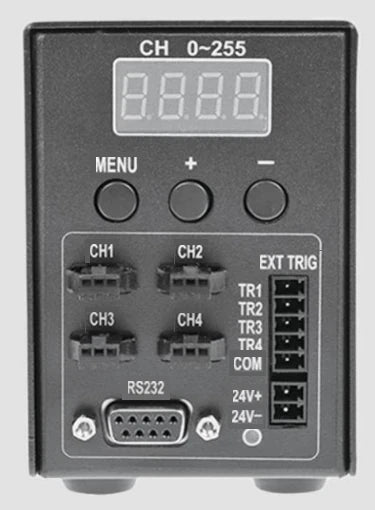

485 type digital controller (LS-CTL-S87)
- 6 models
- from $369.00
- Series LS-CTL-S87
The 485 type digital controller (LS-CTL-S87) is a range of 6 light controllers from LumaSpec Vision, from $369.00. It comes in 6 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 2 ch, 120 W, 2 ch, 200 W, 2 ch, 65 W, 4 ch, 4 ch, 120 W, 4 ch, 65 W
- Output
- Constant voltage 24 V
- Channels
- 2 channels, 4 channels
- Control
- Digital
Features
- Support RS232/RS485 communication
- External power supply up to 24V
- Low trigger response time
- Support external trigger mode
- Support millisecond strobe and microsecond strobe
- Brightness and mode can be set manually
- 5~24V trigger, adaptable to high and low level trigger modes
- Small size, easy to install, screw mounting or C45 rail mounting
All 6 models in the 485 type digital controller (LS-CTL-S87)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-CTL-0436 | 2 ch, 65 W | 2.5A/4A | 2 | 65 | $369.00 | View |
| LS-CTL-0438 | 2 ch, 120 W | 2.5A/4A | 2 | 120 | $399.00 | View |
| LS-CTL-0440 | 2 ch, 200 W | 2.5A/4A | 2 | 200 | $459.00 | View |
| LS-CTL-0437 | 4 ch, 65 W | 2.5A/4A | 4 | 65 | $459.00 | View |
| LS-CTL-0441 | 4 ch | 4A | 4 | $479.00 | View | |
| LS-CTL-0439 | 4 ch, 120 W | 2.5A/4A | 4 | 120 | $499.00 | View |
