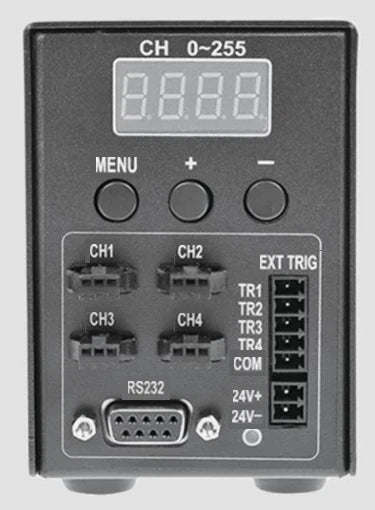

Representative photo of this series
Light controllers
485 type digital controller, 2 ch, 65 W (LS-CTL-0436)
Model LS-CTL-0436
- Channels2
- Total output65 W
- Control9600-115200bps optional
- TriggerEdge + level trigger
$369.00
Ships in 2-3 weeks
0.7 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Controller section '485 type digital controller' of the light controller selection manual (cards P49-P51).
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTL-0436 |
|---|---|
| Working mode | 0: Normally extinguished; 1: Bright; 2: Millisecond strobe; 3: Microsecond strobe |
| Control | digital (buttons, 4-digit display) / RS232 / RS485 |
Interfaces and I/O
| Communication baud rate | 9600-115200bps optional |
|---|
Light
| Brightness level | 255 levels |
|---|---|
| Luminous mode | Normal light, normal extinction, strobe |
| Connected light source type | 10mA~2.5A 24V power supply |
Environment and compliance
| Operating temperature | -5~50°C |
|---|
Electrical
| Maximum output voltage | 24V |
|---|---|
| Short-circuit protection | HAVE |
| Trigger mode | Edge + level trigger |
| Driving mode | PWM |
| Built-in power supply power | 65W |
| Number of channels | 2 |
| Maximum input voltage | AC220V |
| Overheat protection | 65W none, all others have |
| Maximum output current of single channel | 2.5A/4A |
| Millisecond strobe time | 1~999ms |
| Microsecond strobe time | 1~999us |
| Total output (W) | 65 |
Mechanical

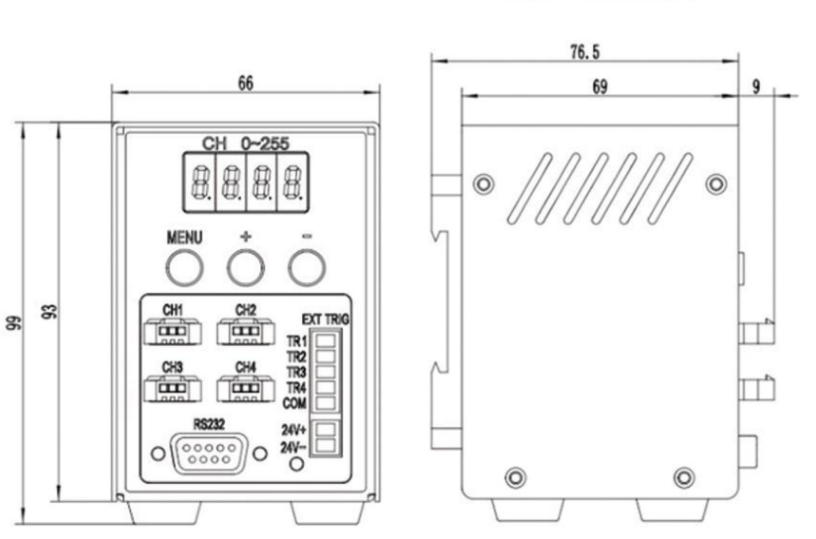

| Dimension | 114×125×99mm |
|---|---|
| Shipping weight | 0.70 kg |
Other models in the 485 type digital controller (LS-CTL-S87) series
See all 6 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-CTL-0438 | 2 ch, 120 W | $399.00 | Ships in 2-3 weeks | View |
| LS-CTL-0440 | 2 ch, 200 W | $459.00 | Ships in 2-3 weeks | View |
| LS-CTL-0437 | 4 ch, 65 W | $459.00 | Ships in 2-3 weeks | View |
| LS-CTL-0441 | 4 ch | $479.00 | Ships in 2-3 weeks | View |
| LS-CTL-0439 | 4 ch, 120 W | $499.00 | Ships in 2-3 weeks | View |
