Light controllers

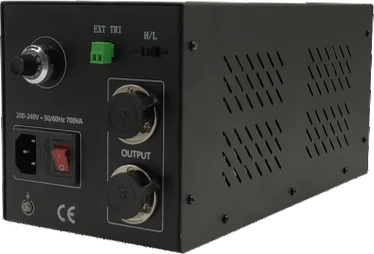

High-power analog controller (LS-CTL-S24)
- 6 models
- from $519.00
- Series LS-CTL-S24
The High-power analog controller (LS-CTL-S24) is a range of 6 light controllers from LumaSpec Vision, from $519.00. It comes in 2 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 2 ch, 0-24V, 4 ch, 0-48V
- Output
- Constant voltage 24 V, Constant voltage 48 V
- Channels
- 2 channels, 4 channels
- Control
- Analog
Features
- Stepless knob precisely adjusts the brightness
- High speed optocoupler isolation trigger
- Two channels are controlled independently
All 6 models in the High-power analog controller (LS-CTL-S24)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-CTL-0135 | 2 ch, 0-24V | 2CH | 0~24V | 16.5A | $519.00 | View |
| LS-CTL-0134 | 2 ch, 0-24V | 2CH | 0~24V | 16.5A | $529.00 | View |
| LS-CTL-0136 | 2 ch, 0-24V | 2CH | 0~24V | 20A | $579.00 | View |
| LS-CTL-0137 | 4 ch, 0-48V | 4CH | 0~48V | 8.4A | $609.00 | View |
| LS-CTL-0138 | 4 ch, 0-48V | 4CH | 0~48V | 11.5A | $689.00 | View |
| LS-CTL-0139 | 4 ch, 0-48V | 4CH | 0~48V | 34A | $1,319.00 | View |
