2-Channel High-Power Analog LED Light Controller, 0-24V (LS-CTL-0134)

Model LS-CTL-0134

Output0~24V
InputAC100-240V 50/60Hz
Total output16.5A
Channels2 channels

$529.00

In stock - ships the same business day (3 available, order by 2 PM ET)

2.1 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

2-Channel High-Power Analog LED Light Controller, 0-24V. LS-CTL-S24 series analog controller mainly powers 24V LED lights (as stated; the range also includes 48V-output models); brightness is adjusted accurately with the front-panel stepless knob. It can keep the light continuously on for a long time and has a built-in external trigger function for easy on-off switching.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CTL-0134
Control method	knob
Knob	Lockable intensity knob (rotate right to lock, left to unlock)
Ground terminal	Yes

Electrical

Output CH	2CH
Input voltage	AC100-240V 50/60Hz
Output voltage	0~24V
Single CH current	10A
Total output current	16.5A
External trigger voltage	5-24V
Trigger port (trigger models)	DC 5-24V trigger input; 1 = CH1, 2 = CH2, COM = common, NC = blank; COM cannot connect to + and - at the same time
ON/OFF switch (trigger models)	H = constant on (trigger turns light off); L = constant off (trigger turns light on)
Power switch	I = on, O = off

Mechanical

Shipping weight (estimated)	2.10 kg

Mounting and drawing data

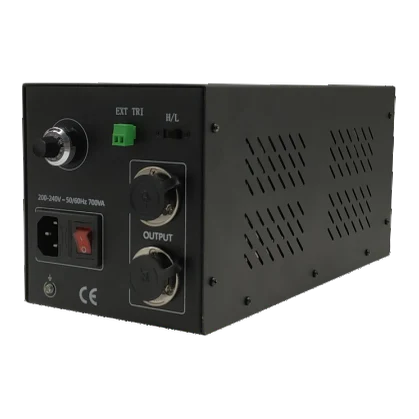

Panel (shared with LS-CTL-0136) labelled 200-240VAC 50/60Hz; EXT TRI trigger port (DC input, either polarity) and H/L switch; two OUTPUT connectors; drawing W130 x H136 x D290

Other models in the High-power analog controller (LS-CTL-S24) series

See all 6 models

Model	Size / key data	Price	Availability	Link
LS-CTL-0135	2 ch, 0-24V	$519.00	2 in stock	View
LS-CTL-0136	2 ch, 0-24V	$579.00	2 in stock	View
LS-CTL-0137	4 ch, 0-48V	$609.00	3 in stock	View
LS-CTL-0138	4 ch, 0-48V	$689.00	2 in stock	View
LS-CTL-0139	4 ch, 0-48V	$1,319.00	3 in stock	View
