Light controllers

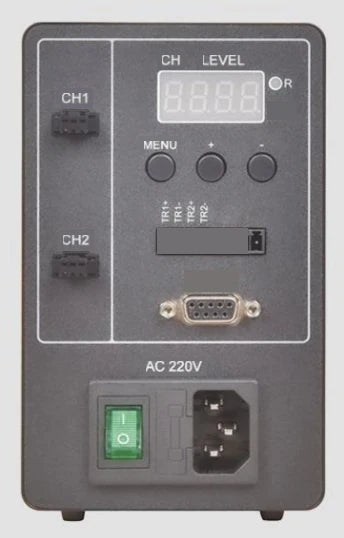

ABS digital light source controller (LS-CTL-S101)
- 12 models
- from $369.00
- Series LS-CTL-S101
The ABS digital light source controller (LS-CTL-S101) is a range of 12 light controllers from LumaSpec Vision, from $369.00. It comes in 6 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 2 ch, 120 W, 2 ch, 200 W, 2 ch, 65 W, 4 ch, 120 W, 4 ch, 200 W, 4 ch, 65 W
- Output
- Constant voltage 24 V
- Channels
- 2 channels, 4 channels
- Control
- Digital
Features
- Supports RS232 communication
- Overheat protection and output short-circuit protection
- Low trigger response time
- Supports external trigger mode
- Supports millisecond strobe and microsecond strobe
- Brightness and mode can be set manually
- 5~24V trigger, adaptable to high and low level trigger modes
- Small size, easy to install, screw mounting or C45 rail mounting
All 12 models in the ABS digital light source controller (LS-CTL-S101)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-CTL-0512 | 2 ch, 65 W | 2 | 65 | 90 x 94.6 x 150 mm | $369.00 | View |
| LS-CTL-0513 | 2 ch, 65 W | 2 | 65 | 90 x 93.4 x 150 mm | $369.00 | View |
| LS-CTL-0518 | 2 ch, 120 W | 2 | 120 | 90 x 94.6 x 150 mm | $399.00 | View |
| LS-CTL-0516 | 2 ch, 120 W | 2 | 120 | 90 x 93.4 x 150 mm | $399.00 | View |
| LS-CTL-0522 | 2 ch, 200 W | 2 | 200 | 90 x 94.6 x 150 mm | $459.00 | View |
| LS-CTL-0514 | 4 ch, 65 W | 4 | 65 | 90 x 94.6 x 150 mm | $459.00 | View |
| LS-CTL-0520 | 2 ch, 200 W | 2 | 200 | 90 x 93.4 x 150 mm | $459.00 | View |
| LS-CTL-0515 | 4 ch, 65 W | 4 | 65 | 90 x 93.4 x 150 mm | $459.00 | View |
| LS-CTL-0519 | 4 ch, 120 W | 4 | 120 | 90 x 94.6 x 150 mm | $499.00 | View |
| LS-CTL-0517 | 4 ch, 120 W | 4 | 120 | 90 x 93.4 x 150 mm | $499.00 | View |
| LS-CTL-0523 | 4 ch, 200 W | 4 | 200 | 90 x 94.6 x 150 mm | $539.00 | View |
| LS-CTL-0521 | 4 ch, 200 W | 4 | 200 | 90 x 93.4 x 150 mm | $539.00 | View |
