ABS digital light source controller
  • ABS digital light source controller

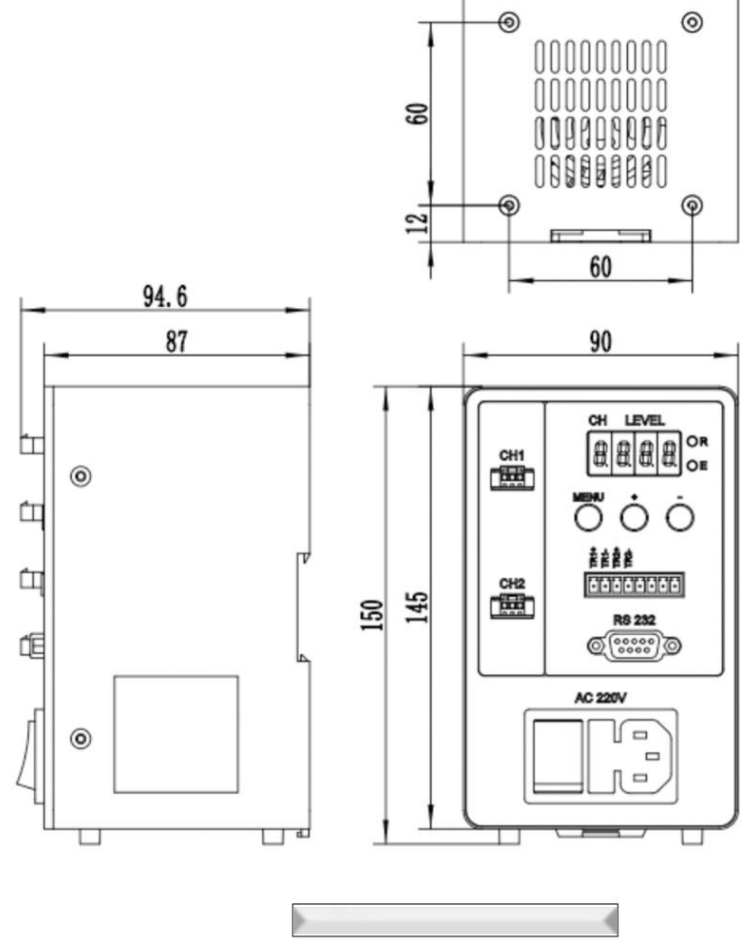

  • LS-CTL-0512 dimensions (mm)

Representative photo of this series

Light controllers

ABS digital light source controller, 4 ch, 65 W, 90 x 93.4 mm (LS-CTL-0515)

Model LS-CTL-0515

  • Channels4
  • Output24V
  • Total output65 W
  • Control9600~115200 bps optional
  • TriggerEdge + level trigger
$459.00

Ships in 2-3 weeks

0.65 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

ABS digital light source controller, 4 ch, 65 W, 90 x 93.4 mm (LS-CTL-0515)LS-CTL-0515

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Controller section 'ABS digital light source controller' of the light controller selection manual (cards P13-P16).

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CTL-0515
Working mode0: normally off, 1: on, 2: millisecond strobe, 3: microsecond strobe
Manual page codeP16
ControlDigital (display + buttons) / RS232

Interfaces and I/O

Communication baud rate9600~115200 bps optional
CommunicationRS232

Light

Connected light source type10mA~2.5A 24V power supply
Brightness levels255 levels
Luminous modeNormally on / normally off / strobe

Environment and compliance

Operating temperature-5~50 C

Electrical

Output voltage24V
Number of channels4
Built-in power supply65W
Max input voltageAC220V
Max output voltage24V
Max current per channel2.5A/3A
Overheat protection65W none, all others have
Short-circuit protectionYes
Millisecond strobe time1~999 ms
Microsecond strobe time1~999 us
Trigger modeEdge + level trigger
Driving modePWM
Total output (W)65

Mechanical

Dimension90 x 93.4 x 150 mm
MountingScrew or C45 rail installation
Shipping weight0.65 kg

Other models in the ABS digital light source controller (LS-CTL-S101) series

See all 12 models
ModelSize / key dataPriceAvailabilityLink
LS-CTL-0512 2 ch, 65 W $369.00 Ships in 2-3 weeks View
LS-CTL-0513 2 ch, 65 W $369.00 Ships in 2-3 weeks View
LS-CTL-0518 2 ch, 120 W $399.00 Ships in 2-3 weeks View
LS-CTL-0516 2 ch, 120 W $399.00 Ships in 2-3 weeks View
LS-CTL-0522 2 ch, 200 W $459.00 Ships in 2-3 weeks View
LS-CTL-0514 4 ch, 65 W $459.00 Ships in 2-3 weeks View
LS-CTL-0520 2 ch, 200 W $459.00 Ships in 2-3 weeks View
LS-CTL-0519 4 ch, 120 W $499.00 Ships in 2-3 weeks View
LS-CTL-0517 4 ch, 120 W $499.00 Ships in 2-3 weeks View
LS-CTL-0523 4 ch, 200 W $539.00 Ships in 2-3 weeks View
LS-CTL-0521 4 ch, 200 W $539.00 Ships in 2-3 weeks View
