Light controllers

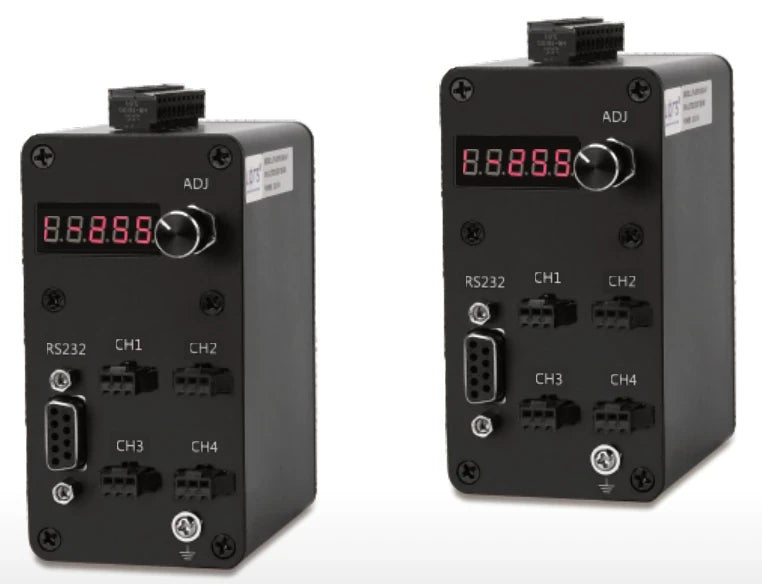

Digital control box (LS-CTL-S09)
- 14 models
- from $359.00
- Series LS-CTL-S09
The Digital control box (LS-CTL-S09) is a range of 14 light controllers from LumaSpec Vision, from $359.00. It comes in 8 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 2 ch, 60 W, 4 ch, 120 W, 4 ch, 200 W, 4 ch, 60 W, 4 ch, 80 W, 8 ch, 120 W, 8 ch, 200 W, 12 ch, 200 W
- Output
- Constant voltage 24 V
- Channels
- 2 channels, 4 channels, 8 channels, 12 channels
- Control
- Digital
- Feature
- Strobe
Features
- High cost-effective
- Constant on and strobe mode optional
- 0-255ms strobe lighting time can be set
- 10us short delay time, 256-level luminance adjustable
- Encoder knob: H1 constant on / H0 constant off; press knob for P mode (P1 exit strobe, P0 enter strobe)
- Overcurrent protection: display shows Er03, cleared by restart or reset command
- Support RS232 /LAN communication
- High trigger frequency, short response time 10us
All 14 models in the Digital control box (LS-CTL-S09)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-CTL-0061 | 2 ch, 60 W | 2 | 40W | 60W | $359.00 | View |
| LS-CTL-0062 | 2 ch, 60 W | 2 | 40W | 60W | $359.00 | View |
| LS-CTL-0063 | 4 ch, 60 W | 4 | 40W | 60W | $459.00 | View |
| LS-CTL-0064 | 4 ch, 60 W | 4 | 40W | 60W | $459.00 | View |
| LS-CTL-0065 | 4 ch, 80 W | 80W | 80W | $469.00 | View | |
| LS-CTL-0066 | 4 ch, 120 W | 4 | 60W | 120W | $489.00 | View |
| LS-CTL-0067 | 4 ch, 120 W | 4 | 60W | 120W | $489.00 | View |
| LS-CTL-0070 | 4 ch, 200 W | 4 | 60W | 200W | $539.00 | View |
| LS-CTL-0071 | 4 ch, 200 W | 4 | 60W | 200W | $539.00 | View |
| LS-CTL-0068 | 8 ch, 120 W | 8 | 60W | 120W | $669.00 | View |
| LS-CTL-0069 | 8 ch, 120 W | 8 | 60W | 120W | $669.00 | View |
| LS-CTL-0072 | 8 ch, 200 W | 8 | 60W | 200W | $709.00 | View |
| LS-CTL-0073 | 8 ch, 200 W | 8 | 60W | 200W | $709.00 | View |
| LS-CTL-0074 | 12 ch, 200 W | 12 | 60W | 200W | $889.00 | View |
