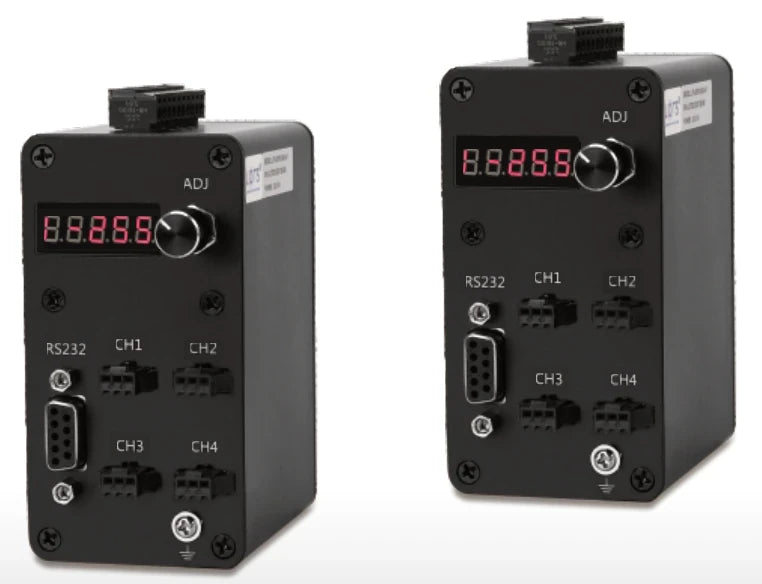

Representative photo of this series

Light controllers

Digital control box, 4 ch, 60 W, total output current 3.34 A (LS-CTL-0063)

Model LS-CTL-0063

Channels4
Output24V
InputDC 24V
Total output3.34A
ControlRS232

$459.00

In stock - ships the same business day (5 available, order by 2 PM ET)

0.5 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Digital control box, high cost-effective: constant on and strobe mode optional, 0-255ms strobe lighting time can be set, 10us short delay time, 256-level luminance adjustable.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CTL-0063
Working mode	Constant on / Trigger / Strobe
Constant on / off switch	H mode set by encoder knob: H1 constant on, H0 constant off
Product	Digital controller
Remark	Communication, external trigger, luminance level display and etc.
Control	Manual encoder knob adjustment, PC remote adjustment

Interfaces and I/O

Communication	RS232
Communication mode	RS232

Light

Luminance adjustment method	manual adjust by knob, PC remote adjusting
Luminance adjustment mode	PWM adjust
Luminance adjustment level	256 level

Environment and compliance

Operating environment	humidity 20%-85%RH (frost free), 0-50 C
Storage environment	humidity 20%-85%RH (frost free), 0-60 C

Computing

Memory function	data saved automatically when power off

Electrical

Input voltage	DC 24V
Total output current	3.34A
Baud rate	9600 bps
Trigger delay time	<=10us
External trigger voltage	5-24V
Input frequency range	50/60Hz
Output voltage	24V
External trigger frequency	Determined by the external trigger signal; with 50% duty ratio the max. effective trigger frequency is 4KHz
External trigger delay time	10us
Extenal trigger voltage	5-24V
Total output power	60W
One way max. output power	40W
Number of channels	4

Mechanical

Mounting	DIN guide rail mounting base
Mounting holes	4-M3 (the 4 feet can be removed and used as mounting holes)
Shipping weight	0.50 kg

Downloads

Datasheet (PDF)LS-CTL-0063 · 1.3 MB

Features

High cost-effective
Constant on and strobe mode optional
0-255ms strobe lighting time can be set
10us short delay time, 256-level luminance adjustable
Encoder knob: H1 constant on / H0 constant off; press knob for P mode (P1 exit strobe, P0 enter strobe)
Overcurrent protection: display shows Er03, cleared by restart or reset command
Support RS232 /LAN communication
High trigger frequency, short response time 10us
2-12 channels for optional
Power off saving function
Have a 12V 500mA output to supply camera
