Light controllers

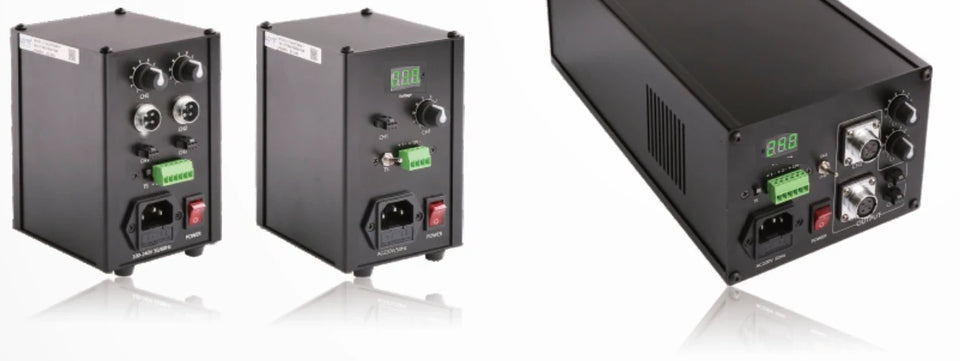

Analog controller (LS-CTL-S03)
- 15 models
- from $199.00
- Series LS-CTL-S03
The Analog controller (LS-CTL-S03) is a range of 15 light controllers from LumaSpec Vision, from $199.00. It comes in 15 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 1 ch, 1000 W, 1 ch, 120 W, 1 ch, 1500 W, 1 ch, 200 W, 1 ch, 24 W, 1 ch, 400 W, 1 ch, 60 W, 2 ch, 120 W, 2 ch, 24 W, 2 ch, 400 W, 2 ch, 60 W, 4 ch, 24 W, 4 ch, 60 W, 6 ch, 60 W, 8 ch, 120 W
- Output
- Constant voltage 24 V
- Channels
- 1 channel, 2 channels, 4 channels, 6 channels, 8 channels
- Control
- Analog
- Feature
- Constant current
Features
- Compact dimension, easy to install
- Luminance stepless adjustment
- Short-circuit protection
- External trigger function
- Voltage display function
- Clear operation mark
- 12V 500mA output to supply other devices
- High level and low level trigger optional (model dependent)
All 15 models in the Analog controller (LS-CTL-S03)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-CTL-0009 | 1 ch, 24 W | AC 100-240V | 1 | 1 | $199.00 | View |
| LS-CTL-0012 | 1 ch, 60 W | AC 100-240V | 1 | 1 | $219.00 | View |
| LS-CTL-0010 | 2 ch, 24 W | AC 100-240V | 2 | 2 | $239.00 | View |
| LS-CTL-0013 | 2 ch, 60 W | AC 100-240V | 2 | 2 | $249.00 | View |
| LS-CTL-0016 | 1 ch, 120 W | AC 100-240V | 1 | 1 | $249.00 | View |
| LS-CTL-0017 | 2 ch, 120 W | AC 100-240V | 2 | 2 | $289.00 | View |
| LS-CTL-0019 | 1 ch, 200 W | AC 100-240V | 1 | 1 | $289.00 | View |
| LS-CTL-0011 | 4 ch, 24 W | AC 100-240V | 4 | 4 | $299.00 | View |
| LS-CTL-0014 | 4 ch, 60 W | AC 100-240V | 4 | 4 | $319.00 | View |
| LS-CTL-0015 | 6 ch, 60 W | AC 100-240V | 6 | 6 | $389.00 | View |
| LS-CTL-0018 | 8 ch, 120 W | AC 100-240V | 8 | 8 | $489.00 | View |
| LS-CTL-0020 | 1 ch, 400 W | AC 200-240V | 1 | 1 | $549.00 | View |
| LS-CTL-0021 | 2 ch, 400 W | AC 200-240V | 2 | 2 | $589.00 | View |
| LS-CTL-0022 | 1 ch, 1000 W | AC 90-264V | 1 | $889.00 | View | |
| LS-CTL-0023 | 1 ch, 1500 W | AC 90-264V | 1 | $1,189.00 | View |
