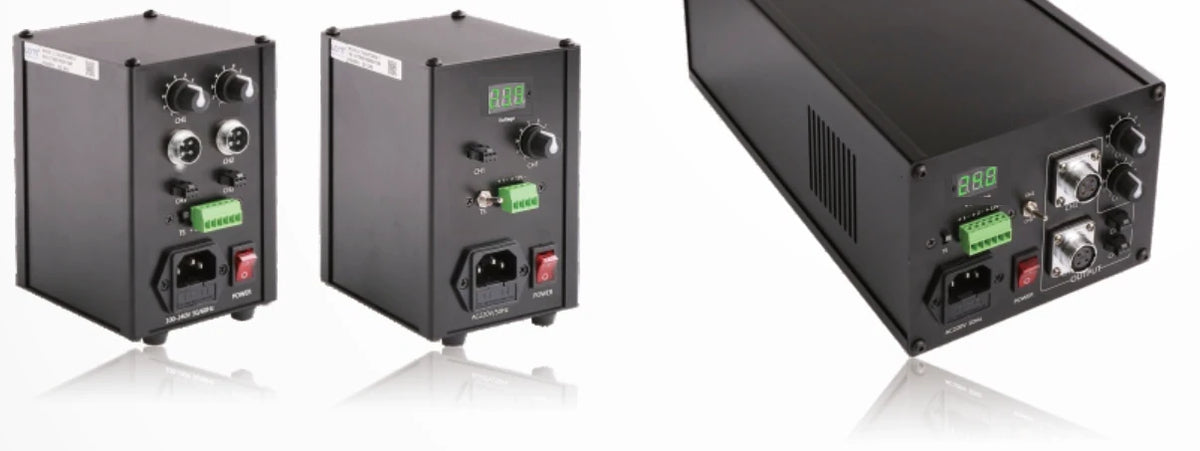

Representative photo of this series
Light controllers
Analog controller, 4 ch, 60 W, 24 W (LS-CTL-0014)
Model LS-CTL-0014
- Channels4
- Output12-24V
- InputAC 100-240V
- Total output60W
$319.00
Ships in 2-3 weeks
0.75 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Analog controller: compact, stepless luminance adjustment, short-circuit protection, external trigger, voltage display and a 12V 500mA output for other devices.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTL-0014 |
|---|---|
| Normal on/normal closed mode switch | built-in (toggle switch TS) |
| Constant on / off switch | Switch by toggle switch TS |
| Product | Analog controller |
Light
| Luminance control method | manual adjusting knob |
|---|---|
| Luminance control level | stepless adjustment |
| Luminance control mode | Constant-voltage |
| Luminance adjustment method | Manual adjusting knob |
| Luminance adjustment level | Stepless adjustment |
| Luminance adjustment mode | Constant voltage |
Electrical
| Input frequency | 50/60Hz |
|---|---|
| Output voltage range | 12-24V |
| Addition output voltage | 12V 500mA (power supply to camera; never reverse-connect) |
| Input frequency range | 50/60Hz |
| Additional output voltage | 12V output (can power supply to camera) |
| Channels | 4 |
| Output voltage | 12-24V |
| One way max. output power | 24W |
| Total output power | 60W |
| External trigger support | Y |
| External trigger voltage | 0-1.5V |
| Input voltage | AC 100-240V |
| Number of channels | 4 |
| Output voltage adjustment | 24V |
Mechanical

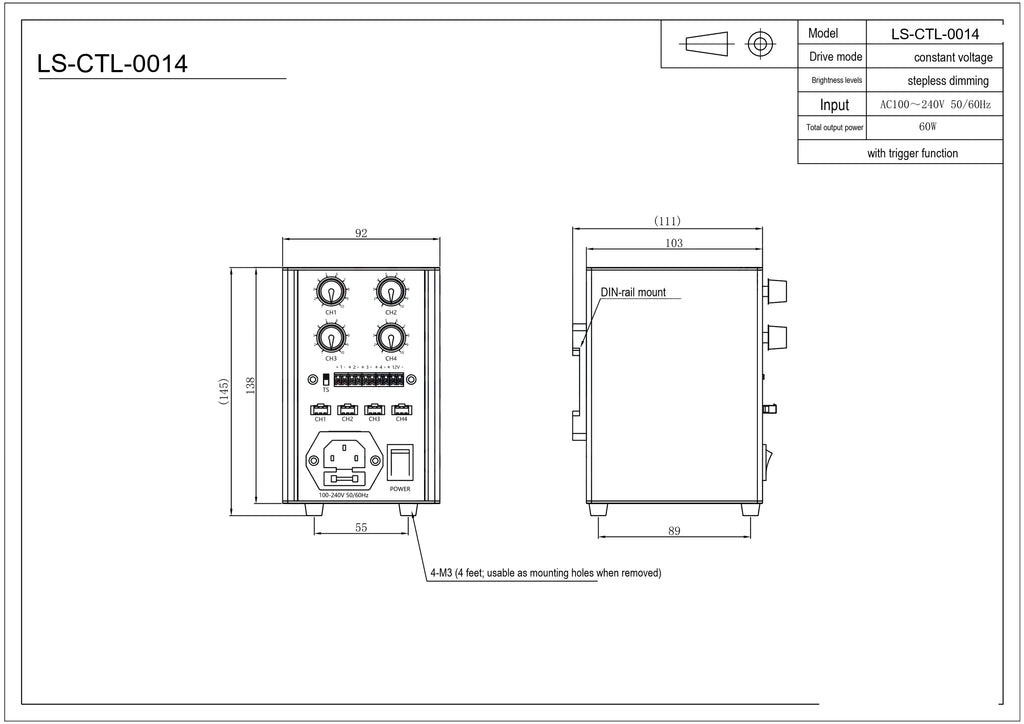

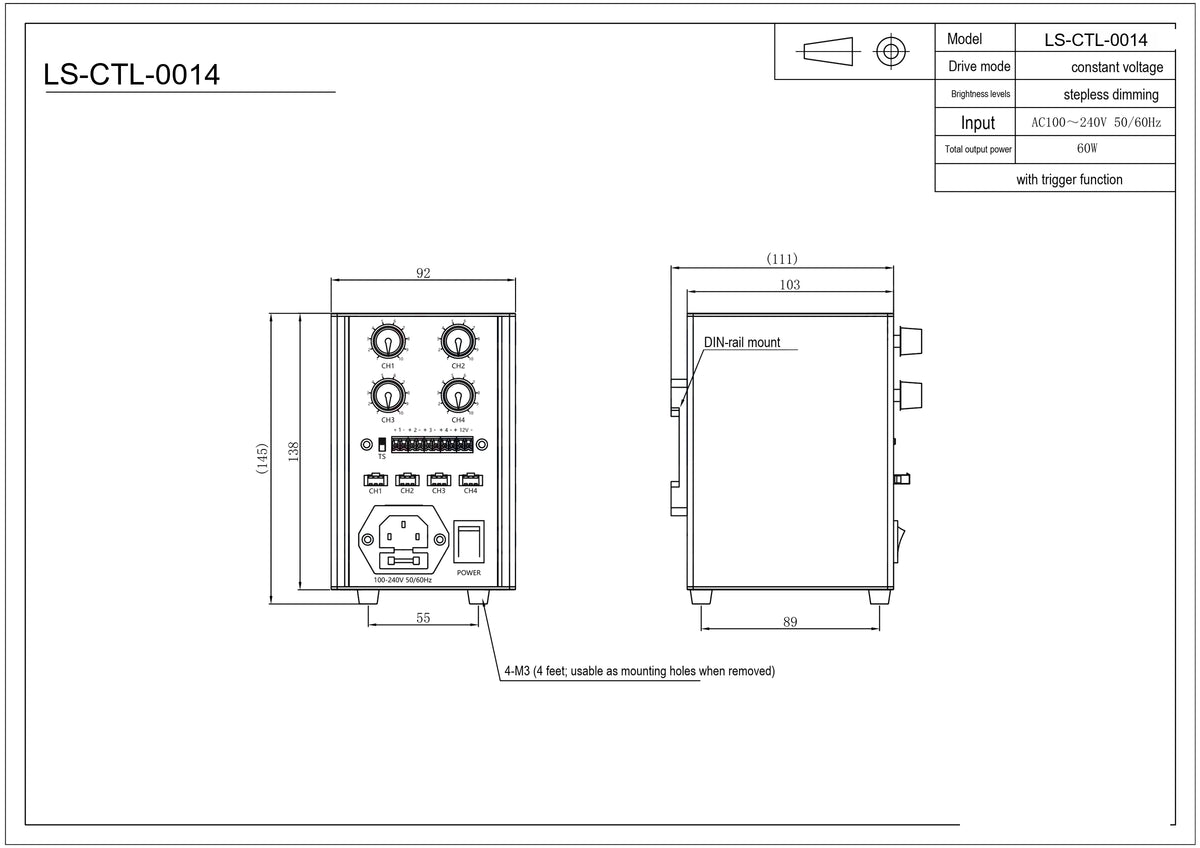

| Mounting holes | 4-M3 (the 4 feet can be removed and used as mounting holes) |
|---|---|
| Mounting | DIN rail mount |
| Shipping weight | 0.75 kg |
Other models in the Analog controller (LS-CTL-S03) series
See all 15 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-CTL-0009 | 1 ch, 24 W | $199.00 | Ships in 2-3 weeks | View |
| LS-CTL-0012 | 1 ch, 60 W | $219.00 | Ships in 2-3 weeks | View |
| LS-CTL-0010 | 2 ch, 24 W | $239.00 | Ships in 2-3 weeks | View |
| LS-CTL-0013 | 2 ch, 60 W | $249.00 | Ships in 2-3 weeks | View |
| LS-CTL-0016 | 1 ch, 120 W | $249.00 | Ships in 2-3 weeks | View |
| LS-CTL-0017 | 2 ch, 120 W | $289.00 | Ships in 2-3 weeks | View |
| LS-CTL-0019 | 1 ch, 200 W | $289.00 | Ships in 2-3 weeks | View |
| LS-CTL-0011 | 4 ch, 24 W | $299.00 | Ships in 2-3 weeks | View |
| LS-CTL-0015 | 6 ch, 60 W | $389.00 | Ships in 2-3 weeks | View |
| LS-CTL-0018 | 8 ch, 120 W | $489.00 | Ships in 2-3 weeks | View |
| LS-CTL-0020 | 1 ch, 400 W | $549.00 | Ships in 2-3 weeks | View |
| LS-CTL-0021 | 2 ch, 400 W | $589.00 | Ships in 2-3 weeks | View |
| LS-CTL-0022 | 1 ch, 1000 W | $889.00 | Ships in 2-3 weeks | View |
| LS-CTL-0023 | 1 ch, 1500 W | $1,189.00 | Ships in 2-3 weeks | View |
