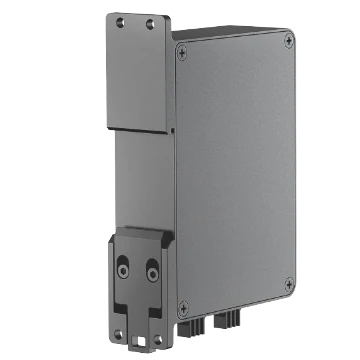

General-purpose light controller, Analog constant voltage, PoE Ethernet port, 24W, 2 channels (LS-CTL-0112)
  • General-purpose light controller, Analog constant voltage, PoE Ethernet port, 24W, 2 channels (LS-CTL-0112)

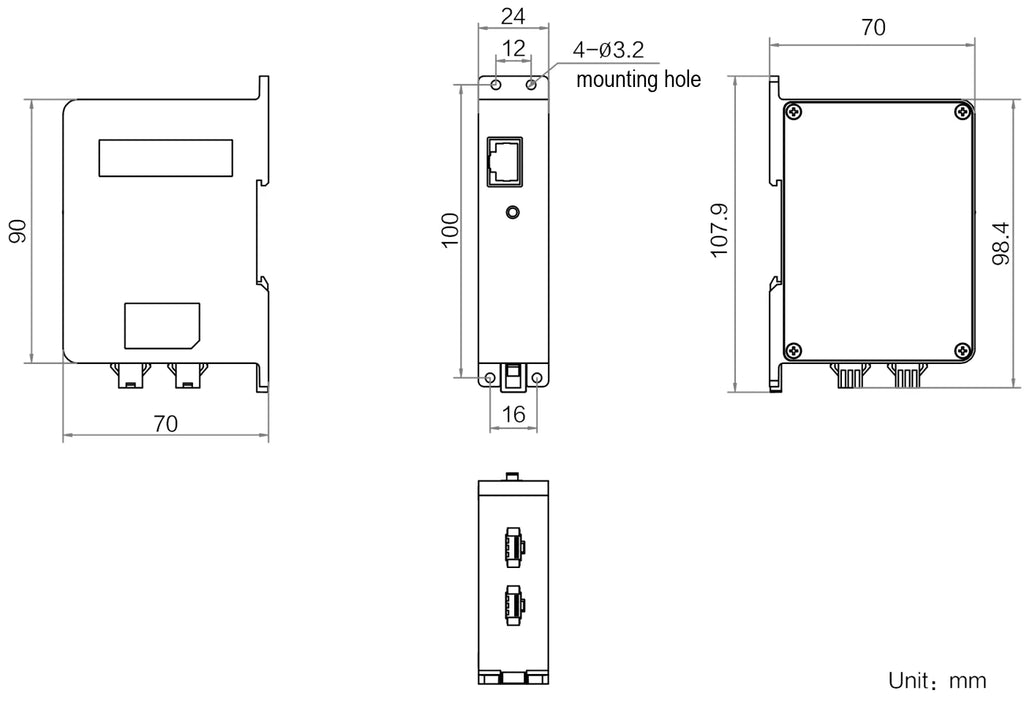

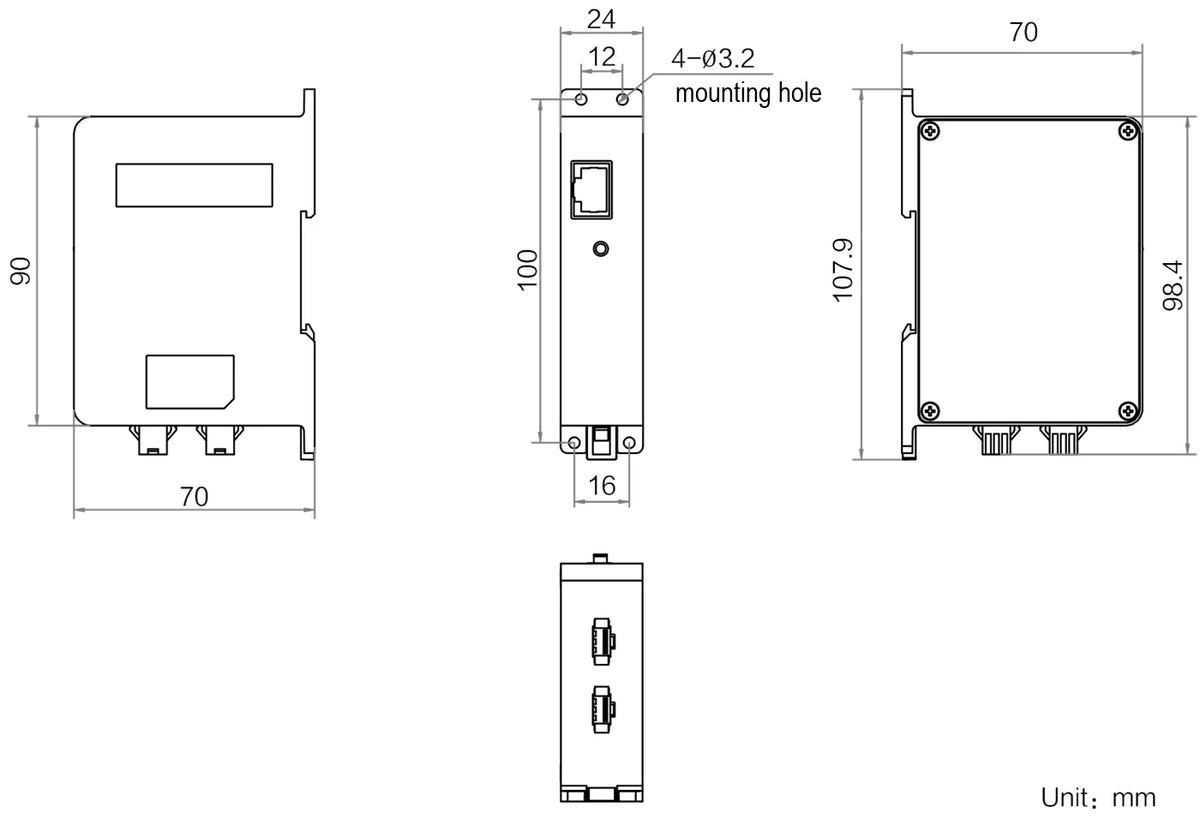

  • LS-CTL-0112 dimensions (mm)

Light controllers

General-purpose light controller, Analog constant voltage, PoE Ethernet port, 24W, 2 channels (LS-CTL-0112)

Model LS-CTL-0112

  • Output24 VDC
  • Input37 to 57 VDC (PoE)
  • TriggerInternal trigger supported
  • Channels2 channels
$179.00

Ships in 2-3 weeks

0.31 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

General-purpose light controller, Analog constant voltage, PoE Ethernet port, 24W, 2 channels (LS-CTL-0112)LS-CTL-0112

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

General-purpose light controller, Analog constant voltage, PoE Ethernet port, 24W, 2 channels. PoE power, compliant with IEEE 802.3af/at Constant-voltage linear output, plug and play

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CTL-0112
Lighting modeContinuous, strobe
Dimming modeSoftware (Ethernet port)
Lighting response time<550 μs
Cooling modeNatural cooling

Interfaces and I/O

Applicable productRing light, Bar light, Flat light, Coaxial light, etc.
Power supply interfaceRJ45 port
Digital I/ONot supported
Lighting output connectorSMR-03V-BC

Environment and compliance

TemperatureWorking temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity20% RH to 85% RH (no condensation)
Ingress protectionIP30
CertificationCE, KC

Electrical

Drive modeAnalog, Constant voltage
Channel2
Trigger modeInternal trigger supported
Input voltage37 to 57 VDC (PoE)
Input current0.5 A ~ 0.7 A
Output current0.8 A max
Output power20 W max
Output current for each channel0.8 A max
Trigger inNot supported
Output voltage24 VDC

Mechanical

Dimension24 mm × 70 mm × 106 mm
Shell materialAluminum alloy
WeightApprox. 150 g
Shipping weight (estimated)0.31 kg
