Light controllers

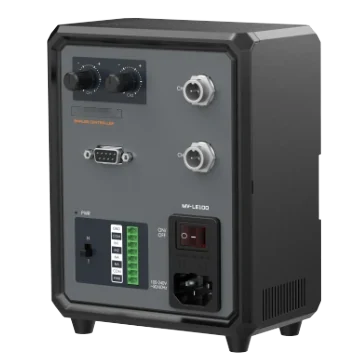

Analog Light Controller, 2 channel, 200W/24V (LS-CTL-0116)
Model LS-CTL-0116
- Output24 VDC
- Input100 VAC to 240 VAC, 50 Hz/60 Hz
- TriggerExternal trigger
- Channels2 channels
$279.00
Ships in 2-3 weeks
1.25 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Analog Light Controller, 2 channel, 200W/24V. Adopts constant voltage control and supports infinitely variable brightness. Adopts knob control on control panel, and plug and play.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTL-0116 |
|---|---|
| Dimming mode | Control panel (knob), software (serial port) |
| Cooling mode | Fan cooling |
| Lighting mode | Continuous, strobe |
| Lighting response time | < 100 μs |
Interfaces and I/O
| Lighting output connector | 12M-2F |
|---|---|
| Power supply interface | C13 220 VAC interface |
| Digital I/O | Opto-isolated input × 2 |
| Applicable product | Ring light, bar light, flat light, coaxial light, etc.; Applicable light interface:; 12M-2A |
Environment and compliance
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
|---|---|
| Humidity | 20% RH to 85% RH (no condensation) |
| Ingress protection | IP30 |
| Certification | CE, KC |
Electrical
| Trigger mode | External trigger |
|---|---|
| Output current for each channel | Max. 6 A |
| Input current | 1.8 A (115 VAC); 1 A (230 VAC) |
| Input voltage | 100 VAC to 240 VAC, 50 Hz/60 Hz |
| Output current | Max. 8.4 A |
| Output power | Max. 200 W |
| Output voltage | 24 VDC |
| Channel | 2-channel |
| Drive mode | Analog, constant voltage |
| Trigger in | High level 4.5 VDC to 24 VDC, low level 0 VDC to 2 VDC |
Mechanical

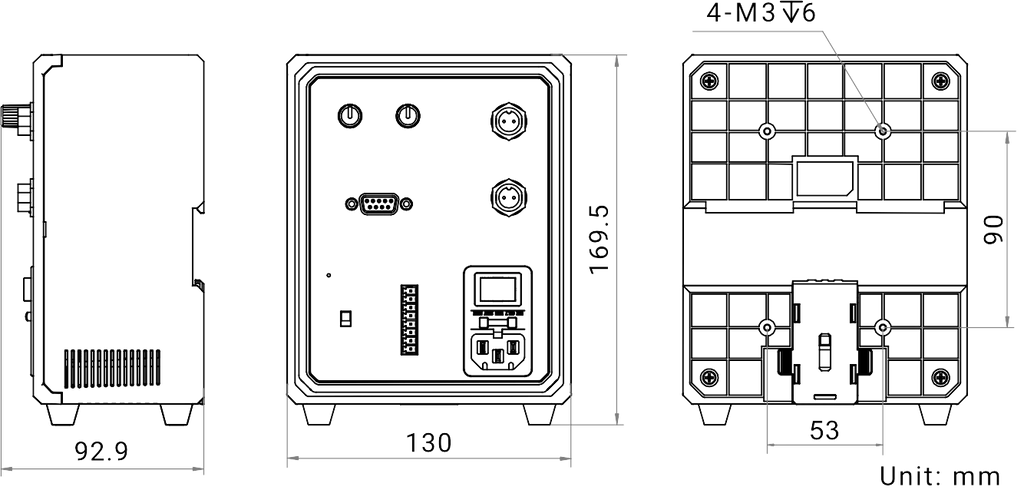

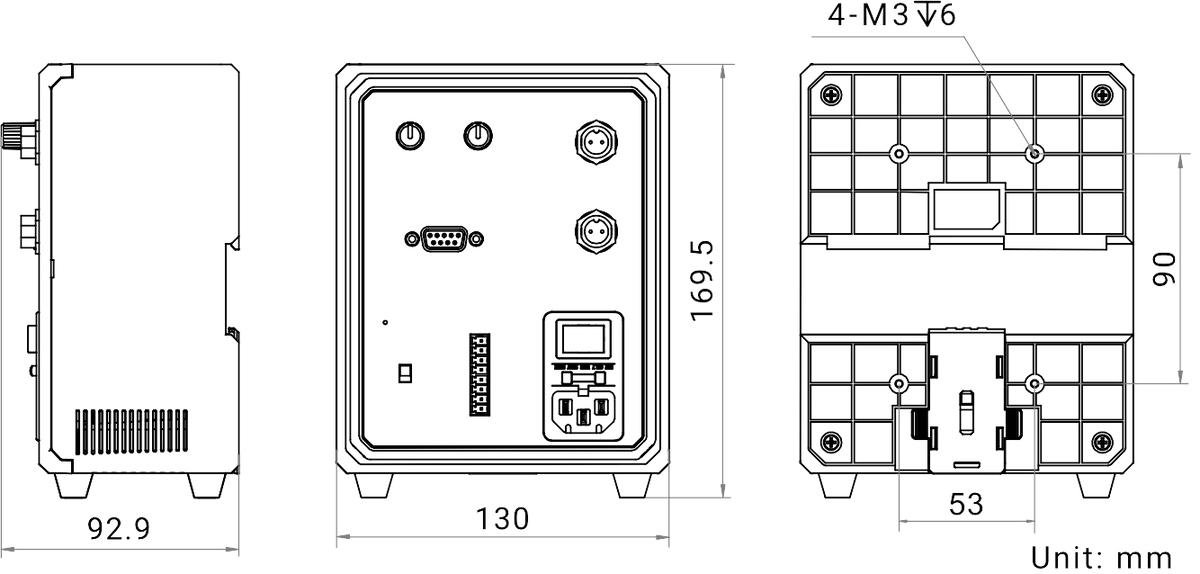

| Dimension | 130 mm × 92.9 mm × 169.5 mm (5.1" × 3.7" × 6.7") |
|---|---|
| Shell material | Plastic |
| Weight | Approx. 820 g (1.8 lb.) |
| Shipping weight (estimated) | 1.25 kg |
