Light controllers

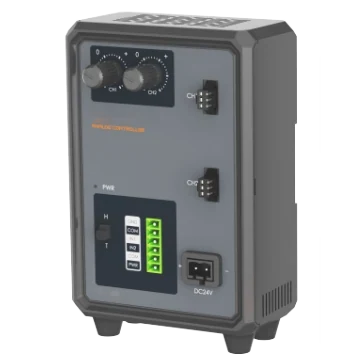

Analog Light Controller, 2 channel, 48W/24V (LS-CTL-0113)
Model LS-CTL-0113
- Output24 VDC
- Input24 VDC
- TriggerExternal trigger
- Channels2 channels
$149.00
Ships in 2-3 weeks
0.43 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Analog Light Controller, 2 channel, 48W/24V. Adopts constant voltage control and supports infinitely variable brightness. Adopts knob control on control panel, and plug and play.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTL-0113 |
|---|---|
| Dimming mode | Control panel (knob) |
| Lighting mode | Continuous, strobe |
| Lighting response time | < 550 μs |
| Cooling mode | Fan cooling |
Interfaces and I/O
| Lighting output connector | SMR-03V-BC |
|---|---|
| Power supply interface | 5.08 mm × 2 terminal block |
| Digital I/O | Opto-isolated input × 2 |
| Applicable product | Ring light, bar light, flat light, coaxial light, etc. |
Environment and compliance
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
|---|---|
| Humidity | 20% RH to 85% RH (no condensation) |
| Ingress protection | IP30 |
| Certification | CE, KC |
Electrical
| Trigger mode | External trigger |
|---|---|
| Output current for each channel | Max. 1 A |
| Input current | 2.5 A |
| Input voltage | 24 VDC |
| Output current | Max. 2 A |
| Output power | Max. 48 W |
| Output voltage | 24 VDC |
| Channel | 2-channel |
| Drive mode | Analog, constant voltage |
| Trigger in | High level 4.5 VDC to 24 VDC, low level 0 VDC to 2 VDC |
Mechanical

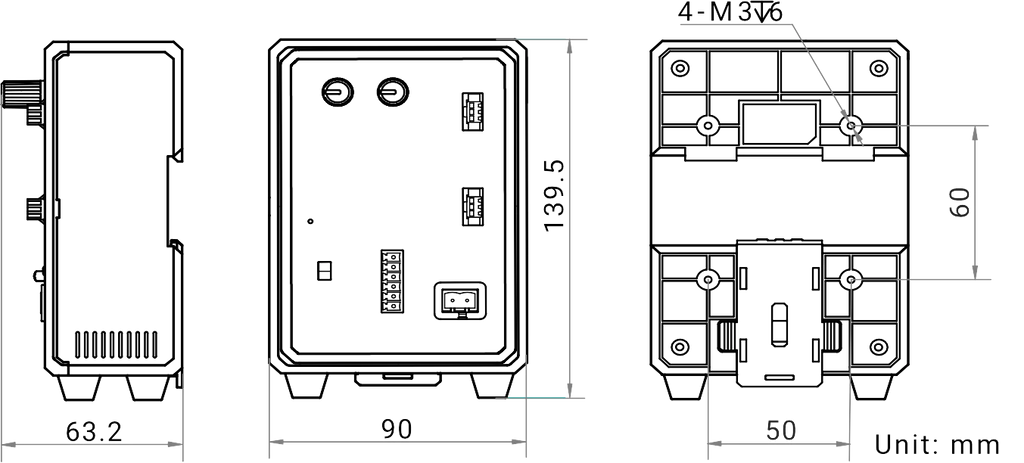

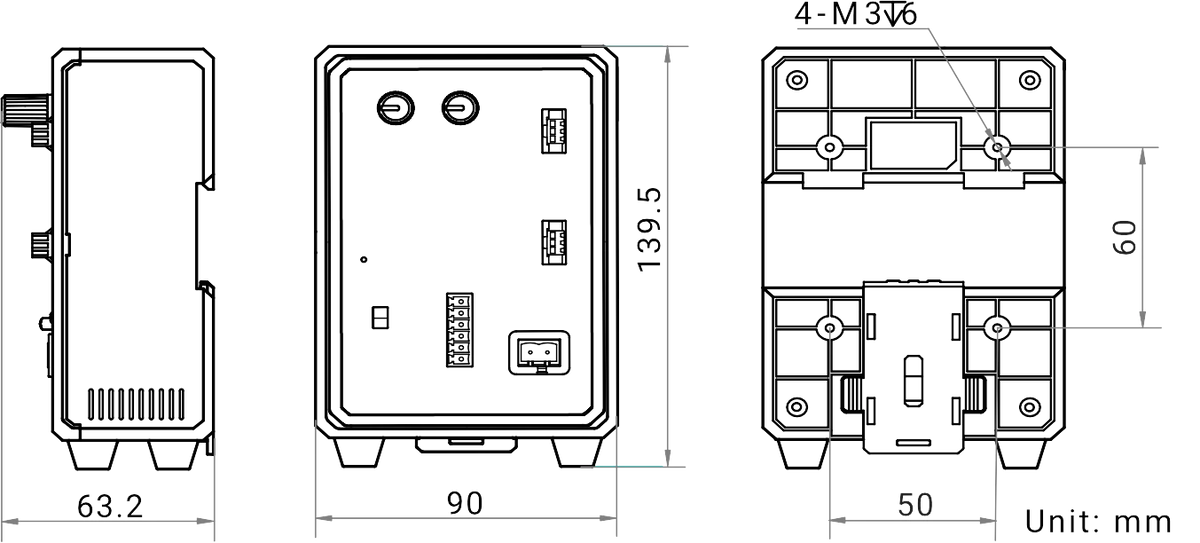

| Dimension | 90 mm × 63.2 mm × 139.5 mm (3.5" × 2.5" × 5.5") |
|---|---|
| Shell material | Plastic |
| Weight | Approx. 235 g (0.5 lb.) |
| Shipping weight (estimated) | 0.43 kg |
