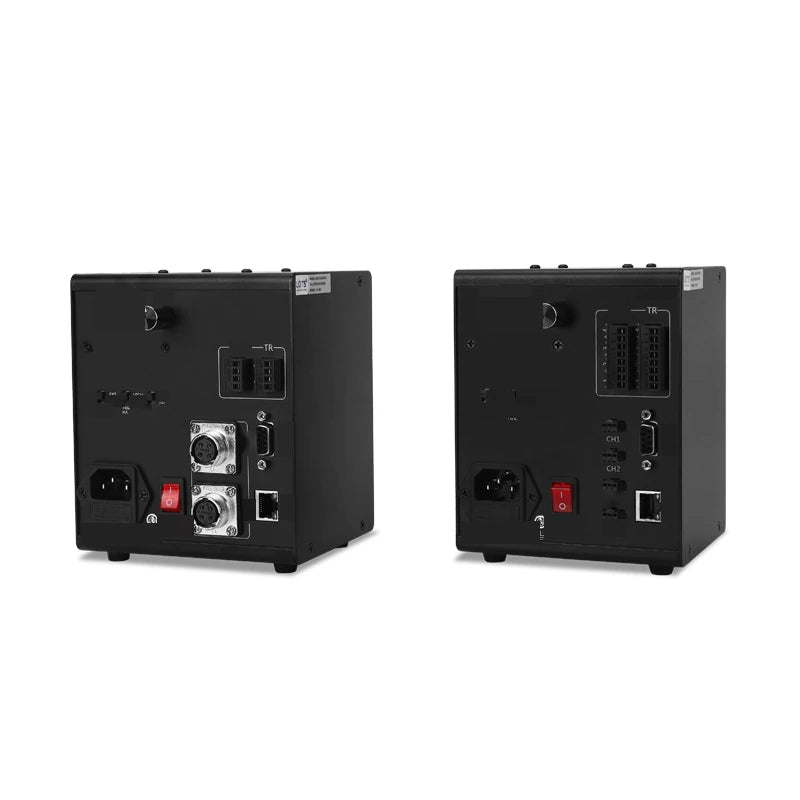

Representative photo of this series
Light controllers
Brighten strobe controller, 2 ch (LS-CTL-0083)
Model LS-CTL-0083
- Channels2
- Output48V
- Input100-240VAC
- ControlRS232/LAN
$649.00
Ships in 2-3 weeks
0.5 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
12us fast trigger response. Internal fixed frequency self-triggering function, 0-100% lighting time adjustable. Brighten 2-10 times instantly, pulse width 0-999us adjustable.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTL-0083 |
|---|---|
| Working mode | Internal self-triggering mode / external trigger mode |
| Lighting time adjustment method | Manual adjust by encoder, PC remote adjustment |
| Lighting delay time adjustable | 0-999us (adjustable) |
| Fixed lighting delay time | 12us |
| Product | LS-CTL-S12 Series Brighten strobe controller |
| The time of lighting on | 0-999us(adjustable) |
| Duration of light on | 0-999us (adjustable) |
Interfaces and I/O
| Communication method | RS232/LAN |
|---|
Environment and compliance
| Operating environment | Temperature 0 to 50°C, humidity 20 to 85%RH (non-condensing) |
|---|---|
| Storage environment | Temperature 0 to 60°C, humidity 20 to 85%RH (non-condensing) |
Computing
| Memory function | Brightness parameters can be set to not be saved or to be automatically saved when power is cut off |
|---|
Electrical
| Baud rate | Default 19200bps |
|---|---|
| Input voltage | 100-240VAC |
| Input frequency range | 50/60Hz |
| Output voltage | 48V |
| Drive mode | Brighten (overdrive) |
| Trigger signal filtering time settable | 0-999us/1-999ms (adjustable) |
| Trigger signal | Rising edge or falling edge trigger settable (5-24V) |
| Extenal trigger voltage | 5-24V rising edge trigger or falling edge trigger |
| Number of channels | 2 |
| Support trigger frequency F= External trigger frequency | F≤200HZ |
| Internal trigger frequency | 1-200Hz (adjustable) |
Mechanical
| Mounting holes | 4-M3 (the 4 feet can be removed and used as mounting holes) |
|---|---|
| Mounting | DIN rail mount |
| Shipping weight | 0.50 kg |
