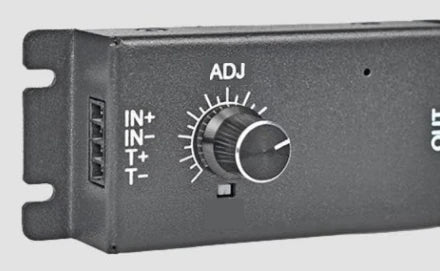

Representative photo of this series

Light controllers

Analog controller, 2 ch, 40 W (LS-CTL-0151)

Model LS-CTL-0151

Channels2
Output24V
Total output40 W
ControlAnalog knob (stepless)
TriggerLevel Trigger

$189.00

Ships in 2-3 weeks

0.5 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Controller section 'Analog controller' of the light controller selection manual (cards P55-P59).

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CTL-0151
Working mode	Constant on mode, constant off mode
Feature 1	Simulated constant current control
Feature 2	Rotary knob for stepless linear adjustment of brightness
Manual page code	P59
Control	Analog knob (stepless)

Light

Brightness level	Knob stepless linear adjustment
Connection light source type	24V light source
Luminous mode	Constant Brightness

Environment and compliance

Operating temperature	-5~50°C

Electrical

Maximum output current of single channel	1A
Maximum input voltage	220VAC
Maximum output voltage	24V
Overheat protection	NO
Short-circuit protection	NO
Trigger mode	Level Trigger
Driving mode	Constant Voltage
Output voltage	24V
Number of channels	2
Built-in power supply	40W
Max current per channel	1A
Trigger	5~24V trigger
Total output (W)	40

Mechanical

Shipping weight	0.50 kg

Other models in the Analog controller (LS-CTL-S29) series

See all 4 models

Model	Size / key data	Price	Availability	Link
LS-CTL-0152	2 ch, 65 W	$209.00	Ships in 2-3 weeks	View
LS-CTL-0153	4 ch, 65 W	$259.00	Ships in 2-3 weeks	View
LS-CTL-0154	4 ch, 120 W	$289.00	Ships in 2-3 weeks	View
