2-channel 24 V digital LED light controller, 20 W, RS-232 (LS-CTL-0476)

Model LS-CTL-0476

  • Channels2
  • Output24 V
  • Total output≤20 W
  • ControlTypically up to 15 m Up to 100 m
  • TriggerPositive/Negative
$165.00

Ships in 3-4 weeks

0.5 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

2-channel 24 V digital LED light controller, 20 W, RS-232 (LS-CTL-0476)LS-CTL-0476

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Digital LED light controller for powering, dimming and strobing LED lights. 24 V supply; 2 output channel(s).

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CTL-0476
PMW Frequency47~63 Hz
SurfacingSpray-paint

Interfaces and I/O

ConnectorSMP-03 V
Communication distanceTypically up to 15 m Up to 100 m
Control interfacePoint-to-point connection Multi-device networking via Ethernet switch

Light

BrightnessButton /Host Computer Remote Control

Environment and compliance

Operating temperature0 ~ 40 °C
Storage temperature-10 ~ 50 °C

Electrical

Output voltage24 V
Supply voltage24 V
PowerTotal:20 W Single:20 W
Channels2
Output TypePWM
Output Adjustable Range0 ~ 100%
Total Output Power≤20 W
Single Output Maximum Power≤20 W
Trigger modePositive/Negative
Trigger input5~24 V
Drive modeConstant Voltage

Mechanical

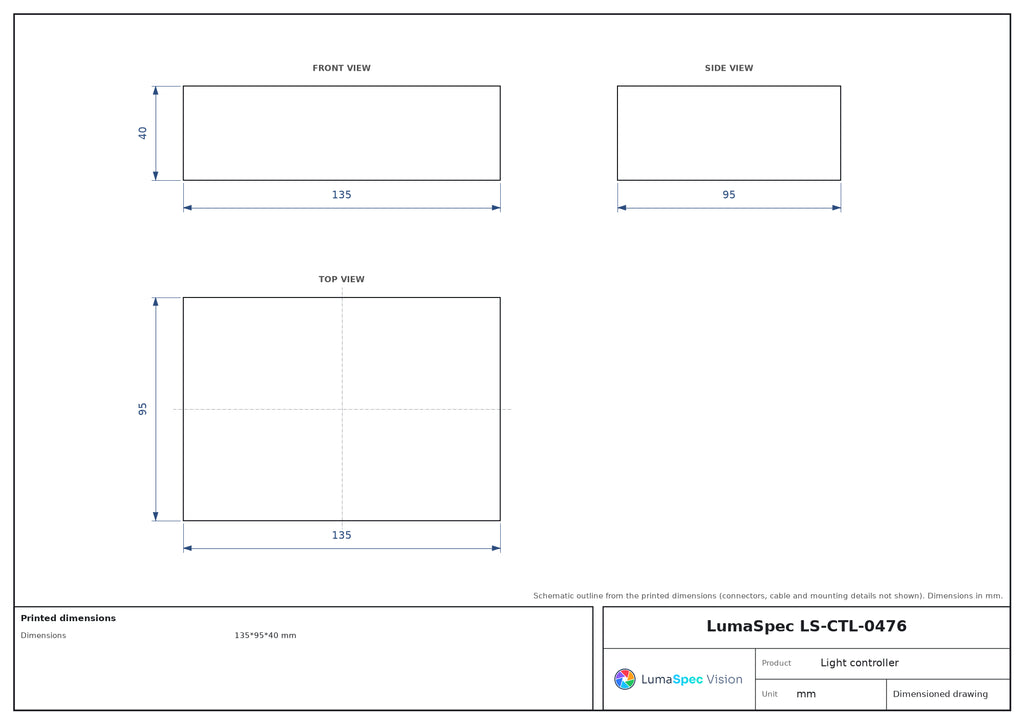

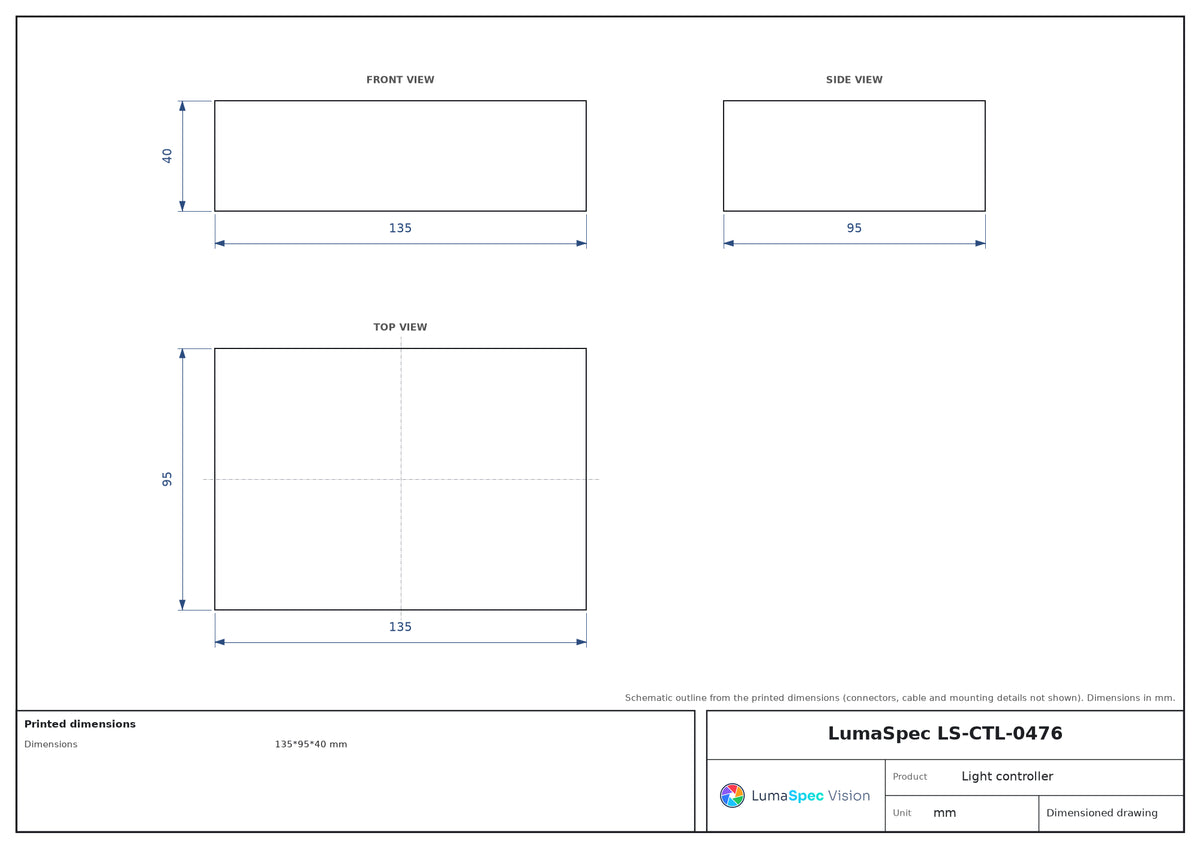

Dimensions (mm)135*95*40 mm
Shipping weight0.50 kg

LS-CTL-0476

See this component from every angle.

Representative component form. Housing dimensions or proportions are inferred from comparable components; this is not a dimensioned product model. Use the printed specifications and drawing.

Explore the visual library
LS-CTL-0476 — Light controllers, View 1 Concept illustration

FROM THE PRINTED SPECIFICATIONS

Output voltage
24 V
Channels
2
Connector
SMP-03 V

Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
