Light controllers
2-channel 5 V digital LED light controller, 6 W, RS-232 (LS-CTL-0471)
Model LS-CTL-0471
- Channels2
- Output5 V
- Total output≤6 W, 12 W also available if requested
- ControlTypically up to 15 m Up to 100 m
- TriggerPositive/Negative
$120.00
Ships in 3-4 weeks
0.5 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Digital LED light controller for powering, dimming and strobing LED lights. 5 V supply; 2 output channel(s).
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTL-0471 |
|---|---|
| PMW Frequency | 47~63 Hz |
| Surfacing | Spray-paint |
Interfaces and I/O
| Connector | SMP-03 V |
|---|---|
| Communication distance | Typically up to 15 m Up to 100 m |
| Control interface | Point-to-point connection Multi-device networking via Ethernet switch |
Light
| Brightness | Button /Remote Control |
|---|
Environment and compliance
| Operating temperature | 0 ~ 40 °C |
|---|---|
| Storage temperature | -10 ~ 50 °C |
Electrical
| Output voltage | 5 V |
|---|---|
| Supply voltage | 5 V |
| Power | Total:6 W/Single l :3 W Expandable: Total:12 W/Single:6 W |
| Channels | 2 |
| Output Type | Constant Current |
| Output Adjustable Range | 0 ~ 100% |
| Total Output Power | ≤6 W, 12 W also available if requested |
| Single Output Maximum Power | ≤3 W, 6 W also available if requested |
| Trigger mode | Positive/Negative |
| Trigger input | 5~24 V |
| Drive mode | Constant Current |
Mechanical

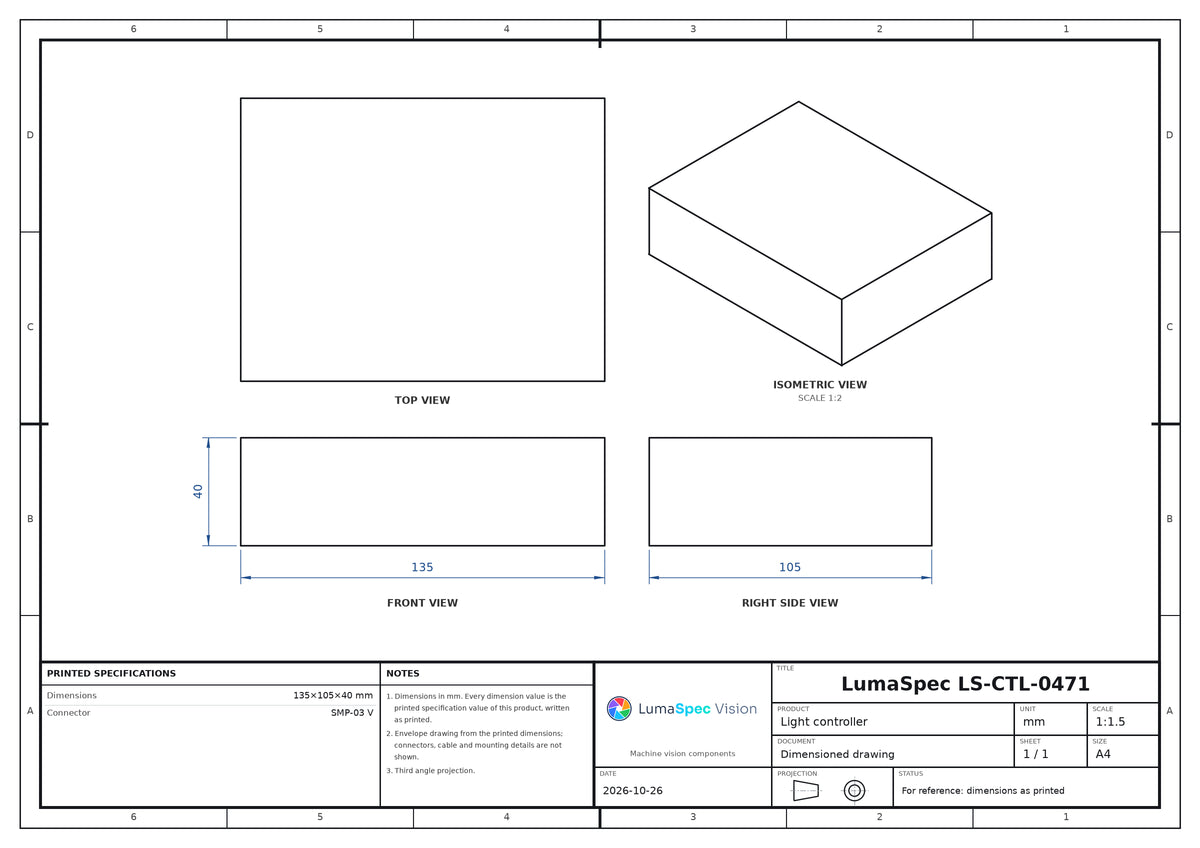

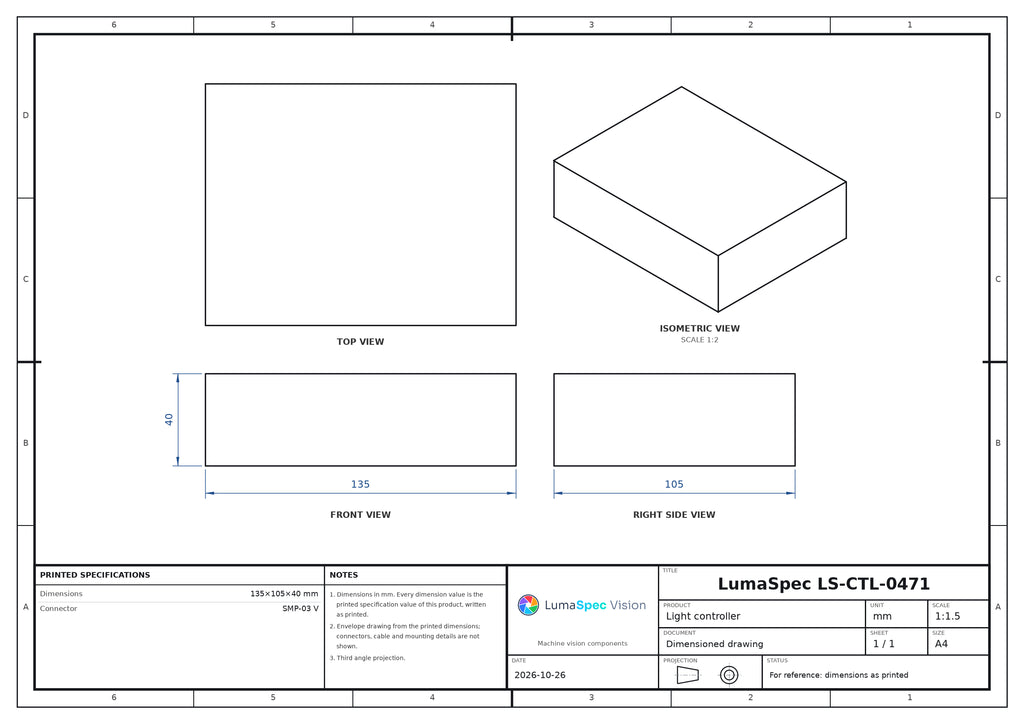

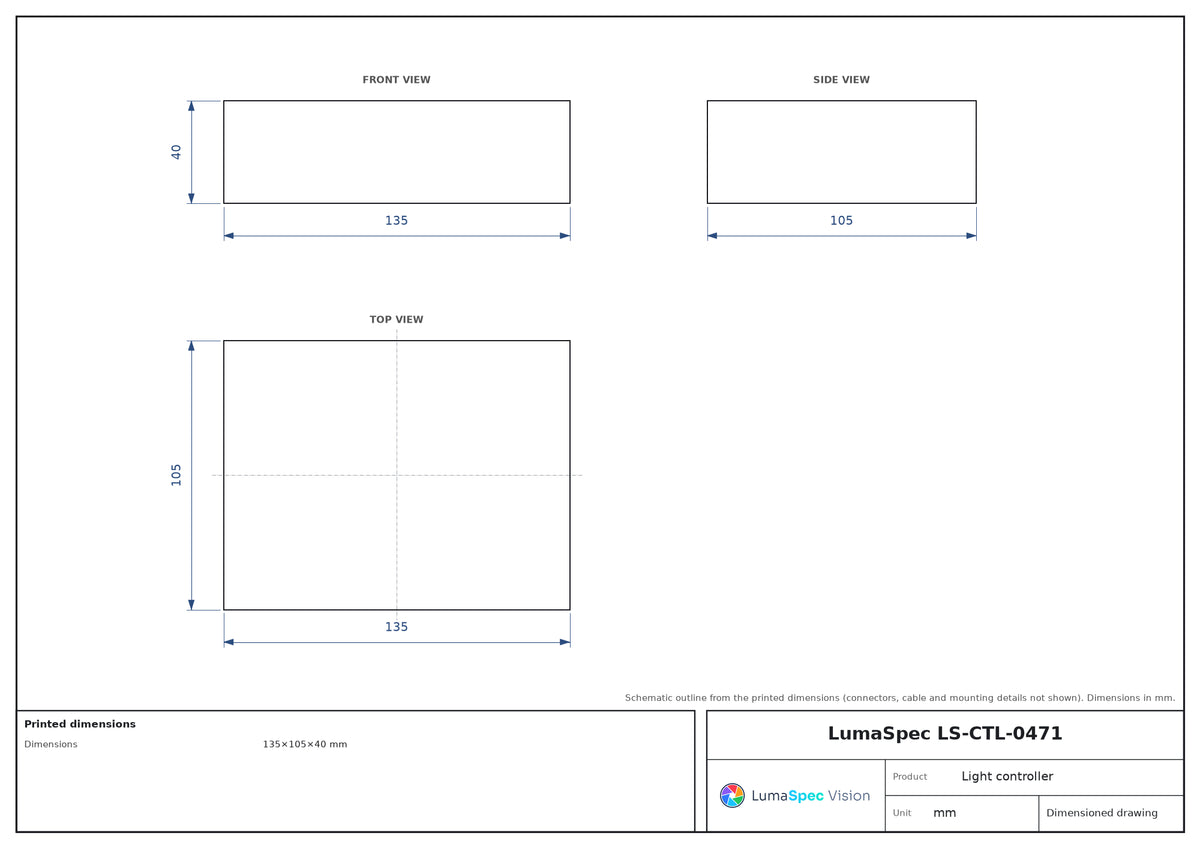

| Dimensions (mm) | 135×105×40 mm |
|---|---|
| Shipping weight | 0.50 kg |
LS-CTL-0471
See this component from every angle.
Representative component form. Housing dimensions or proportions are inferred from comparable components; this is not a dimensioned product model. Use the printed specifications and drawing.
Concept illustration
FROM THE PRINTED SPECIFICATIONS
- Output voltage
- 5 V
- Channels
- 2
- Connector
- SMP-03 V
Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
