Light controller (series view)
  • Light controller (series view)
  • Light controller (series view)
  • 4-channel 24 V digital LED light controller, 150 W, RS-232

Rendered illustration: the actual product may differ in appearance.

Light controllers

4-channel 24 V digital LED light controller, 150 W, RS-232 (LS-CTL-0480)

Model LS-CTL-0480

  • Channels4
  • Output24 V
  • Total output≤150 W
  • ControlTypically up to 15 m Up to 100 m
  • TriggerPositive/Negative
$250.00

Ships in 3-4 weeks

0.5 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

4-channel 24 V digital LED light controller, 150 W, RS-232 (LS-CTL-0480)LS-CTL-0480

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Digital LED light controller for powering, dimming and strobing LED lights. 24 V supply; 4 output channel(s).

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CTL-0480
PMW Frequency47~63 Hz
SurfacingSpray-paint

Interfaces and I/O

ConnectorSMP-03 V
Communication distanceTypically up to 15 m Up to 100 m
Control interfacePoint-to-point connection Multi-device networking via Ethernet switch

Light

BrightnessButton / Remote Control

Environment and compliance

Operating temperature0 ~ 40 °C
Storage temperature-10 ~ 50 °C

Electrical

Output voltage24 V
Supply voltage24 V
PowerTotal:150 W Single:70 W
Channels4
Output TypePWM
Output Adjustable Range0 ~ 100%
Total Output Power≤150 W
Single Output Maximum Power≤80 W
Trigger modePositive/Negative
Trigger input5~24 V
Drive modeConstant Voltage

Mechanical

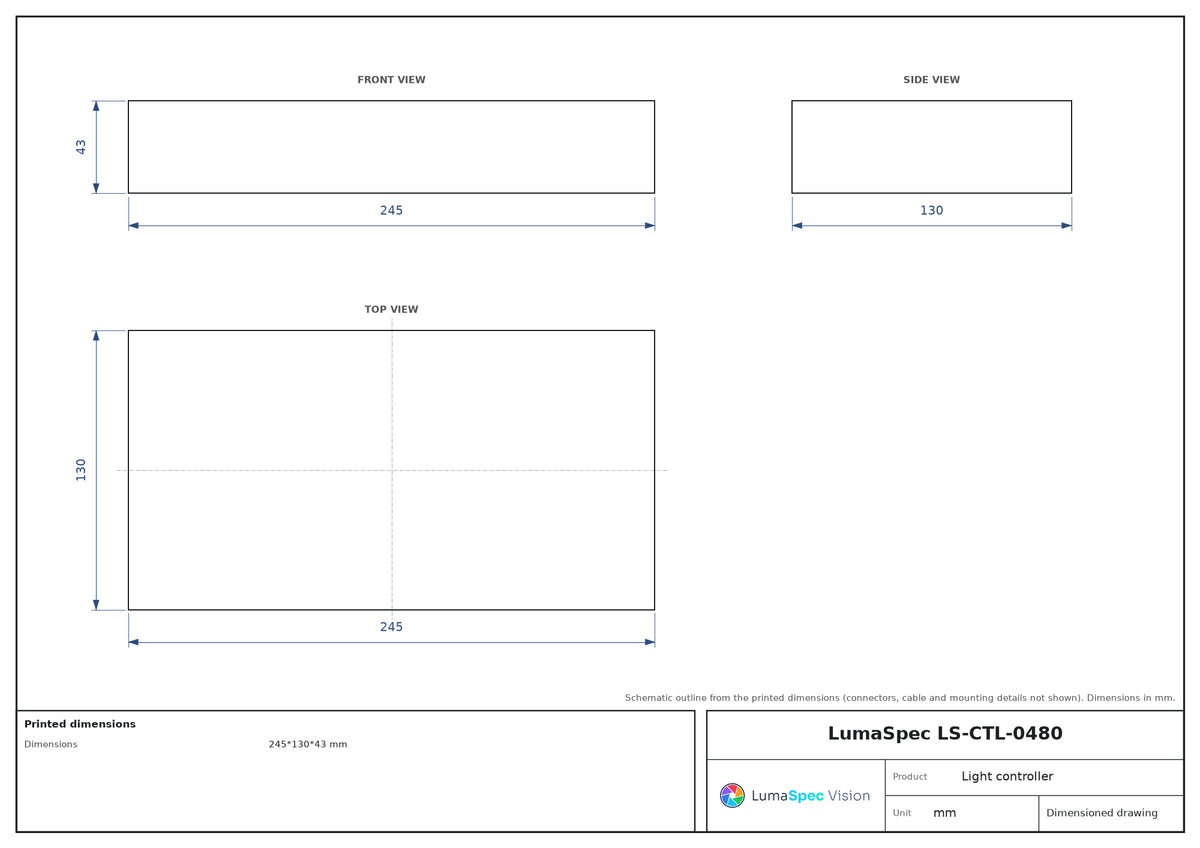

Dimensions (mm)245*130*43 mm
Shipping weight0.50 kg
