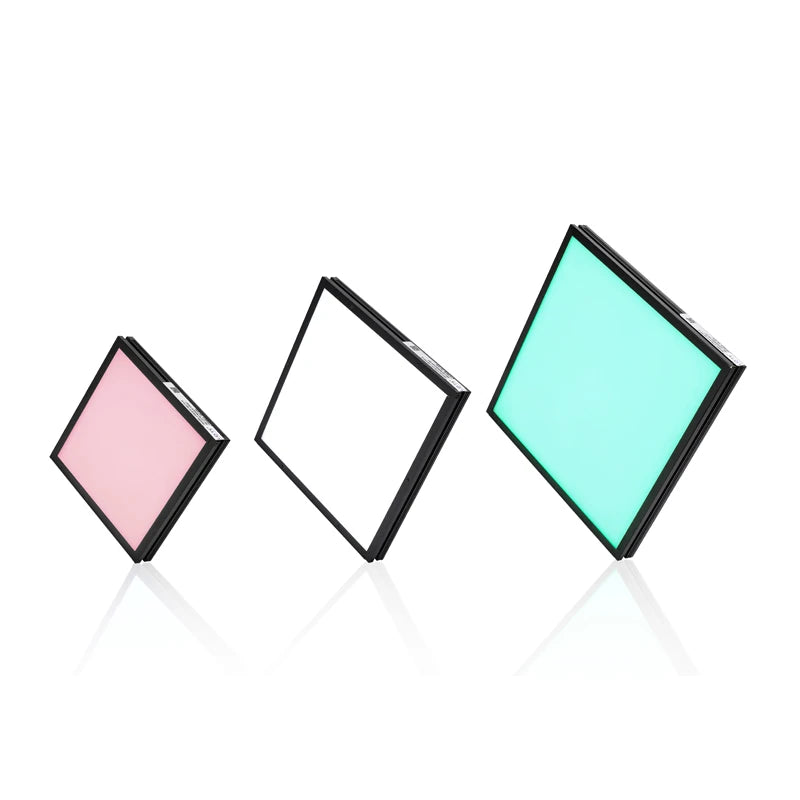

High luminance back light (LS-BKL-S93)

Backlights

High luminance back light (LS-BKL-S93)

  • 15 models
  • from $149.00
  • Series LS-BKL-S93

The High luminance back light (LS-BKL-S93) is a range of 15 backlights from LumaSpec Vision, from $149.00. Every model below has its own page with full specifications, drawings and price.

Build a system with this series See all 15 models Series datasheet (PDF)

The series at a glance

Colour
Red, Green, Blue, White
Size
50-100 mm, 100-200 mm, 200-400 mm, 400 mm +
Type
Standard
Voltage
24 V, 48 V

Features

  • Compact design, high efficiently use the eco-friendly material
  • Import ultrathin paste LED used, high luminance, high uniformity
  • Shell processed by high precision mould, shorten the difference between different batch
  • Multiple installation method, easy to install

Typical uses

  • Contour dimension measurement
  • damaged edge inspection
  • transparency impurity inspection
  • oral liquid level height inspection

All 15 models in the High luminance back light (LS-BKL-S93)

Link
LS-BKL-093050 x 502.9W/3.6WDC 24V (max)24V$149.00View
LS-BKL-093160 x 604.4W/5.4WDC 24V (max)24V$159.00View
LS-BKL-093270 x 705.8W/6.5WDC 24V (max)24V$169.00View
LS-BKL-093380 x 806.5W/8.7WDC 24V (max)24V$179.00View
LS-BKL-0934100 x 10011.6W/14.4WDC 24V (max)24V$199.00View
LS-BKL-0935110 x 11013.0W/16.2WDC 24V (max)24V$209.00View
LS-BKL-0936120 x 12013.0W/16.2WDC 24V (max)24V$229.00View
LS-BKL-0937130 x 13015.9W/19.8WDC 24V (max)24V$239.00View
LS-BKL-0938150 x 15017.3W/28.1WDC 24V (max)24V$279.00View
LS-BKL-093940.4W/50.4WDC 24V (max)24V$469.00View
LS-BKL-0940400 x 40092.0W/117WDC 24V (max)24V$1,059.00View
LS-BKL-0941420 x 420116.2W/146WDC 24V (max)24V$1,149.00View
LS-BKL-09441763 x 183253W/309WDC 24V (max)24V$1,979.00View
LS-BKL-0942905 x 703242W/303WDC 24V (max)24V$3,739.00View
LS-BKL-09431210 x 680381W/479WDC 48V (max)48V$4,939.00View
