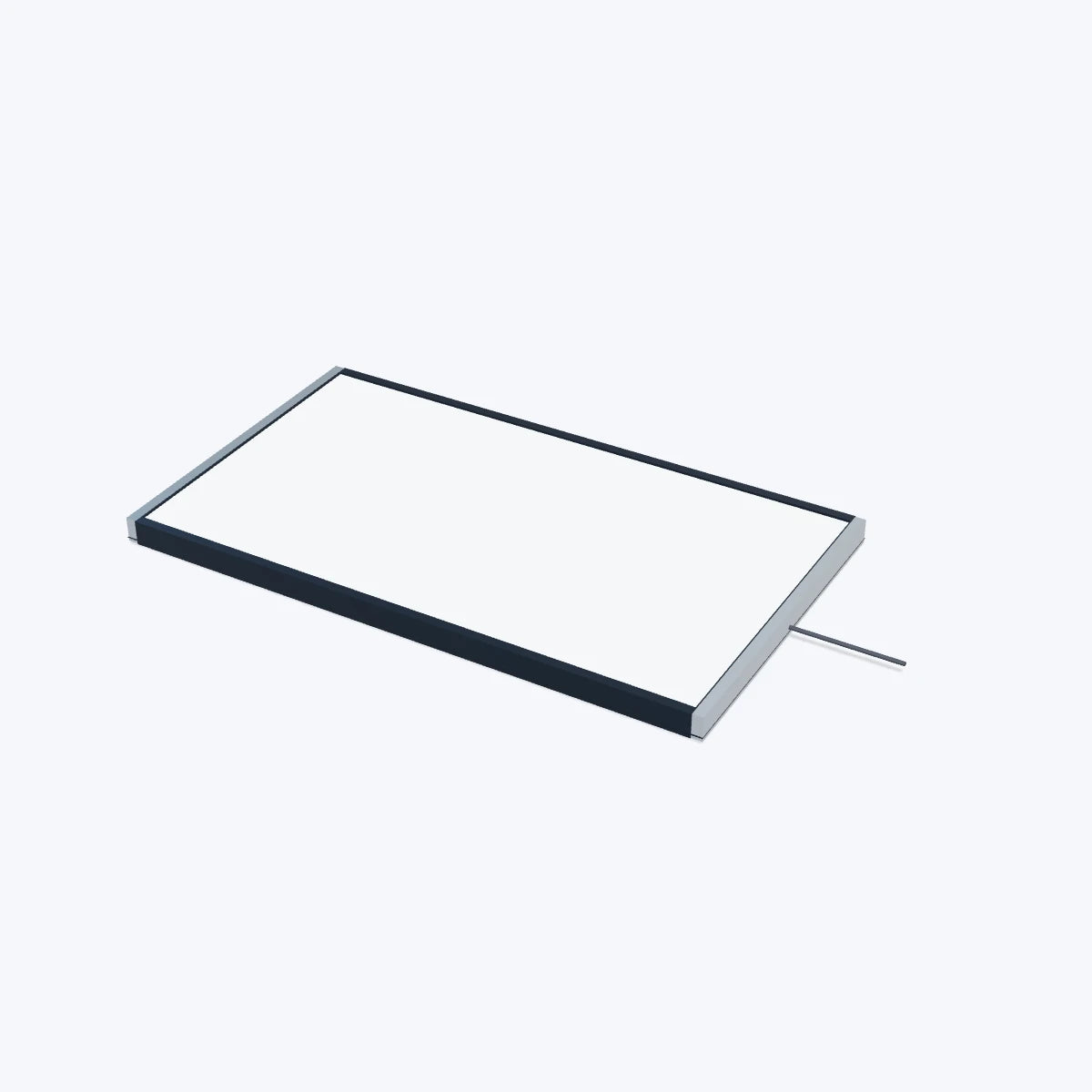

Dimension-based illustration. Housing dimensions follow this model's printed specifications; LED layout, cable position, finish and light colour are representative.
Backlights
High luminance back light, 1260 x 721 x 53 mm (LS-BKL-0943)
Model LS-BKL-0943
- ColourRed, Blue, Green, White
- Emitting area1210 x 680 mm
- SizeL1260xW721xH53(mm)
- Voltage48V
- Power381W/479W
$4,939.00
Ships in 2-3 weeks
20.65 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Adopting lightweight design, the new back light LS-BKL-S83 series completely change the old and heavy image. The installation groove can be used as a heat sink, which not only can lighten the weight, but also increase the brightness and installation flexibility. Besides, the use of imported ultra-thin chip LEDs can effectively improve the brightness and uniformity.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-0943 |
|---|---|
| Note | UV & IR light can be customized as required. |
Interfaces and I/O
| Cable polarity | 1: +, 2: -, 3: NC, 4: NC |
|---|
Light
| LED colour | R(red)/W(white) |
|---|---|
| Emitting surface (mm) | 1210 x 680 |
Electrical
| Voltage | 48V |
|---|---|
| Power | 381W/479W |
| Input voltage | DC 48V (max) |

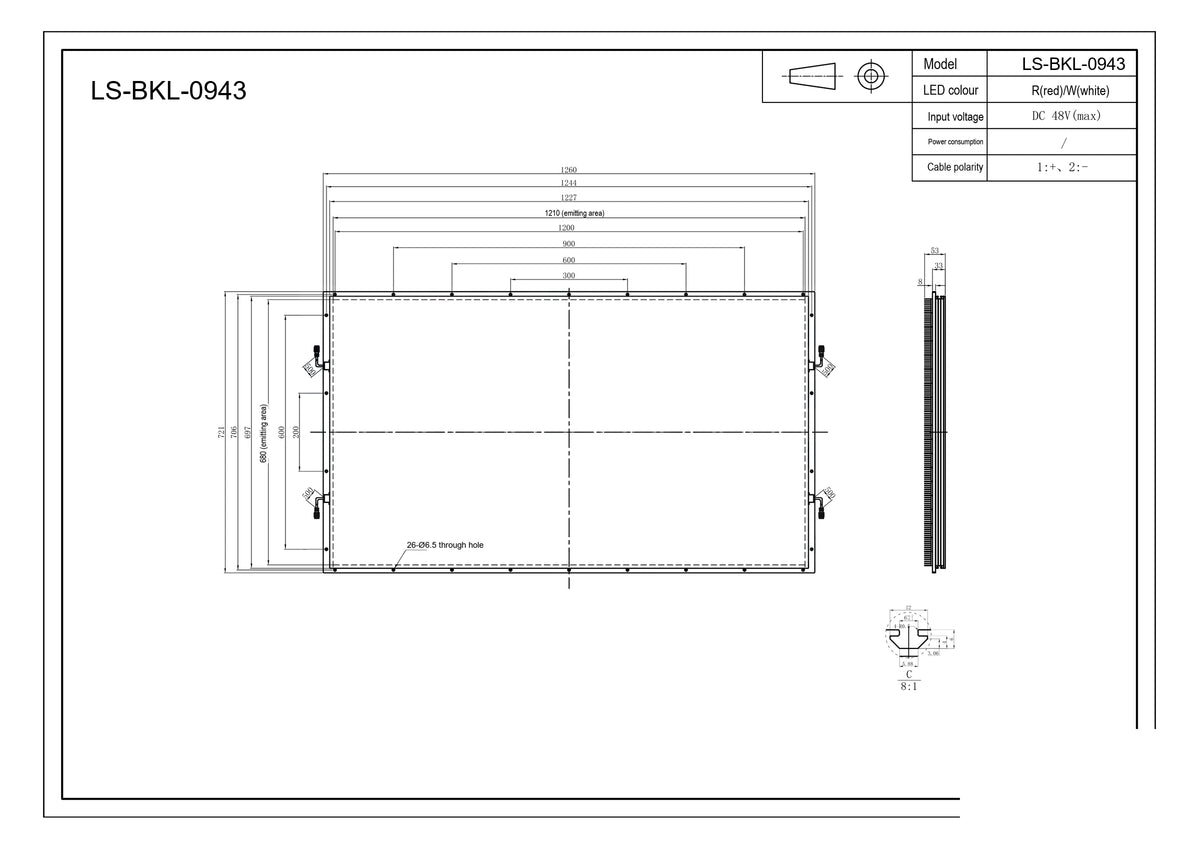

Mechanical
| Dimension | L1260xW721xH53(mm) |
|---|---|
| Mounting holes | 30-M3 depth 4 (reverse side) |
| Shipping weight | 20.65 kg |
