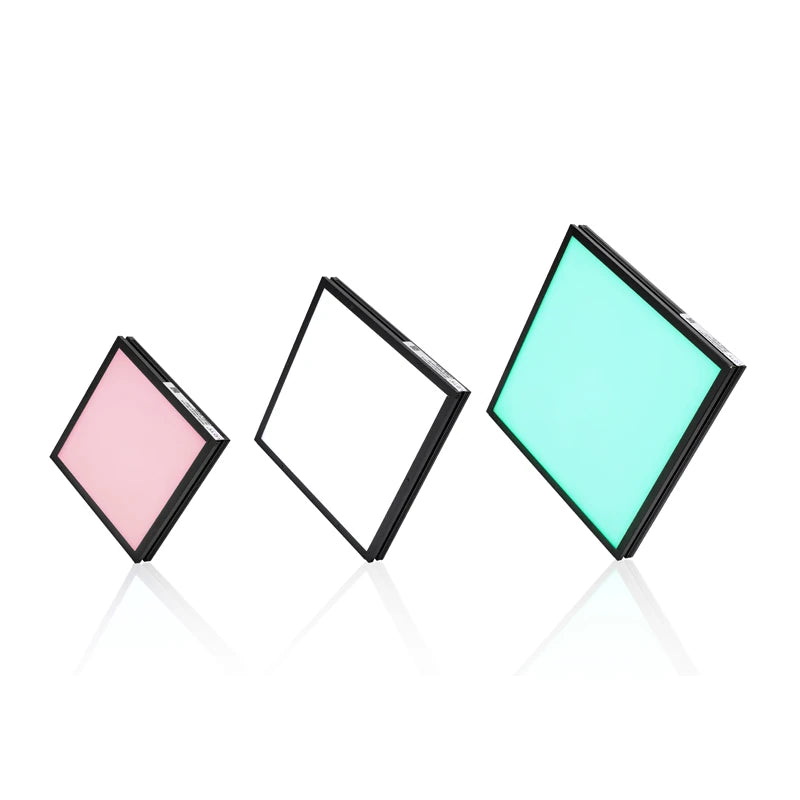

Representative photo of this series
Backlights
High luminance back light, 247 x 247 x 25 mm (LS-BKL-0939)
Model LS-BKL-0939
- ColourRed, Blue, Green, White
- SizeL247xW247xH25(mm)
- Voltage24V
- Power40.4W/50.4W
$469.00
In stock - ships the same business day (3 available, order by 2 PM ET)
1.65 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Adopting lightweight design, the new back light LS-BKL-S83 series completely change the old and heavy image. The installation groove can be used as a heat sink, which not only can lighten the weight, but also increase the brightness and installation flexibility. Besides, the use of imported ultra-thin chip LEDs can effectively improve the brightness and uniformity.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-0939 |
|---|---|
| Note | UV & IR light can be customized as required. |
Interfaces and I/O
| Cable polarity | 1: +, 2: NC, 3: - |
|---|---|
| Cable (mm) | 500 (drawing) |
Light
| LED colour | R(red)/W(white) |
|---|
Electrical
| Voltage | 24V |
|---|---|
| Power | 40.4W/50.4W |
| Input voltage | DC 24V (max) |
Mechanical
| Dimension | L247xW247xH25(mm) |
|---|---|
| Mounting holes | 6-M3 depth 4 (reverse side) |
| Shipping weight | 1.65 kg |
Other models in the High luminance back light (LS-BKL-S93) series
See all 15 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-BKL-0930 | Red, Blue, Green, White · 50 x 50 mm | $149.00 | 17 in stock | View |
| LS-BKL-0931 | Red, Blue, Green, White · 60 x 60 mm | $159.00 | 14 in stock | View |
| LS-BKL-0932 | Red, Blue, Green, White · 70 x 70 mm | $169.00 | 13 in stock | View |
| LS-BKL-0933 | Red, Blue, Green, White · 80 x 80 mm | $179.00 | 15 in stock | View |
| LS-BKL-0934 | Red, Blue, Green, White · 100 x 100 mm | $199.00 | 11 in stock | View |
| LS-BKL-0935 | Red, Blue, Green, White · 110 x 110 mm | $209.00 | 11 in stock | View |
| LS-BKL-0936 | Red, Blue, Green, White · 120 x 120 mm | $229.00 | 13 in stock | View |
| LS-BKL-0937 | Red, Blue, Green, White · 130 x 130 mm | $239.00 | 16 in stock | View |
| LS-BKL-0938 | Red, Blue, Green, White · 150 x 150 mm | $279.00 | 14 in stock | View |
| LS-BKL-0940 | Red, Blue, Green, White · 400 x 400 mm | $1,059.00 | 15 in stock | View |
| LS-BKL-0941 | Red, Blue, Green, White · 420 x 420 mm | $1,149.00 | 15 in stock | View |
| LS-BKL-0944 | Red, Blue, Green, White · 1763 x 183 mm | $1,979.00 | 15 in stock | View |
| LS-BKL-0942 | Red, Blue, Green, White · 905 x 703 mm | $3,739.00 | 14 in stock | View |
| LS-BKL-0943 | Red, Blue, Green, White · 1210 x 680 mm | $4,939.00 | 14 in stock | View |
