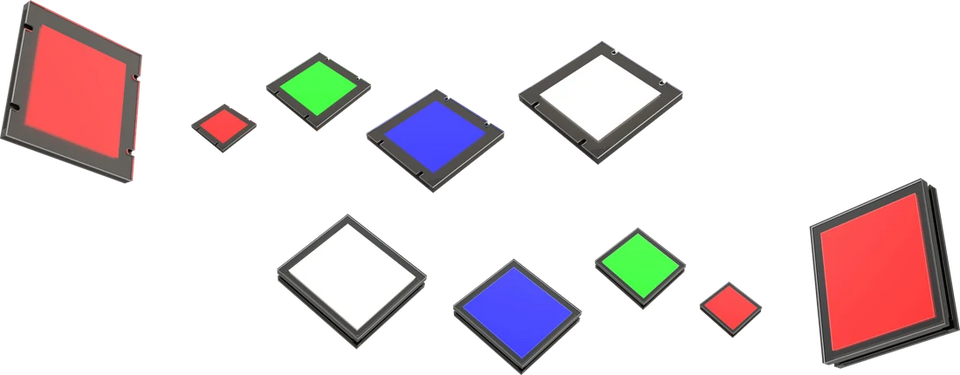

Collimated Flank Back Light (LS-BKL-S111)
- 14 models
- from $219.00
- Series LS-BKL-S111
The Collimated Flank Back Light (LS-BKL-S111) is a range of 14 backlights from LumaSpec Vision, from $219.00. It comes in 14 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 25 x 25 mm, 50 x 50 mm, 70 x 70 mm, 80 x 80 mm, 90 x 90 mm, 110 x 110 mm, 150 x 100 mm, 200 x 160 mm, 200 x 200 mm, 250 x 200 mm, 300 x 200 mm, 300 x 300 mm, 400 x 300 mm, 600 x 400 mm
- Colour
- Red, Green, Blue, White
- Type
- Collimated
- Voltage
- 24 V
Features
- Flexible design for width, length, and overall dimensions.
- Effectively enhances product edge sharpness and contrast.
- High uniformity.
Typical uses
- Metal cylinder contour inspection, glass bottle diameter inspection, ceramic column diameter inspection, screw thread contour inspection.
- Transparent packaging box detection
- Contour defects
- Burrs on gold-plated components
- Coil burr detection
All 14 models in the Collimated Flank Back Light (LS-BKL-S111)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-BKL-1129 | 25 x 25 mm | 25x25 | 60x60x11.5 | 2 | $219.00 | View |
| LS-BKL-1130 | 50 x 50 mm | 50x50 | 85x85x11.5 | 4 | $249.00 | View |
| LS-BKL-1131 | 70 x 70 mm | 70x70 | 105x105x11.5 | 5 | $269.00 | View |
| LS-BKL-1132 | 80 x 80 mm | 80x80 | 115x115x11.5 | 5 | $289.00 | View |
| LS-BKL-1133 | 90 x 90 mm | 90x90 | 125x125x11.5 | 5 | $309.00 | View |
| LS-BKL-1134 | 110 x 110 mm | 110x110 | 145x145x11.5 | 6 | $359.00 | View |
| LS-BKL-1135 | 150 x 100 mm | 150x100 | 185x135x11.5 | 6 | $389.00 | View |
| LS-BKL-1136 | 200 x 160 mm | 200x160 | 235x195x11.5 | 6 | $589.00 | View |
| LS-BKL-1137 | 200 x 200 mm | 200x200 | 235x235x11.5 | 7 | $679.00 | View |
| LS-BKL-1138 | 250 x 200 mm | 250x200 | 285x235x11.5 | 8 | $789.00 | View |
| LS-BKL-1139 | 300 x 200 mm | 300x200 | 335x235x11.5 | 10 | $889.00 | View |
| LS-BKL-1140 | 300 x 300 mm | 300x300 | 335x335x11.5 | 17 | $1,189.00 | View |
| LS-BKL-1141 | 400 x 300 mm | 400x300 | 435x335x11.5 | 18 | $1,489.00 | View |
| LS-BKL-1142 | 600 x 400 mm | 600x400 | 635x435x11.5 | 20 | $1,879.00 | View |
