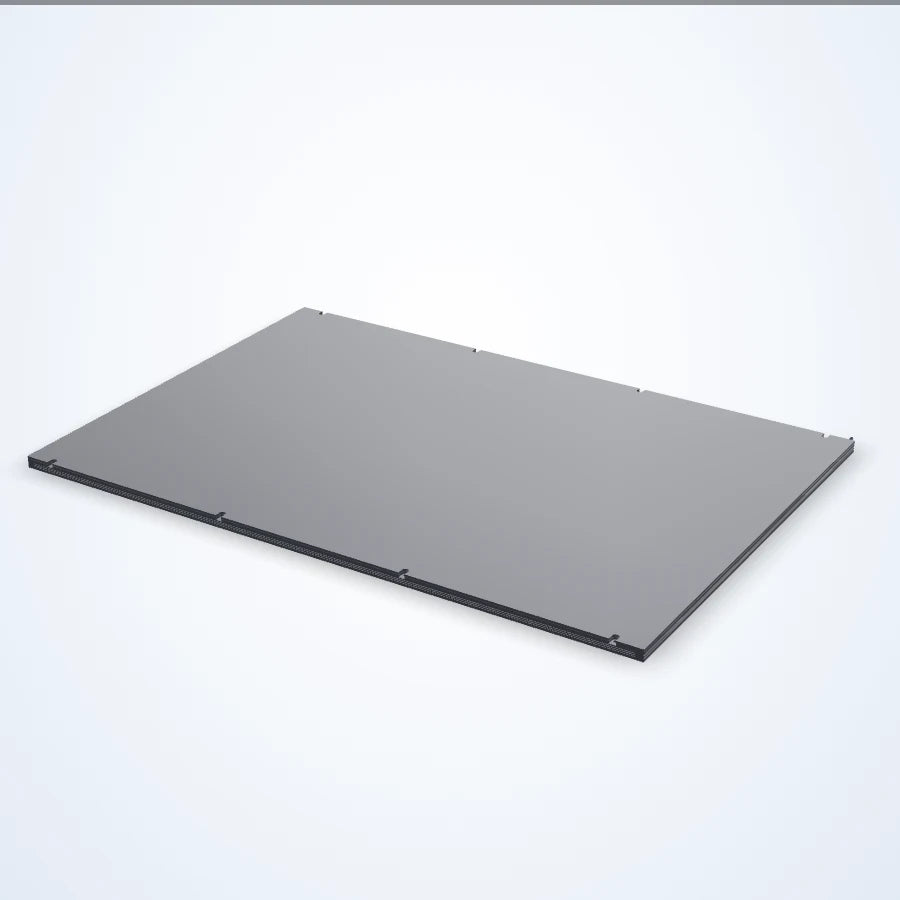

LS-BKL-1142 3D render
  • LS-BKL-1142 3D render

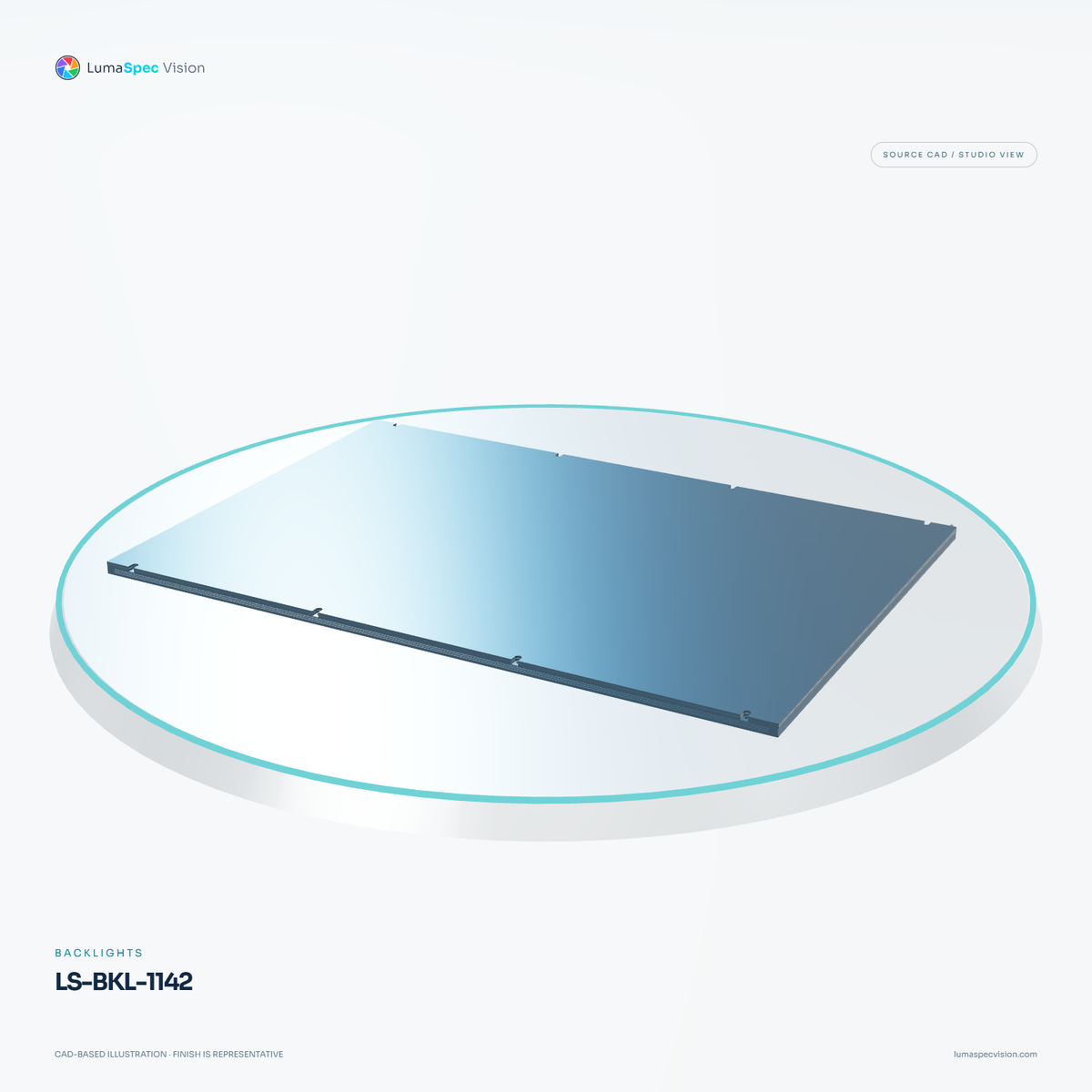

  • LS-BKL-1142 — Backlights, 3D view 1. CAD-based illustration; finish is representative.

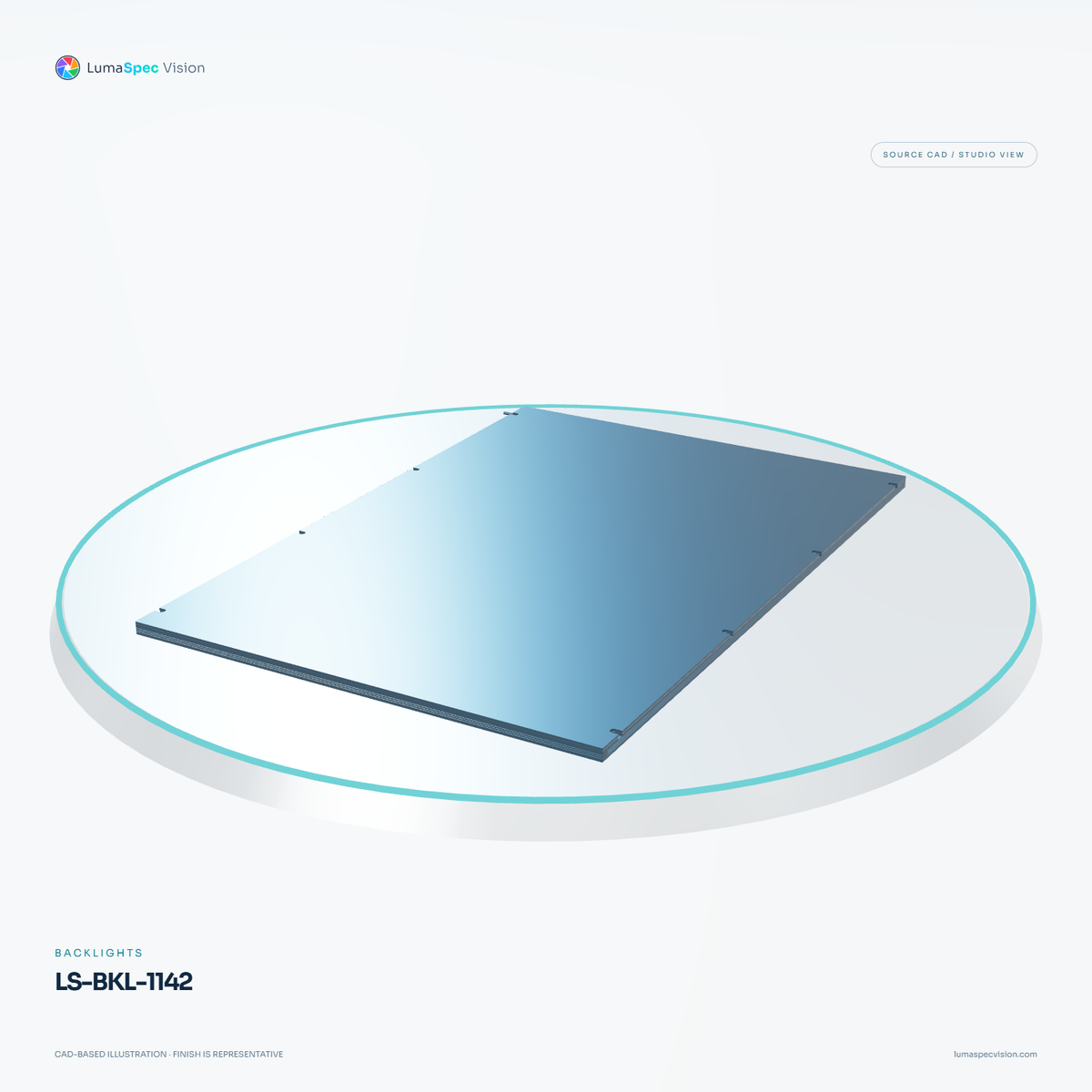

  • LS-BKL-1142 — Backlights, 3D view 2. CAD-based illustration; finish is representative.

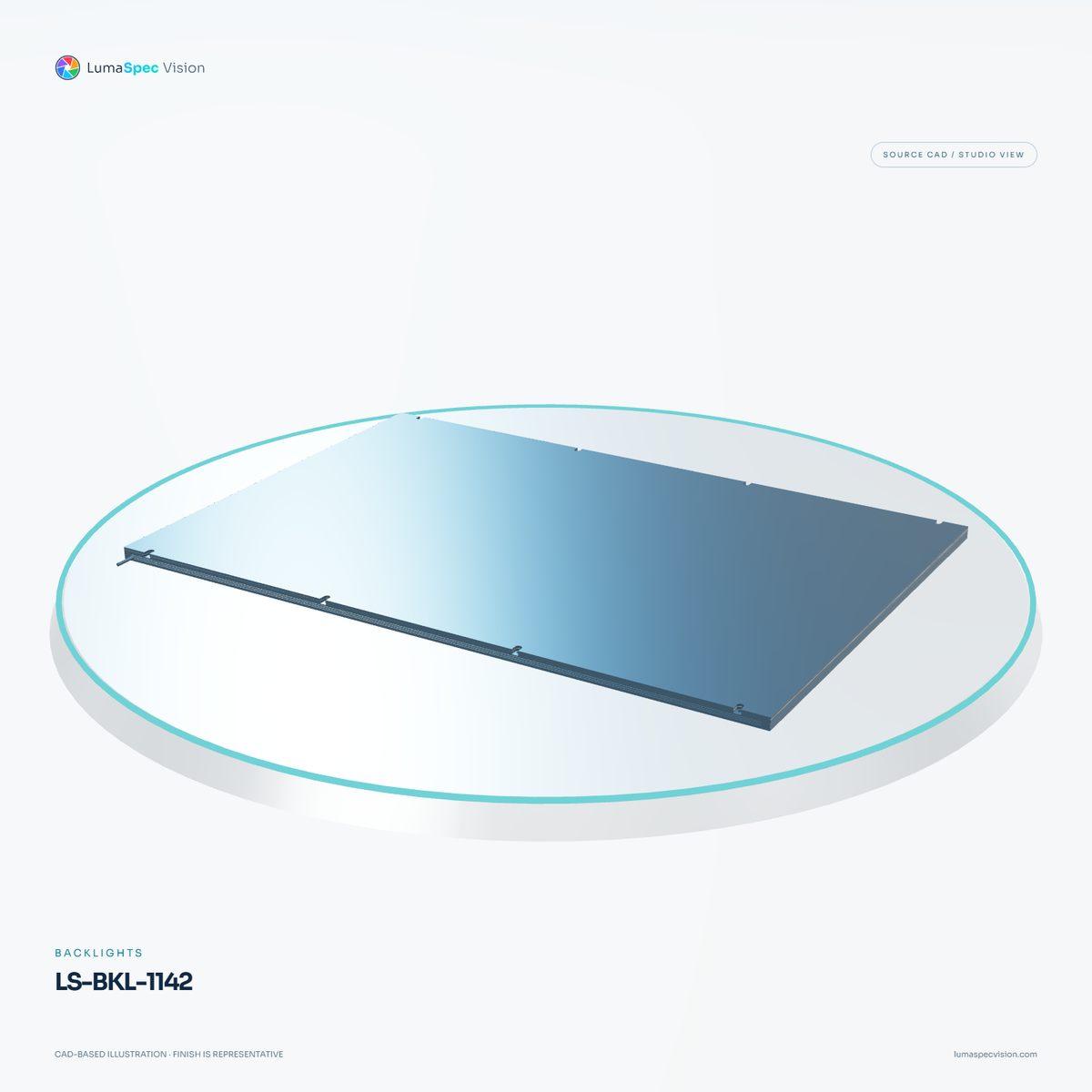

  • LS-BKL-1142 — Backlights, 3D view 3. CAD-based illustration; finish is representative.

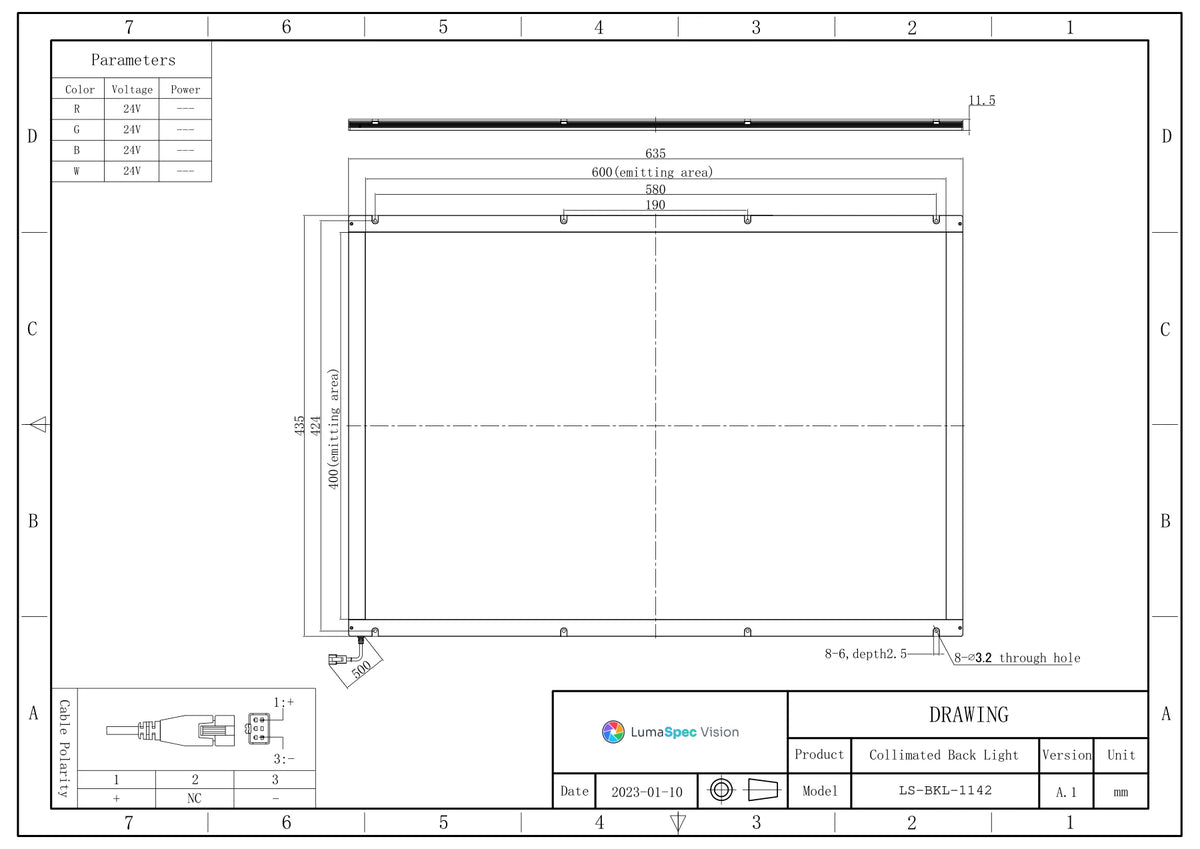

  • LS-BKL-1142 dimensions (mm)

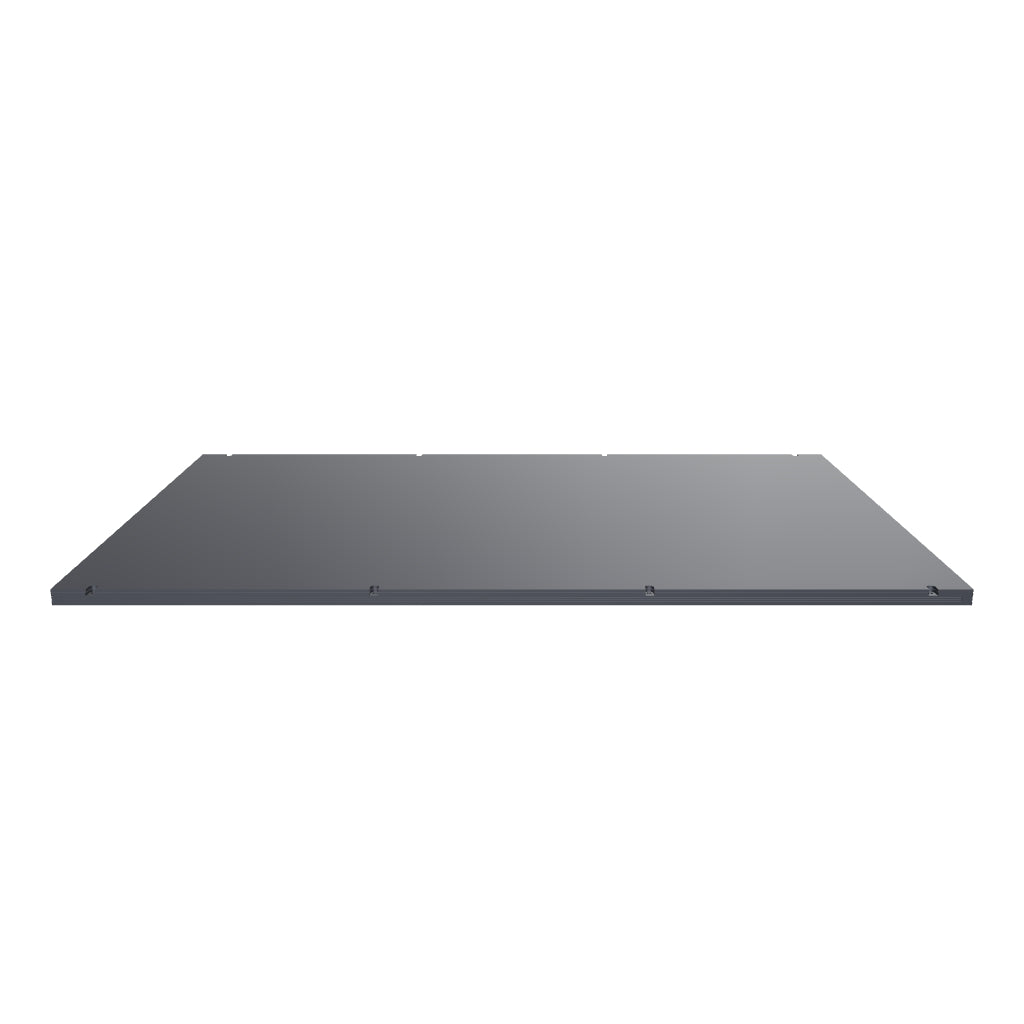

  • LS-BKL-1142 3D model

CAD-based illustration of this model. Finish and light colour are representative; refer to the specifications and dimensioned drawing.

Backlights

600 x 400 mm Edge-Lit Collimated LED Backlight (LS-BKL-1142)

Model LS-BKL-1142

  • ColourRed, Green, Blue, White
  • Emitting area600x400 mm
  • Size635x435x11.5 mm
  • Voltage24 V
  • Power30 W
$1,879.00

Ships in 2-3 weeks

3.65 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

600 x 400 mm Edge-Lit Collimated LED Backlight (LS-BKL-1142)LS-BKL-1142

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

600 x 400 mm Edge-Lit Collimated LED Backlight. Collimated edge-lit backlight (LED + light-guide plate) that sharpens product edges and raises contrast for diameter and contour measurement; 11.5 mm thick.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BKL-1142
Construction (setup diagram)LED / housing / light-guide plate

Interfaces and I/O

Cable length (mm)500

Light

Emitting area (mm)600x400
ColoursRed, Green, Blue, White

Electrical

Voltage (V)24
Power R (W)20
Power W/B/G (W)30

Mechanical

Outer size L x W x H (mm)635x435x11.5
Thickness (mm)11.5
MountingX-Φ3.2 through holes (installation); 4-6 depth 3
Shipping weight (estimated)3.65 kg

Mounting and drawing data

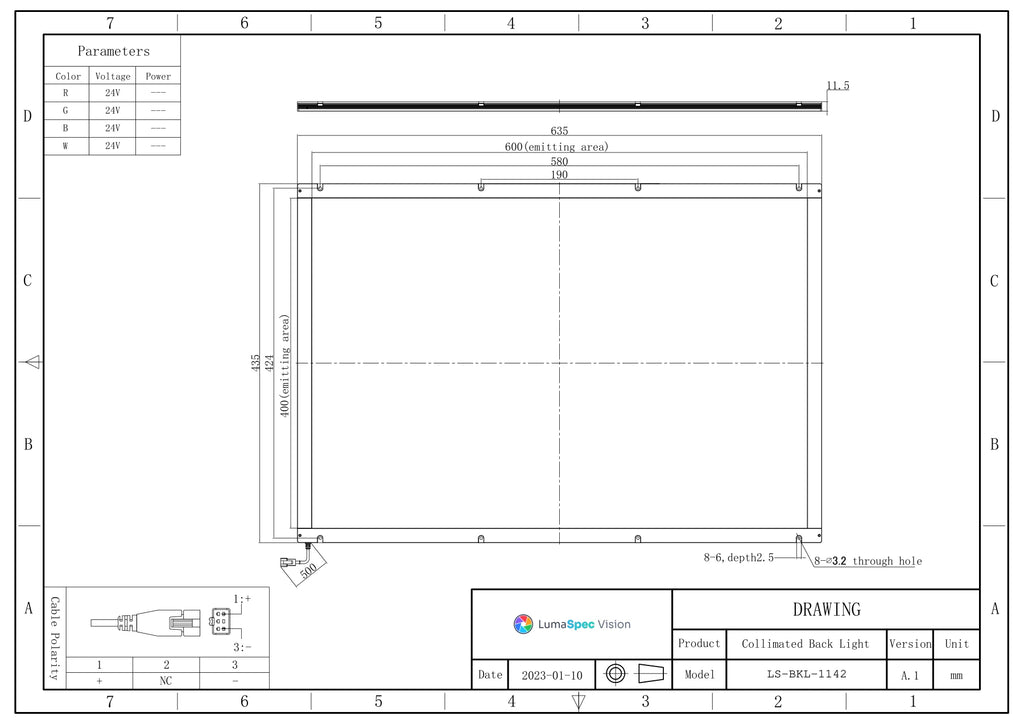

drawing table (X = qty of 3.2 mm through mounting holes): X=8, C=190/580, D=424

LS-BKL-1142

See this component from every angle.

CAD-based illustration; finish is representative.

Explore the visual library
LS-BKL-1142 — Backlights, View 1 Source CAD

FROM THE PRINTED SPECIFICATIONS

Outer size L x W x H (mm)
635x435x11.5
Emitting area (mm)
600x400
Voltage (V)
24

Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.

Other models in the Collimated Flank Back Light (LS-BKL-S111) series

See all 14 models
ModelSize / key dataPriceAvailabilityLink
LS-BKL-1129 25 x 25 mm $219.00 Ships in 2-3 weeks View
LS-BKL-1130 50 x 50 mm $249.00 Ships in 2-3 weeks View
LS-BKL-1131 70 x 70 mm $269.00 Ships in 2-3 weeks View
LS-BKL-1132 80 x 80 mm $289.00 Ships in 2-3 weeks View
LS-BKL-1133 90 x 90 mm $309.00 Ships in 2-3 weeks View
LS-BKL-1134 110 x 110 mm $359.00 Ships in 2-3 weeks View
LS-BKL-1135 150 x 100 mm $389.00 Ships in 2-3 weeks View
LS-BKL-1136 200 x 160 mm $589.00 Ships in 2-3 weeks View
LS-BKL-1137 200 x 200 mm $679.00 Ships in 2-3 weeks View
LS-BKL-1138 250 x 200 mm $789.00 Ships in 2-3 weeks View
LS-BKL-1139 300 x 200 mm $889.00 Ships in 2-3 weeks View
LS-BKL-1140 300 x 300 mm $1,189.00 Ships in 2-3 weeks View
LS-BKL-1141 400 x 300 mm $1,489.00 Ships in 2-3 weeks View
