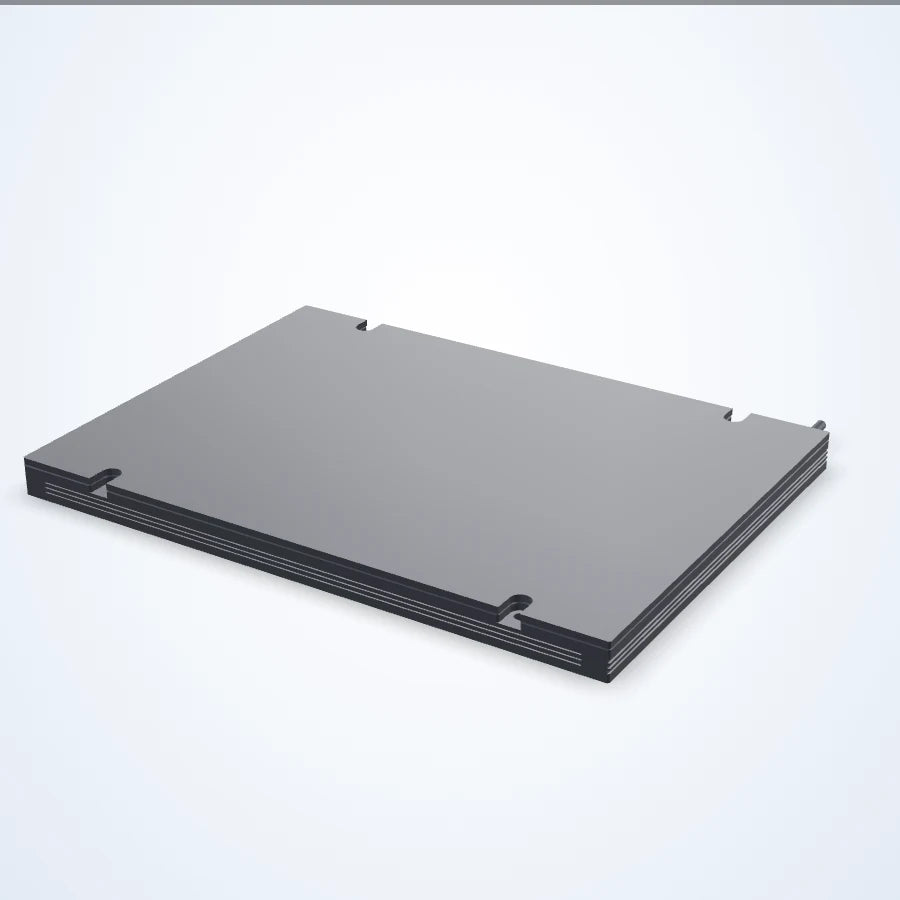

LS-BKL-1135 3D render
  • LS-BKL-1135 3D render

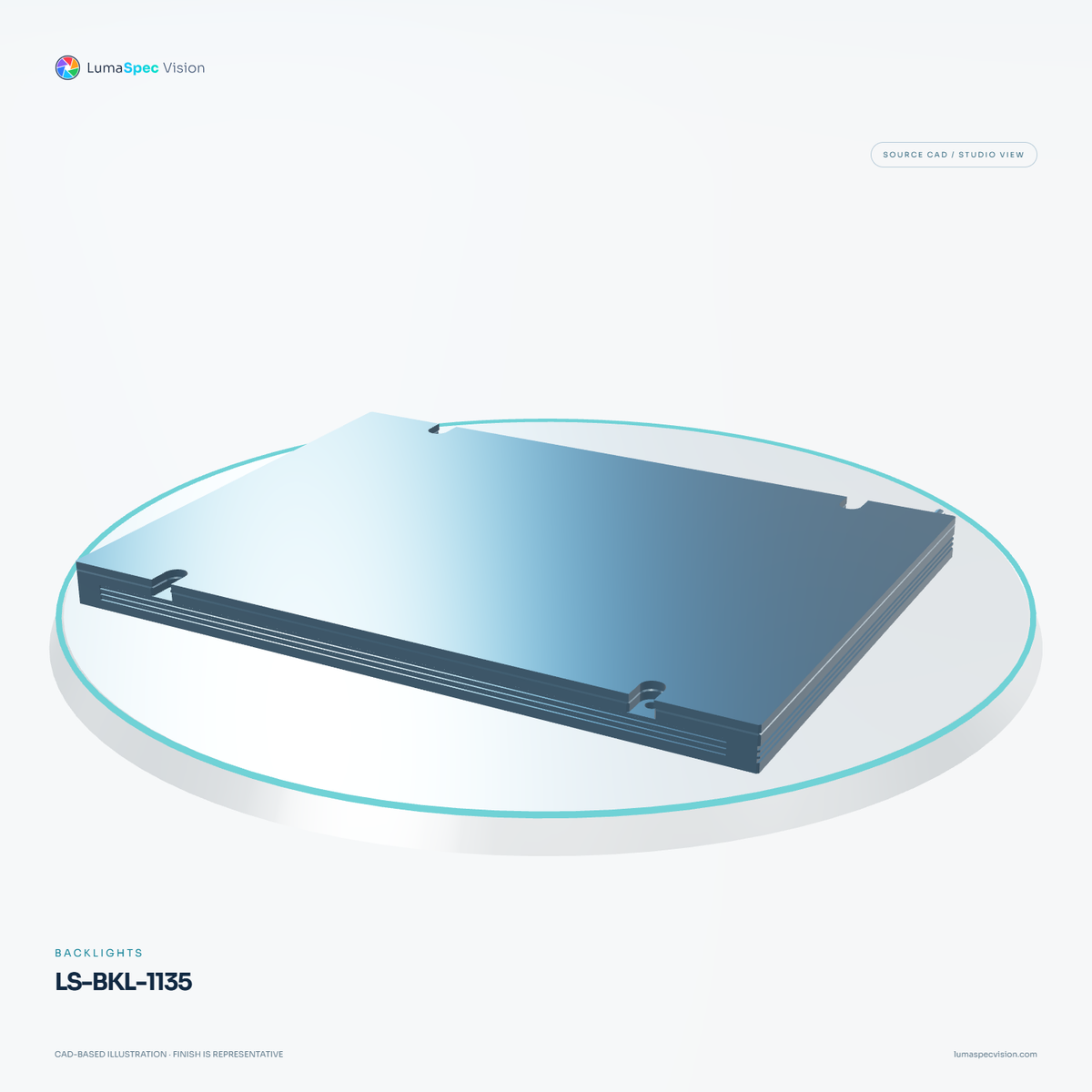

  • LS-BKL-1135 — Backlights, 3D view 1. CAD-based illustration; finish is representative.

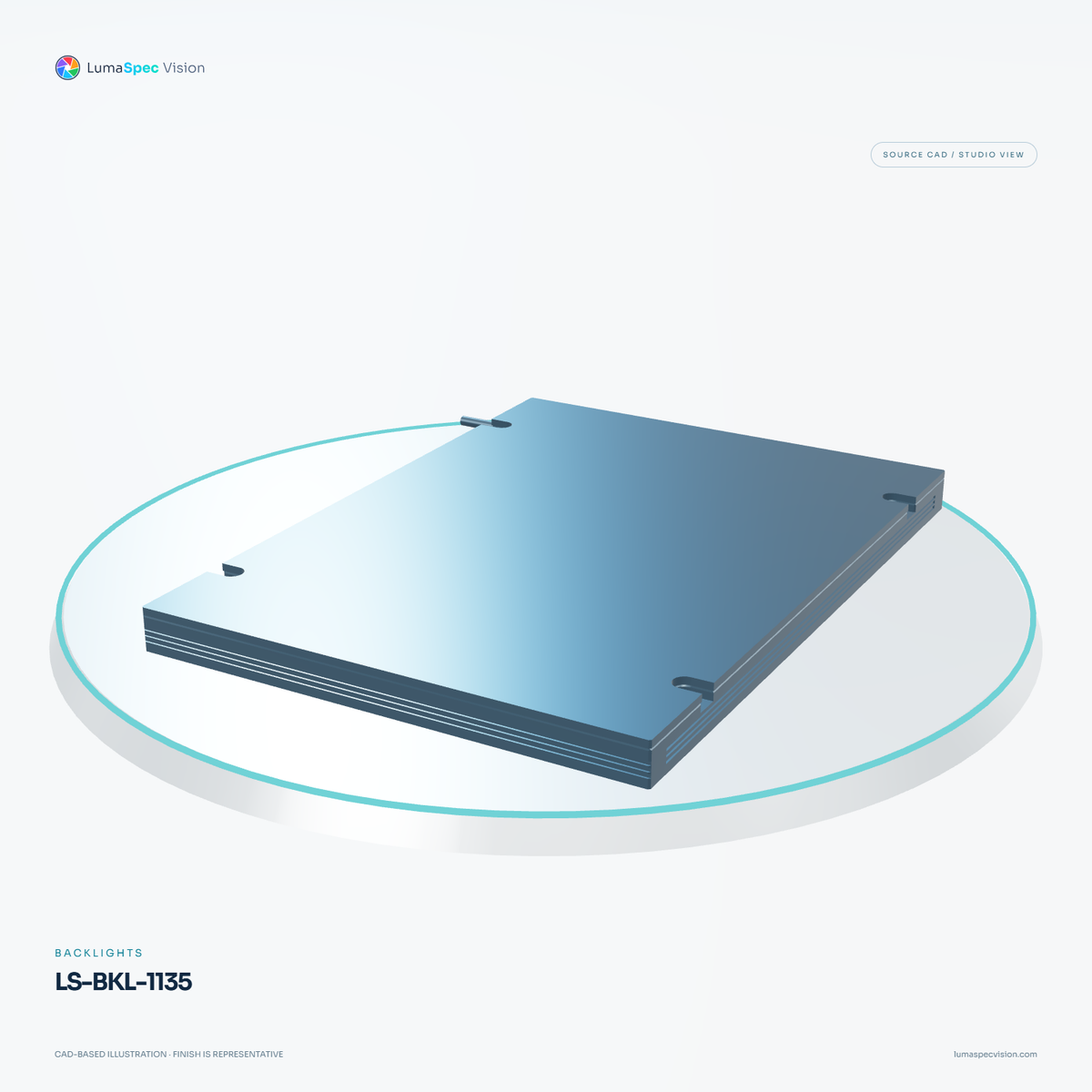

  • LS-BKL-1135 — Backlights, 3D view 2. CAD-based illustration; finish is representative.

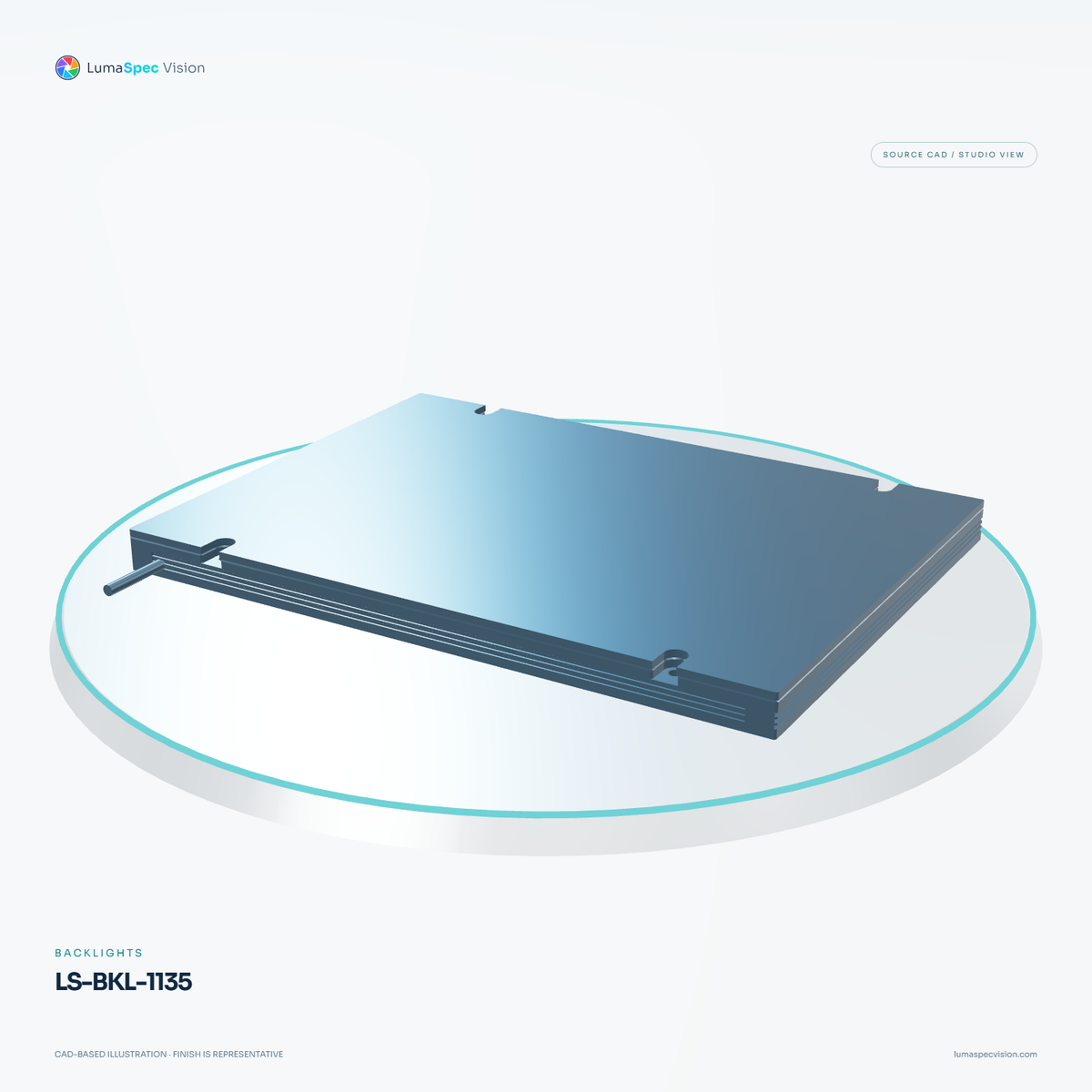

  • LS-BKL-1135 — Backlights, 3D view 3. CAD-based illustration; finish is representative.

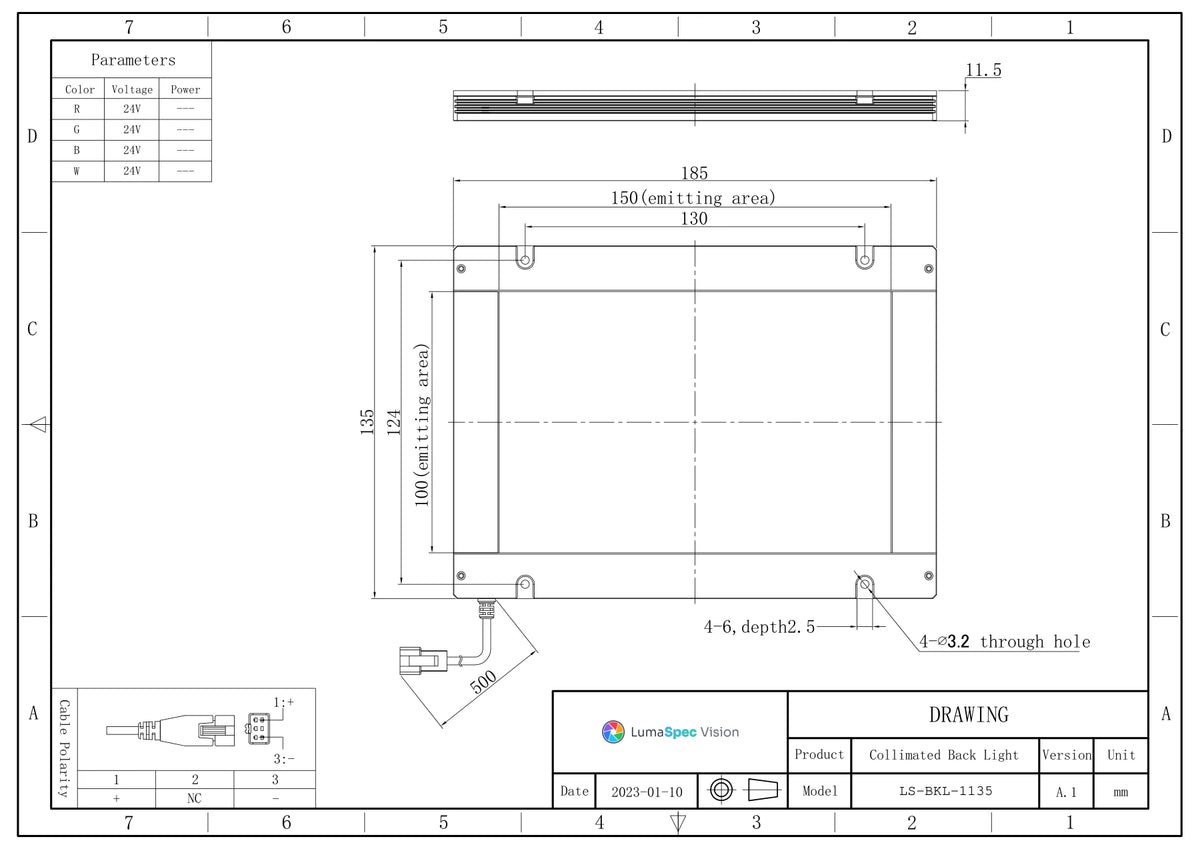

  • LS-BKL-1135 dimensions (mm)

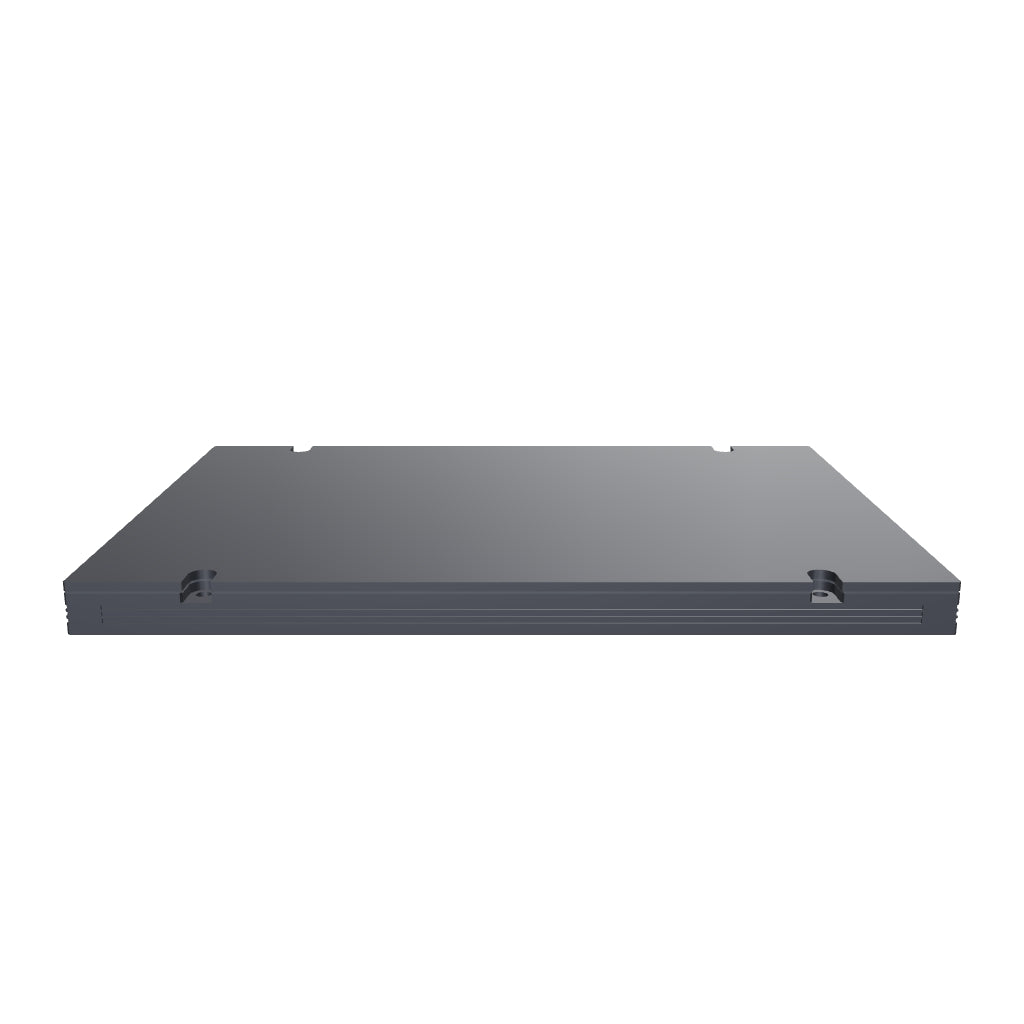

  • LS-BKL-1135 3D model

CAD-based illustration of this model. Finish and light colour are representative; refer to the specifications and dimensioned drawing.

Backlights

150 x 100 mm Edge-Lit Collimated LED Backlight (LS-BKL-1135)

Model LS-BKL-1135

  • ColourRed, Green, Blue, White
  • Emitting area150x100 mm
  • Size185x135x11.5 mm
  • Voltage24 V
  • Power8.5 W
$389.00

Ships in 2-3 weeks

0.5 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

150 x 100 mm Edge-Lit Collimated LED Backlight (LS-BKL-1135)LS-BKL-1135

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

150 x 100 mm Edge-Lit Collimated LED Backlight. Collimated edge-lit backlight (LED + light-guide plate) that sharpens product edges and raises contrast for diameter and contour measurement; 11.5 mm thick.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BKL-1135
Construction (setup diagram)LED / housing / light-guide plate

Interfaces and I/O

Cable length (mm)500

Light

Emitting area (mm)150x100
ColoursRed, Green, Blue, White

Electrical

Voltage (V)24
Power R (W)6
Power W/B/G (W)8.5

Mechanical

Outer size L x W x H (mm)185x135x11.5
Thickness (mm)11.5
MountingX-Φ3.2 through holes (installation); 4-6 depth 3
Shipping weight (estimated)0.50 kg

Mounting and drawing data

drawing table (X = qty of 3.2 mm through mounting holes): X=4, C=130, D=124

LS-BKL-1135

See this component from every angle.

CAD-based illustration; finish is representative.

Explore the visual library
LS-BKL-1135 — Backlights, View 1 Source CAD

FROM THE PRINTED SPECIFICATIONS

Outer size L x W x H (mm)
185x135x11.5
Emitting area (mm)
150x100
Voltage (V)
24

Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
