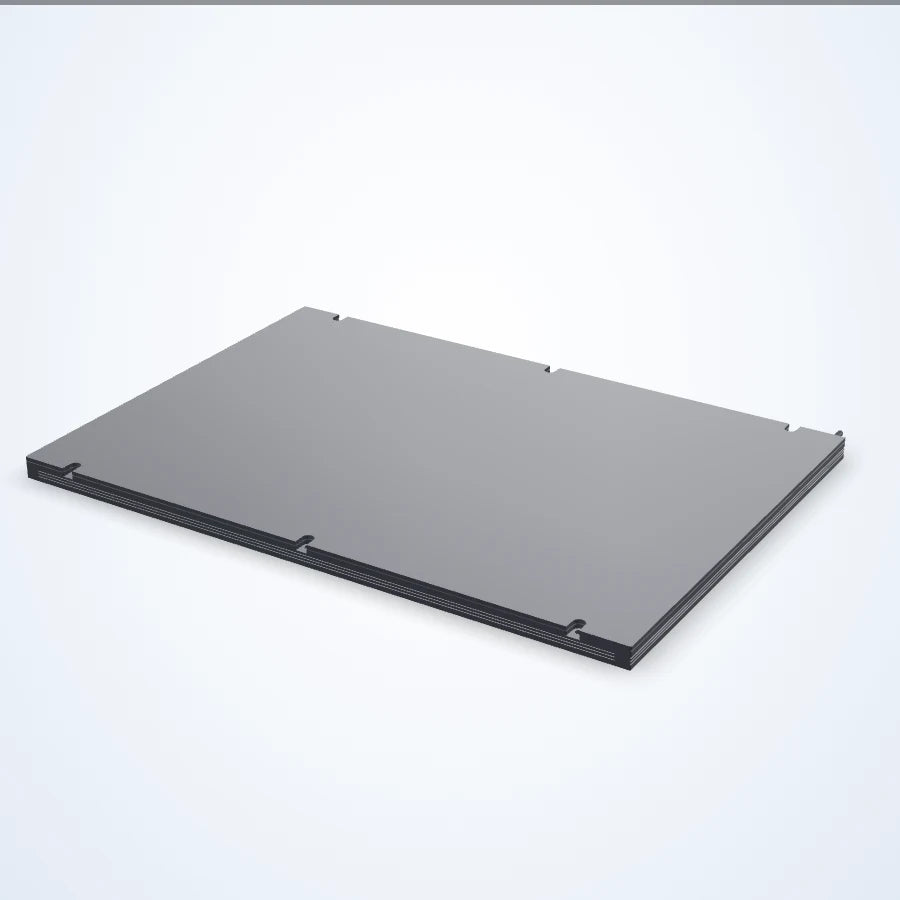

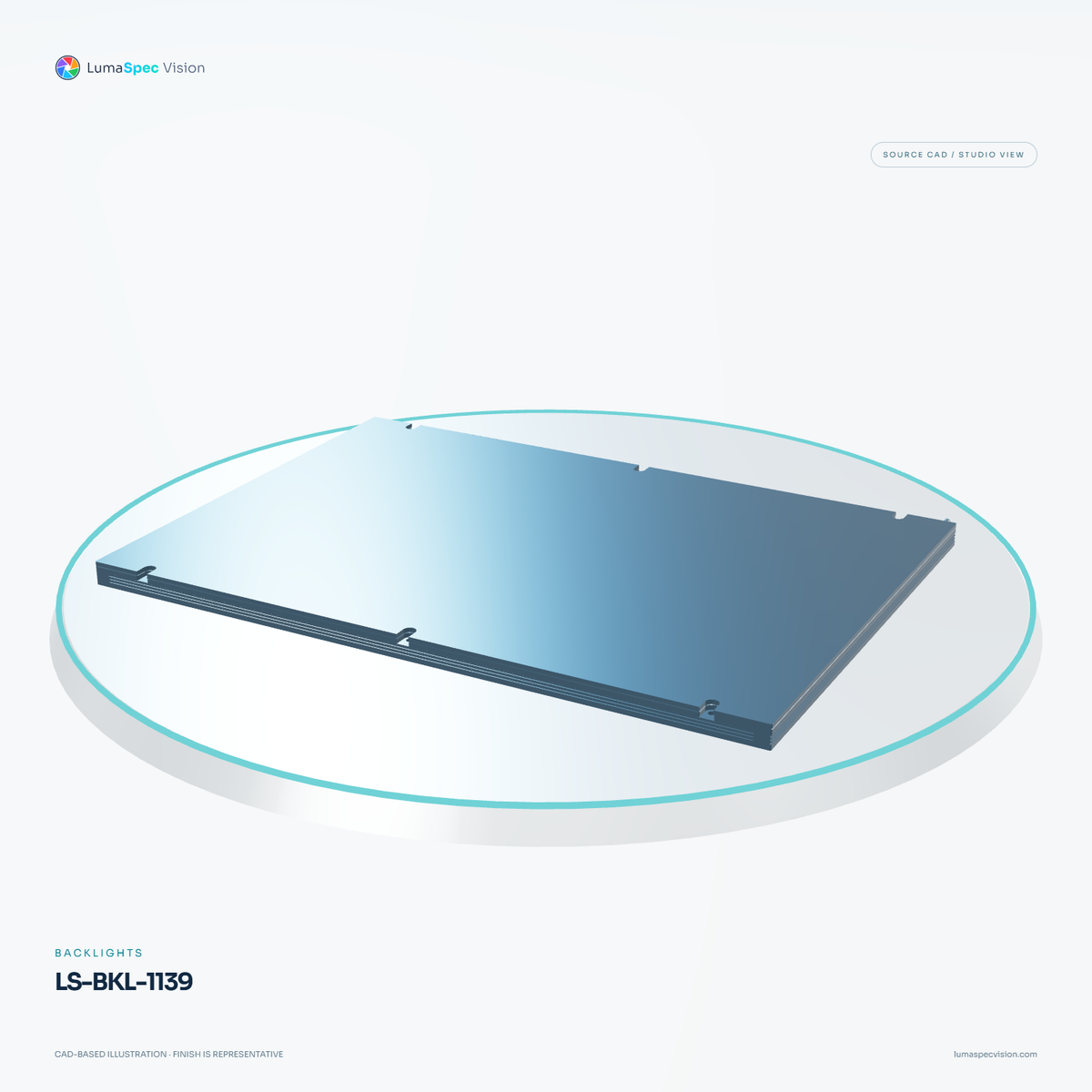

  • LS-BKL-1139 — Backlights, 3D view 1. CAD-based illustration; finish is representative.

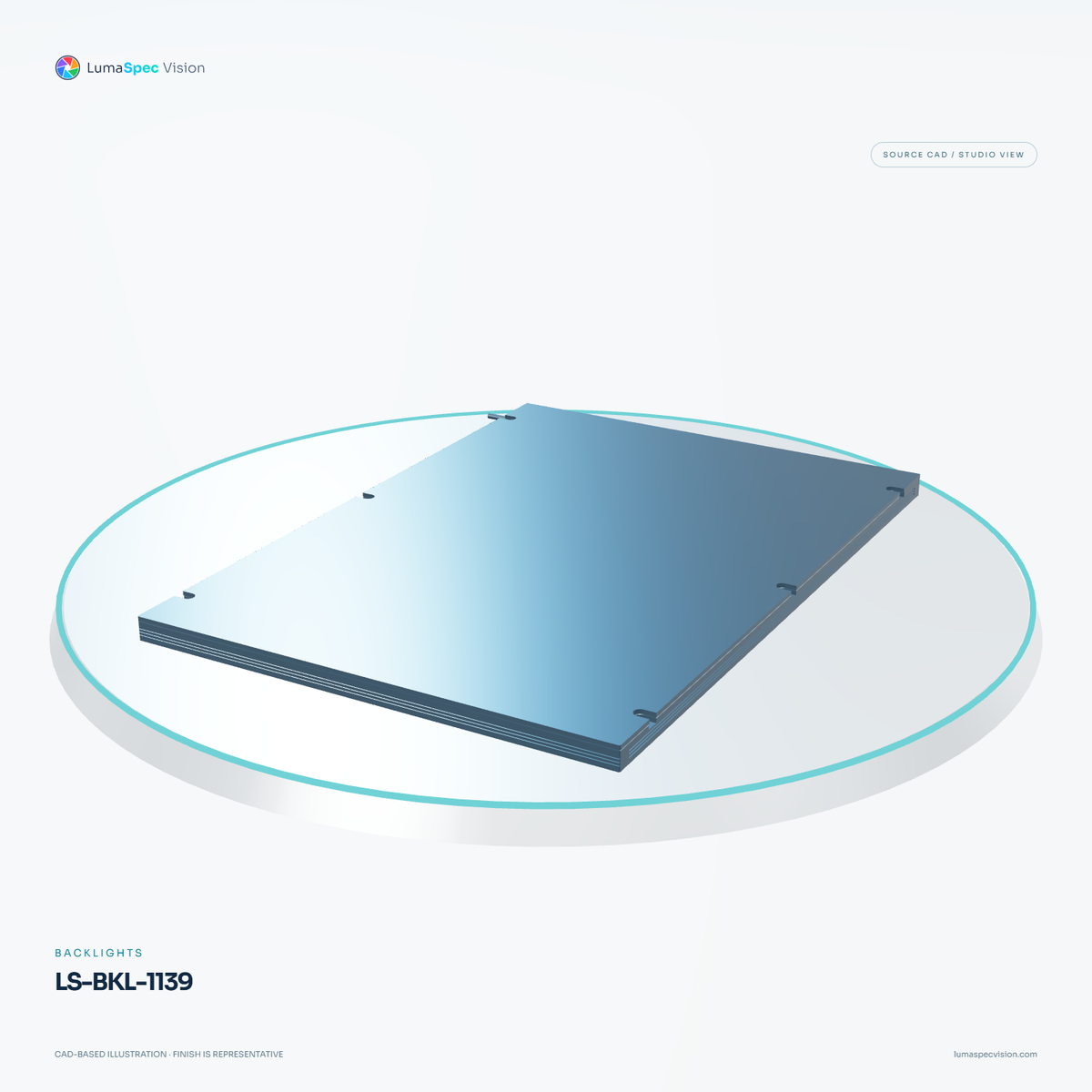

  • LS-BKL-1139 — Backlights, 3D view 2. CAD-based illustration; finish is representative.

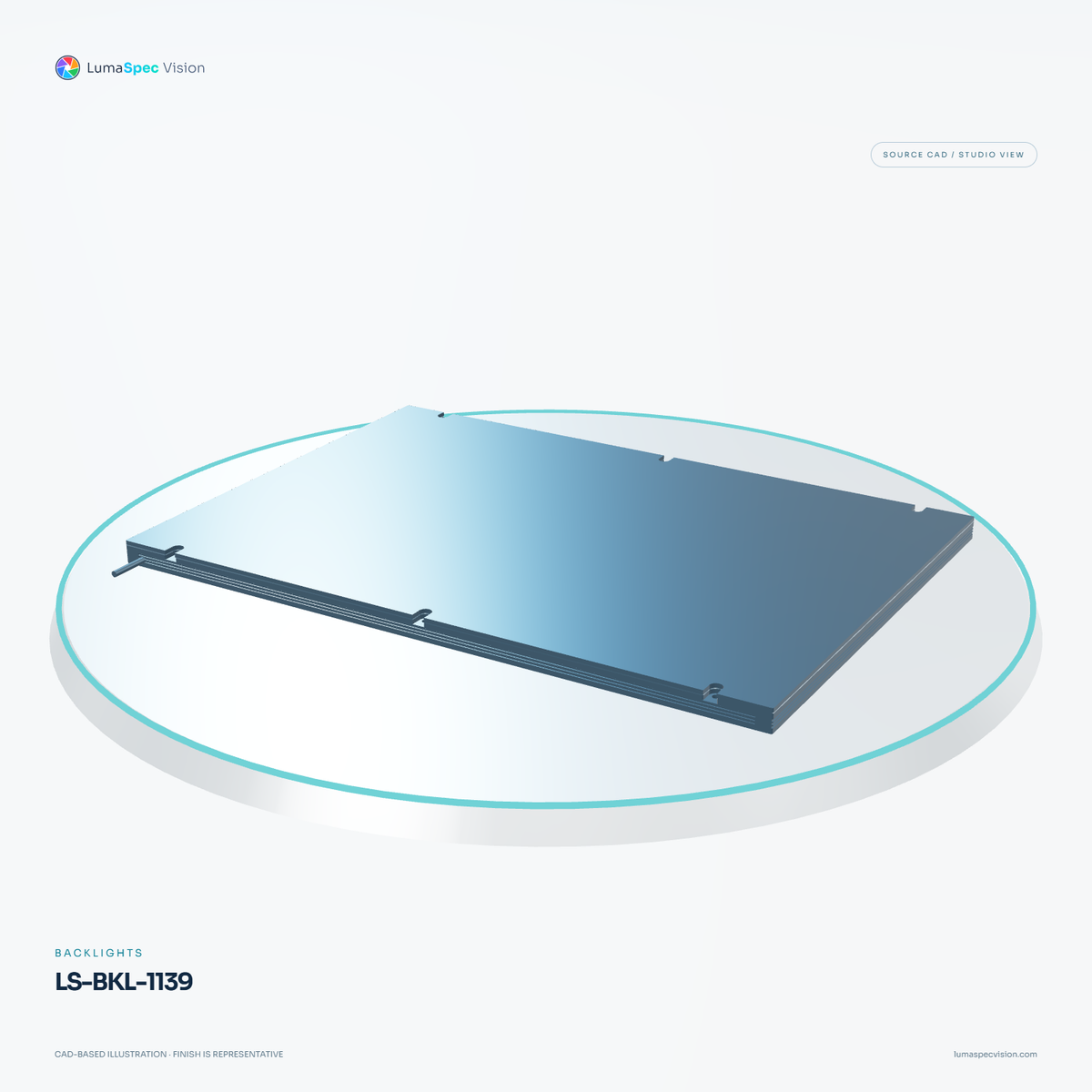

  • LS-BKL-1139 — Backlights, 3D view 3. CAD-based illustration; finish is representative.
  • LS-BKL-1139 dimensions (mm)

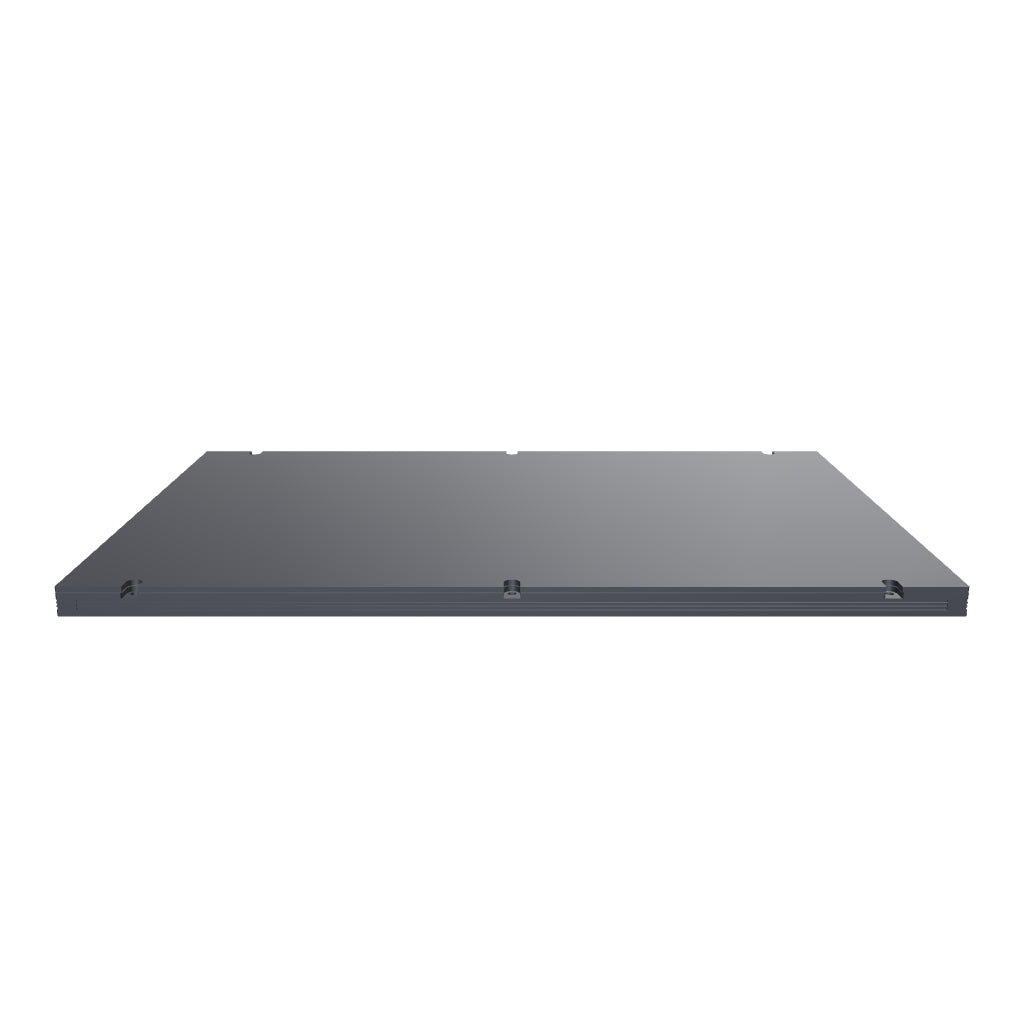

  • LS-BKL-1139 3D model

CAD-based illustration of this model. Finish and light colour are representative; refer to the specifications and dimensioned drawing.

Backlights

300 x 200 mm Edge-Lit Collimated LED Backlight (LS-BKL-1139)

Model LS-BKL-1139

  • ColourRed, Green, Blue, White
  • Emitting area300x200 mm
  • Size335x235x11.5 mm
  • Voltage24 V
  • Power15 W
$889.00

Ships in 2-3 weeks

1.15 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

300 x 200 mm Edge-Lit Collimated LED Backlight (LS-BKL-1139)LS-BKL-1139

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

300 x 200 mm Edge-Lit Collimated LED Backlight. Collimated edge-lit backlight (LED + light-guide plate) that sharpens product edges and raises contrast for diameter and contour measurement; 11.5 mm thick.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BKL-1139
Construction (setup diagram)LED / housing / light-guide plate

Interfaces and I/O

Cable length (mm)500

Light

Emitting area (mm)300x200
ColoursRed, Green, Blue, White

Electrical

Voltage (V)24
Power R (W)10
Power W/B/G (W)15

Mechanical

Outer size L x W x H (mm)335x235x11.5
Thickness (mm)11.5
MountingX-Φ3.2 through holes (installation); 4-6 depth 3
Shipping weight (estimated)1.15 kg

Mounting and drawing data

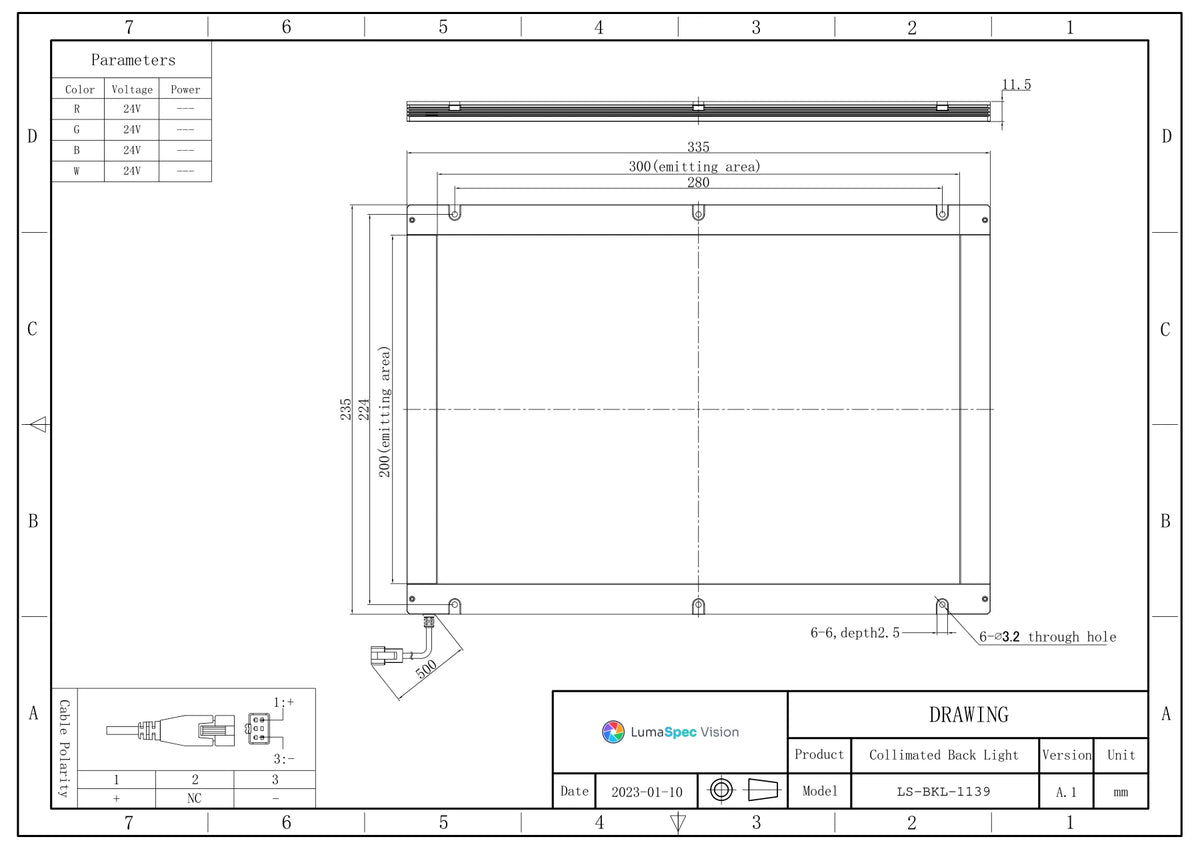

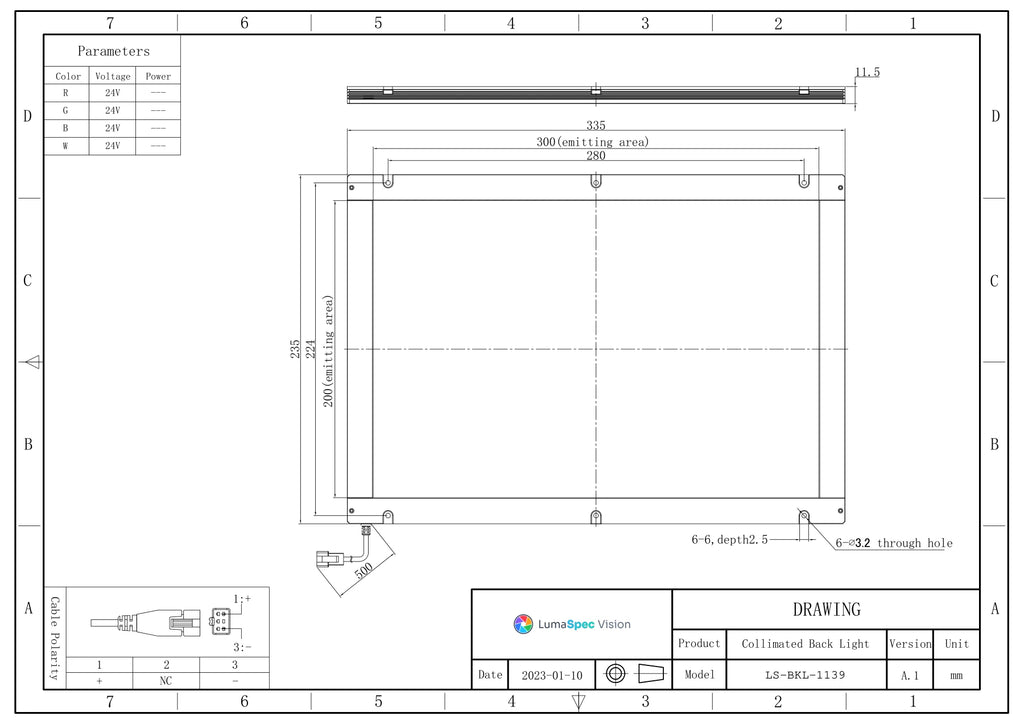

drawing table (X = qty of 3.2 mm through mounting holes): X=6, C=280, D=224

LS-BKL-1139

See this component from every angle.

CAD-based illustration; finish is representative.

Explore the visual library
LS-BKL-1139 — Backlights, View 1 Source CAD

FROM THE PRINTED SPECIFICATIONS

Outer size L x W x H (mm)
335x235x11.5
Emitting area (mm)
300x200
Voltage (V)
24

Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
