Backlights

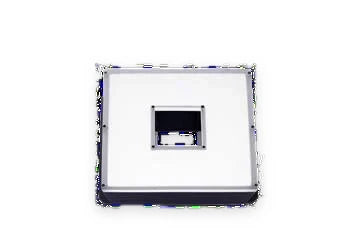

Traditional surface light with opening (LS-BKL-S117)
- 15 models
- from $149.00
- Series LS-BKL-S117
The Traditional surface light with opening (LS-BKL-S117) is a range of 15 backlights from LumaSpec Vision, from $149.00. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Colour
- Red, Green, Blue, White, Infrared, UV
- Size
- 50-100 mm, 100-200 mm, 200-400 mm, 400 mm +
- Type
- Standard
- Voltage
- 24 V
Features
- Large-area uniform light emission
- High-density LED arrangement for high-brightness planar lighting
- Mainly used for contour imaging and large-format uniform illumination
- Size can be customized according to different needs
Typical uses
- Dimension measurement and shape inspection of transparent objects
- Shape inspection of electronic components and ICs
- Component counting and positioning
- Defective product detection
All 15 models in the Traditional surface light with opening (LS-BKL-S117)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-BKL-1219 | 72 | 18 | 4 x dia. 3.5 through holes (fully penetrated) | 5.3 | $149.00 | View |
| LS-BKL-1221 | 150 | 16 | 4 x dia. 4 through holes | 12.88 | $229.00 | View |
| LS-BKL-1220 | 270 | 18 | 4 x dia. 5 through holes | 15.3 | $309.00 | View |
| LS-BKL-1222 | 214 | 20 | 4 x dia. 3.3 holes, depth 4 (back) | 22 | $319.00 | View |
| LS-BKL-1223 | 240 | 25 | 6 x dia. 5 through holes | 12.32 | $329.00 | View |
| LS-BKL-1224 | 21 | 4 x M3 threaded, depth 4 (back) | 20.21 | $349.00 | View | |
| LS-BKL-1225 | 250 | 18 | 6 x dia. 3.5 holes, depth 5 | 29.1 | $449.00 | View |
| LS-BKL-1226 | 263 | 19 | 4 x dia. 4.5 through holes | 30.2 | $469.00 | View |
| LS-BKL-1227 | 296 | 19 | 6 x dia. 3.5 through holes | 31.4 | $489.00 | View |
| LS-BKL-1228 | 310 | 24 | 4 x dia. 5 through holes | 35.3 | $529.00 | View |
| LS-BKL-1229 | 330 | 24 | 4 x dia. 5 through holes | 40.6 | $689.00 | View |
| LS-BKL-1230 | 409 | 22 | 4 x dia. 5 through holes | 45.8 | $849.00 | View |
| LS-BKL-1231 | 530 | 25 | 12 x dia. 5 through holes | 72.3 | $1,279.00 | View |
| LS-BKL-1232 | 530 | 25 | 12 x dia. 5 through holes | 71.6 | $1,279.00 | View |
| LS-BKL-1233 | 733 | 22 | 12 x dia. 5.5 through holes | 103.5 | $2,889.00 | View |
