Traditional surface light with opening (LS-BKL-S117)
  • Traditional surface light with opening (LS-BKL-S117)

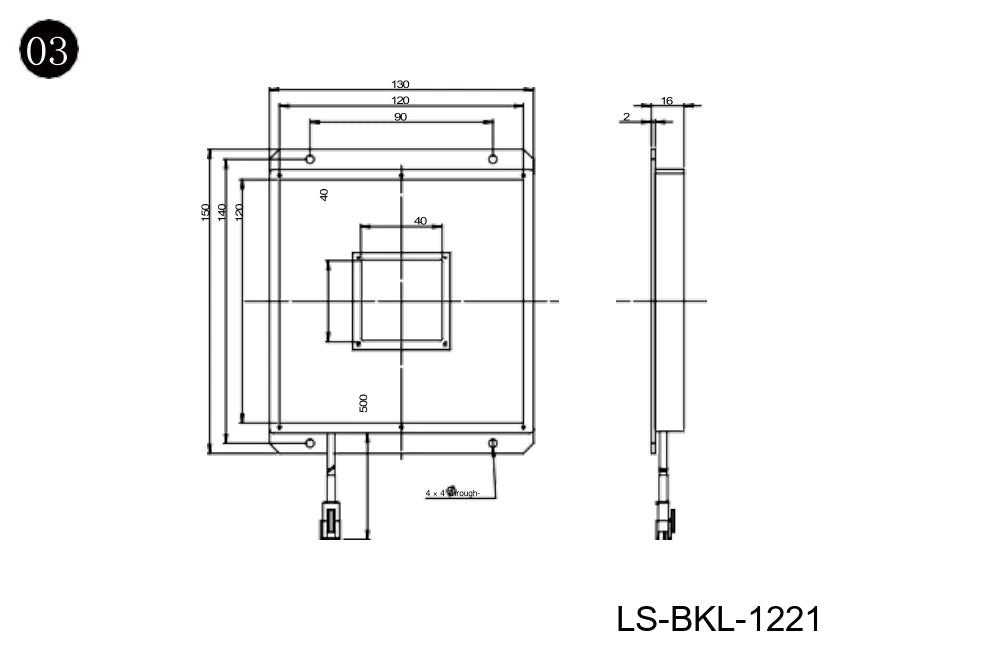

  • LS-BKL-1221 dimensions (mm)

Representative photo of this series

Backlights

150 x 130 mm traditional surface light with opening (LS-BKL-1221)

Model LS-BKL-1221

  • ColourRed, Green, Blue, White, Infrared, UV
  • Voltage24 V DC (12 V on request)
  • TypeStandard
  • Width130 mm
$229.00

Ships in 2-3 weeks

0.5 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

150 x 130 mm traditional surface light with opening (LS-BKL-1221)LS-BKL-1221

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Large-area uniform light emission with a high-density LED array for bright planar lighting; mainly used for contour (silhouette) imaging and large-format uniform illumination. Size can be customized.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BKL-1221
Window / opening (mm)40 x 40

Interfaces and I/O

Cable length (mm)500

Electrical

Voltage24 V DC (12 V on request)
Power red (W)12.88
Power white/blue/green (W)16.1

Mechanical

Width (mm)130
Length (mm)150
Height (mm)16
Mounting4 x dia. 4 through holes
Shipping weight0.50 kg
