Traditional surface light with opening (LS-BKL-S117)
  • Traditional surface light with opening (LS-BKL-S117)

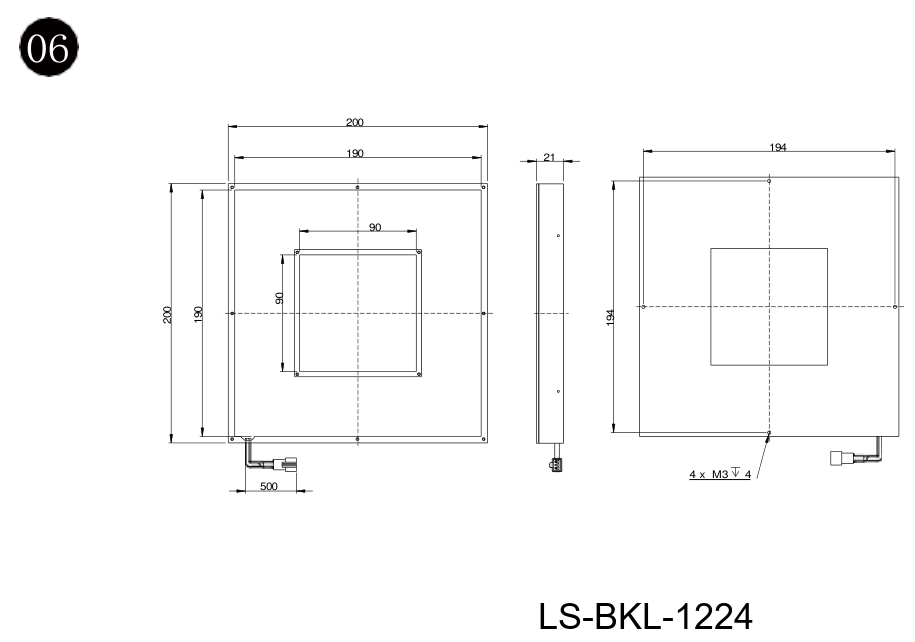

  • LS-BKL-1224 dimensions (mm)

Representative photo of this series

Backlights

200 mm traditional surface light with opening (LS-BKL-1224)

Model LS-BKL-1224

  • ColourRed, Green, Blue, White, Infrared, UV
  • Voltage24 V DC (12 V on request)
  • TypeStandard
  • Length / width200 mm
$349.00

Ships in 2-3 weeks

1.1 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

200 mm traditional surface light with opening (LS-BKL-1224)LS-BKL-1224

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Large-area uniform light emission with a high-density LED array for bright planar lighting; mainly used for contour (silhouette) imaging and large-format uniform illumination. Size can be customized.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BKL-1224
Window / opening (mm)90 x 90

Interfaces and I/O

Cable length (mm)500

Electrical

Voltage24 V DC (12 V on request)
Power red (W)20.21
Power white/blue/green (W)25.39

Mechanical

Length / width (mm)200
Height (mm)21
Mounting4 x M3 threaded, depth 4 (back)
Shipping weight1.10 kg

Other models in the Traditional surface light with opening (LS-BKL-S117) series

See all 15 models
ModelSize / key dataPriceAvailabilityLink
LS-BKL-1219 Red, Green, Blue, White, Infrared, UV · 51 x 51 mm $149.00 Ships in 2-3 weeks View
LS-BKL-1221 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $229.00 Ships in 2-3 weeks View
LS-BKL-1220 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $309.00 Ships in 2-3 weeks View
LS-BKL-1222 Red, Green, Blue, White, Infrared, UV · 200 x 150 mm $319.00 Ships in 2-3 weeks View
LS-BKL-1223 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $329.00 Ships in 2-3 weeks View
LS-BKL-1225 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $449.00 Ships in 2-3 weeks View
LS-BKL-1226 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $469.00 Ships in 2-3 weeks View
LS-BKL-1227 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $489.00 Ships in 2-3 weeks View
LS-BKL-1228 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $529.00 Ships in 2-3 weeks View
LS-BKL-1229 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $689.00 Ships in 2-3 weeks View
LS-BKL-1230 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $849.00 Ships in 2-3 weeks View
LS-BKL-1231 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $1,279.00 Ships in 2-3 weeks View
LS-BKL-1232 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $1,279.00 Ships in 2-3 weeks View
LS-BKL-1233 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $2,889.00 Ships in 2-3 weeks View
