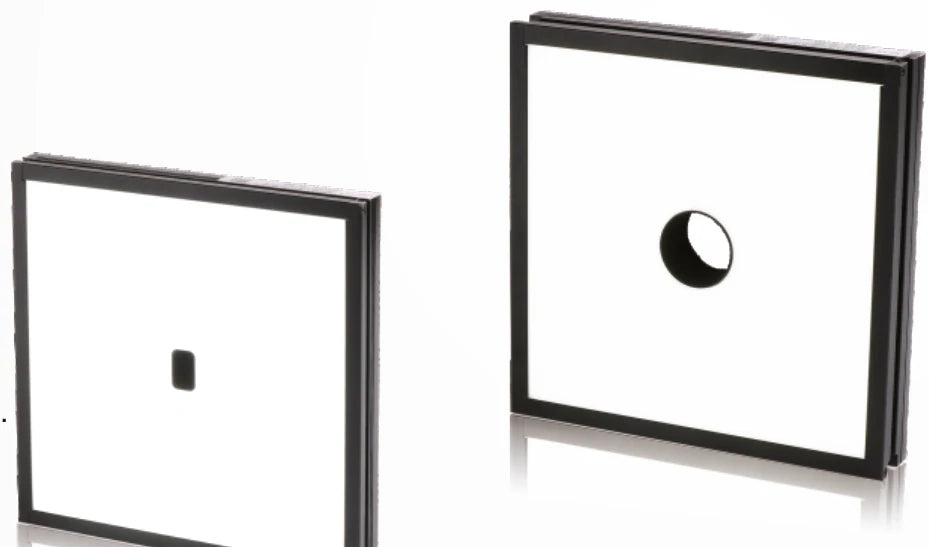

Square back light with centre hole (LS-BKL-S84)
- 5 models
- from $299.00
- Series LS-BKL-S84
The Square back light with centre hole (LS-BKL-S84) is a range of 5 backlights from LumaSpec Vision, from $299.00. It comes in 5 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 110 x 110 mm, 140 x 140 mm, 200 x 100 mm, 200 x 180 mm, 236 x 186 mm
- Colour
- Red, Green, Blue, White
- Type
- With centre hole
- Voltage
- 24 V
Features
- High-density LED distributed to the bottom of the light
- High uniformity, high luminance
- Diverse dimensions for various applications
- Through hole in the emitting area (square)
Typical uses
- Boundary dimension measurement
- Damaged edge inspection
- Transparency impurity inspection
- Oral liquid level height inspection
- Imaging example: dirty part inspection on a gauze mask (LS-BKL-0792-W)
All 5 models in the Square back light with centre hole (LS-BKL-S84)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-BKL-0771 | 110 x 110 mm | 110 x 110 | 40 x 40 (44 x 44 frame) | 9.6 | $299.00 | View |
| LS-BKL-0772 | 140 x 140 mm | 140 x 140 | 15 x 9 (18 x 12 frame) | 18.2 | $359.00 | View |
| LS-BKL-0773 | 200 x 100 mm | 200 x 100 | 40 x 40 (44 x 44 frame) | 16.3 | $369.00 | View |
| LS-BKL-0774 | 200 x 180 mm | 200 x 180 | 40 x 40 (44 x 44 frame) | 32.2 | $509.00 | View |
| LS-BKL-0775 | 236 x 186 mm | 236 x 186 | 70 x 40 (74 x 44 frame) | 37.4 | $579.00 | View |
