Backlights
200 x 100 mm Square back light with centre hole (LS-BKL-0773)
Model LS-BKL-0773
- ColourRed, Green, Blue, White
- Emitting area110mm x 110mm
- Voltage24 V
- TypeWith centre hole
$369.00
In stock - ships the same business day (4 available, order by 2 PM ET)
1.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Back light with high-density LEDs distributed across the bottom for high uniformity and high luminance; diverse dimensions for various applications. The catalog presents 2FTB and 2FTR together as the square / ring back light series.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-0773 |
|---|---|
| Customizable | viewport, length and width, multi-area control, colour and colour temperature, cable length, installation method |
| FOV | 1~220mm |
| Centre hole, square (mm) | 40 x 40 (44 x 44 frame) |
Optics
| Recommended working distance | 10~250mm |
|---|
Interfaces and I/O

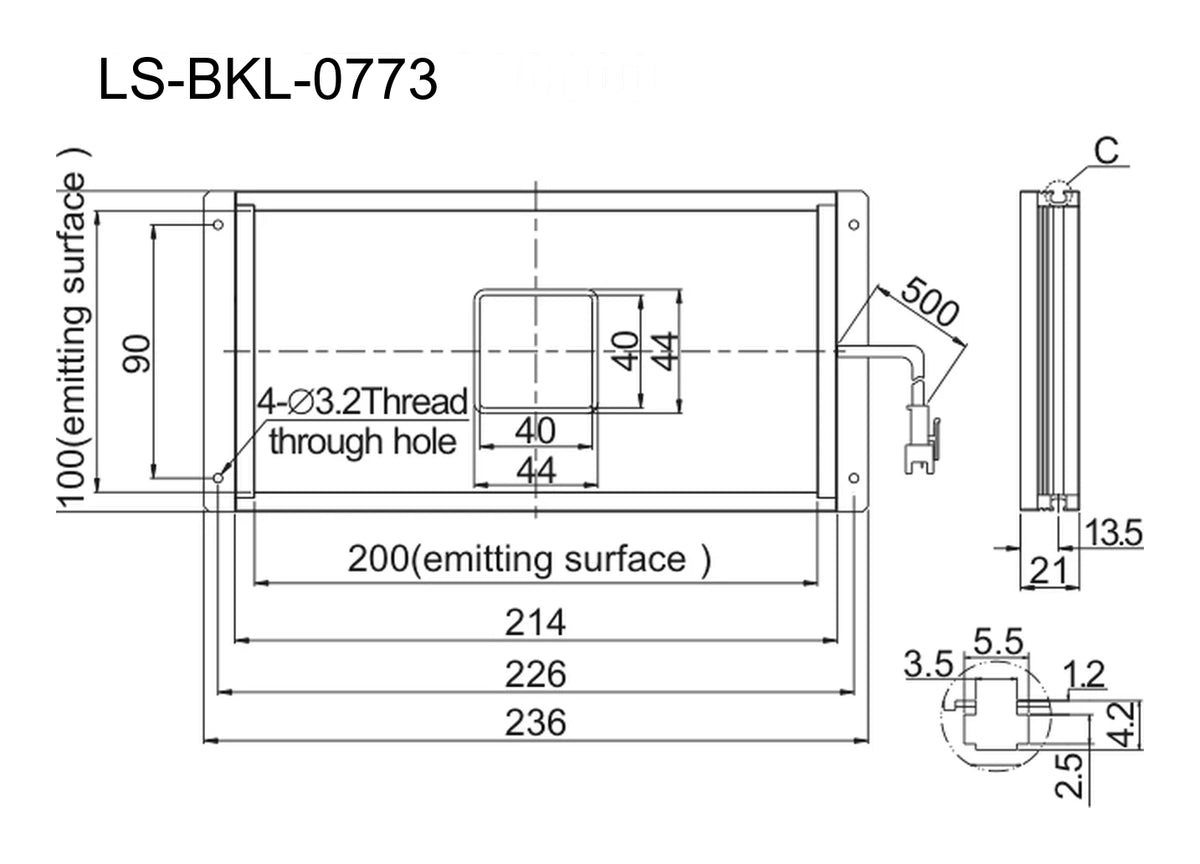

| Cable (mm) | 500 (drawings) |
|---|---|
| Extension cable options | PVC extension cable (high flexibility, bending and heat resistant, for use inside equipment) or high-flexibility extension cable (harder and more abrasion resistant than PVC, for drag-chain production lines) |
Light
| Min. emitting area | 110mm x 110mm |
|---|---|
| Max. emitting area | 236mm x 186mm |
| Colours (overview) | red / green / blue / white |
| Colour temperature of white | 6600K |
| Custom wavelengths | UV & IR light can be customized as required |
| Emitting surface (mm) | 200 x 100 |
Environment and compliance
| Operating temperature | 0-50 °C |
|---|---|
| Operating humidity | 20-85% (non-condensing) |
| Lifespan | 50000 h (to 50% of factory-default luminance) |
Electrical
| Voltage | 24 V |
|---|---|
| Adapted controller | Analog controller, digital controller, high power controller |
| Power, R (W) | 9.8 |
| Power, G/B/W (W) | 16.3 |
Mechanical
| Weight (g) | 696 |
|---|
Other models in the Square back light with centre hole (LS-BKL-S84) series
See all 5 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-BKL-0771 | 110 x 110 mm | $299.00 | 13 in stock | View |
| LS-BKL-0772 | 140 x 140 mm | $359.00 | 13 in stock | View |
| LS-BKL-0774 | 200 x 180 mm | $509.00 | 14 in stock | View |
| LS-BKL-0775 | 236 x 186 mm | $579.00 | 15 in stock | View |
