Backlights

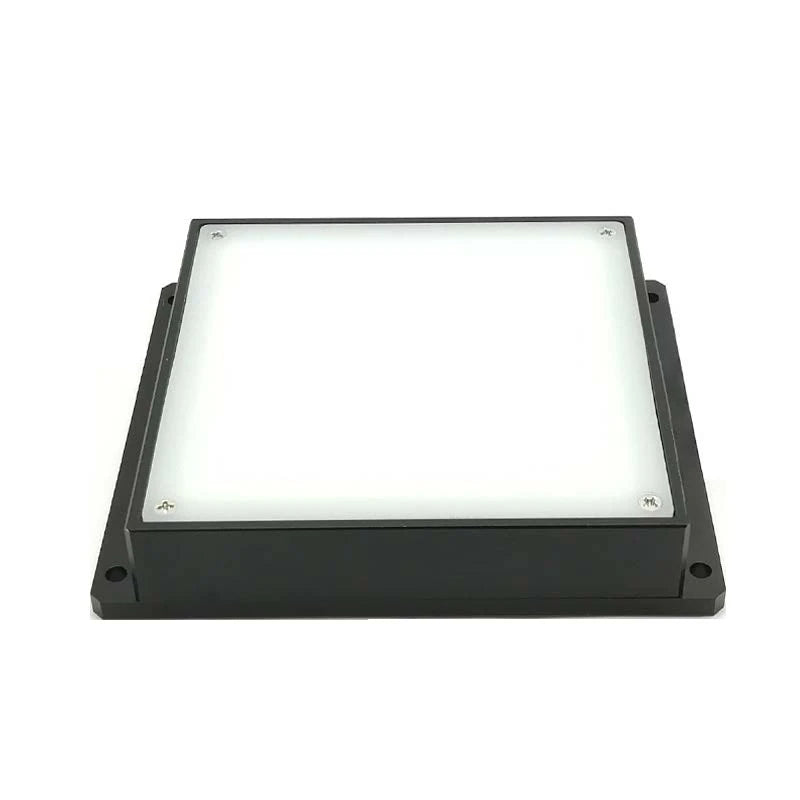

Back light (LS-BKL-S112)
- 9 models
- from $209.00
- Series LS-BKL-S112
The Back light (LS-BKL-S112) is a range of 9 backlights from LumaSpec Vision, from $209.00. It comes in 9 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 50 x 50 mm, 70 x 70 mm, 100 x 100 mm, 120 x 120 mm, 150 x 100 mm, 180 x 150 mm, 200 x 150 mm, 200 x 200 mm, 250 x 250 mm
- Colour
- Red, Green, Blue, White
- Type
- Standard
- Voltage
- 24 V
Features
- High array LED arrangement
- High brightness plane lighting
- Customizable: size, length and width, colour and colour temperature, cable length, installation method
Typical uses
- Contour measurement
- Machining dimension measurement
- Glass bottle damage, foreign body inspection
- Hose position inspection (imaging case)
All 9 models in the Back light (LS-BKL-S112)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-BKL-1143 | 50 x 50 mm | 50 x 50 | 78 x 64 x 19 | 3.0 | $209.00 | View |
| LS-BKL-1144 | 70 x 70 mm | 70 x 70 | 98 x 84 x 19 | 4.0 | $229.00 | View |
| LS-BKL-1145 | 100 x 100 mm | 100 x 100 | 135 x 115 x 19 | 8.0 | $279.00 | View |
| LS-BKL-1146 | 120 x 120 mm | 120 x 120 | 155 x 135 x 19.5 | 10.0 | $309.00 | View |
| LS-BKL-1147 | 150 x 100 mm | 150 x 100 | 180 x 114 x 19 | 13.5 | $319.00 | View |
| LS-BKL-1148 | 180 x 150 mm | 180 x 150 | 215 x 165 x 20 | 17.5 | $429.00 | View |
| LS-BKL-1149 | 200 x 150 mm | 200 x 150 | 214 x 184 x 19 | 27.0 | $459.00 | View |
| LS-BKL-1150 | 200 x 200 mm | 200 x 200 | 214 x 234 x 19 | 24.0 | $549.00 | View |
| LS-BKL-1151 | 250 x 250 mm | 250 x 250 | 265 x 285 x 20 | 38.0 | $739.00 | View |
