Backlights

50 x 50 mm Back light (LS-BKL-1143)

Model LS-BKL-1143

ColourWhite, Green, Blue, Red
Emitting area50 x 50 mm
Voltage24V
Power3.5 W

$209.00

Ships in 2-3 weeks

0.3 kg shipping weight

Color White Green Blue Red

Volume pricing, Net 30 terms or a formal quote for purchasing?

Back light is distributed LED uniformly at the bottom of the light, and forms a uniform irradiated light on the surface through diffuser. Mainly used for detection of contour size and so on.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-BKL-1143

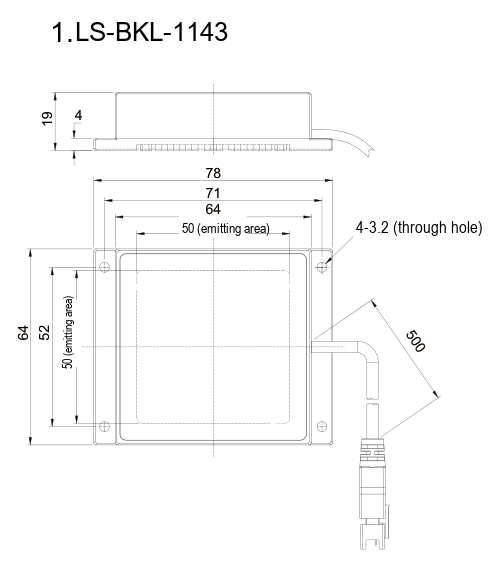

Outline L x W x H (mm)	78 x 64 x 19

Interfaces and I/O

Cable length (mm)	500

Light

Emitting area (mm)	50 x 50

Electrical

Voltage	24V
Matched controller model	LS-CTL-S22 series, LS-CTL-S32 series
Power W/G/B (W)	3.5
Power R (W)	3.0

Mechanical

Mounting	through holes in the flange
Shipping weight	0.30 kg

Other models in the Back light (LS-BKL-S112) series

See all 9 models

Model	Size / key data	Price	Availability	Link
LS-BKL-1144	70 x 70 mm	$229.00	Ships in 2-3 weeks	View
LS-BKL-1145	100 x 100 mm	$279.00	Ships in 2-3 weeks	View
LS-BKL-1146	120 x 120 mm	$309.00	Ships in 2-3 weeks	View
LS-BKL-1147	150 x 100 mm	$319.00	Ships in 2-3 weeks	View
LS-BKL-1148	180 x 150 mm	$429.00	Ships in 2-3 weeks	View
LS-BKL-1149	200 x 150 mm	$459.00	Ships in 2-3 weeks	View
LS-BKL-1150	200 x 200 mm	$549.00	Ships in 2-3 weeks	View
LS-BKL-1151	250 x 250 mm	$739.00	Ships in 2-3 weeks	View
