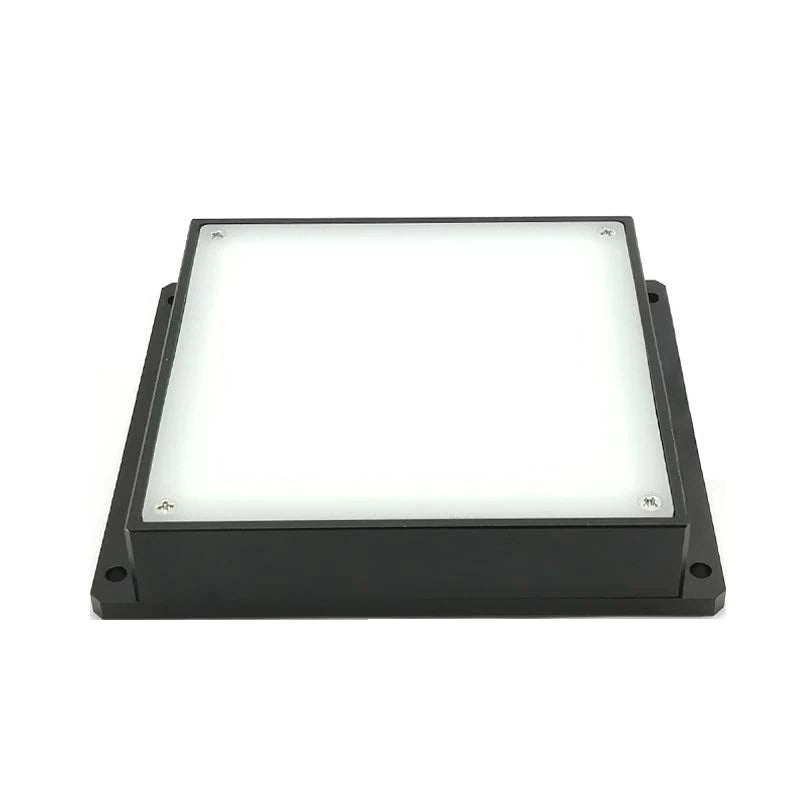

Representative photo of this series
Backlights
250 x 250 mm Back light (LS-BKL-1151)
Model LS-BKL-1151
- ColourWhite, Green, Blue, Red
- Emitting area250 x 250 mm
- Voltage24V
- Power38.0 W
$739.00
In stock - ships the same business day (2 available, order by 2 PM ET)
1.85 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Back light is distributed LED uniformly at the bottom of the light, and forms a uniform irradiated light on the surface through diffuser. Mainly used for detection of contour size and so on.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-1151 |
|---|---|
| Outline L x W x H (mm) | 265 x 285 x 20 |
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Light
| Emitting area (mm) | 250 x 250 |
|---|
Electrical
| Voltage | 24V |
|---|---|
| Matched controller model | LS-CTL-S22 series, LS-CTL-S32 series |
| Power W/G/B (W) | 38.0 |
| Power R (W) | 38.0 |
Mechanical
| Mounting | through holes in the flange |
|---|---|
| Shipping weight | 1.85 kg |
Other models in the Back light (LS-BKL-S112) series
See all 9 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-BKL-1143 | 50 x 50 mm | $209.00 | 19 in stock | View |
| LS-BKL-1144 | 70 x 70 mm | $229.00 | 13 in stock | View |
| LS-BKL-1145 | 100 x 100 mm | $279.00 | 15 in stock | View |
| LS-BKL-1146 | 120 x 120 mm | $309.00 | 17 in stock | View |
| LS-BKL-1147 | 150 x 100 mm | $319.00 | 11 in stock | View |
| LS-BKL-1148 | 180 x 150 mm | $429.00 | 18 in stock | View |
| LS-BKL-1149 | 200 x 150 mm | $459.00 | 18 in stock | View |
| LS-BKL-1150 | 200 x 200 mm | $549.00 | 18 in stock | View |
