Backlights

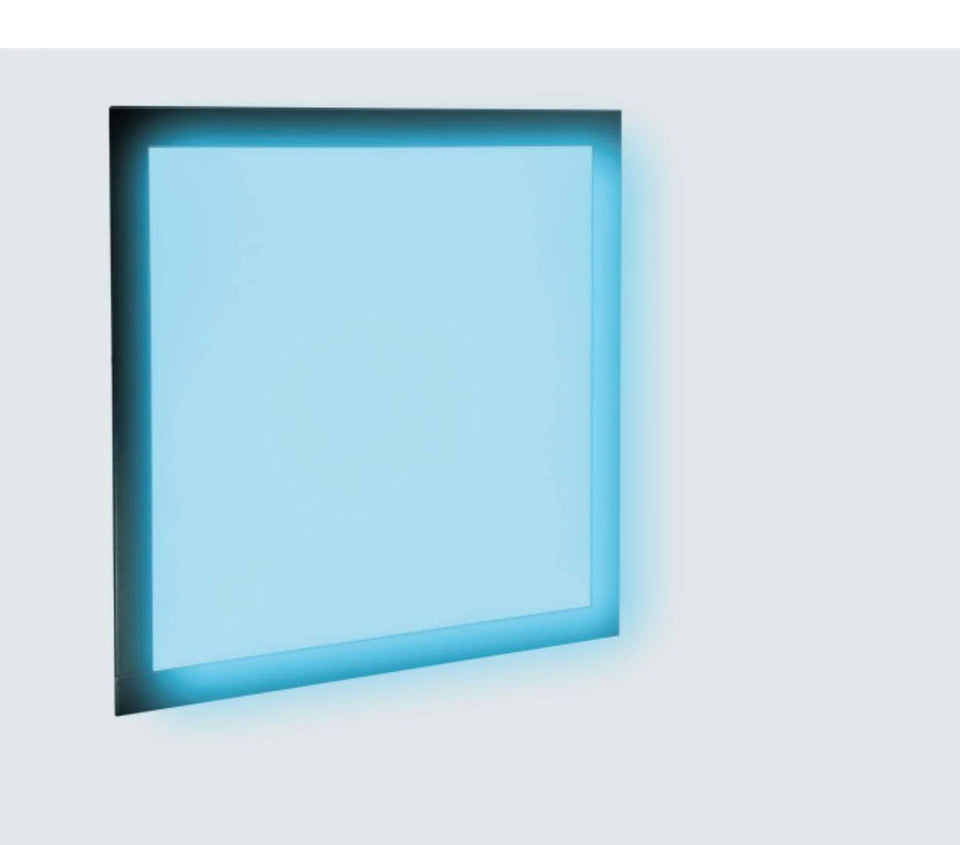

Side light / edge-lit area light (LS-BKL-S122)
- 27 models
- from $209.00
- Series LS-BKL-S122
The Side light / edge-lit area light (LS-BKL-S122) is a range of 27 backlights from LumaSpec Vision, from $209.00. It comes in 20 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 50 x 50 mm, 70 x 70 mm, 100 x 100 mm, 150 x 150 mm, 200 x 150 mm, 200 x 200 mm, 250 x 120 mm, 250 x 150 mm, 250 x 200 mm, 250 x 250 mm, 300 x 200 mm, 300 x 250 mm, 300 x 300 mm, 400 x 200 mm, 400 x 300 mm, 500 x 400 mm and 4 more
- Colour
- Red, Green, Blue, White
- Type
- Edge-lit / ultra-thin
- Voltage
- 24 V
Features
- Ultra-thin design, freely customisable size
- Large-area, highly uniform flat illumination
- Versions with a centre hole (centre-hole versions, -K<hole dia.>)
Typical uses
- Outline measurement, machined dimension measurement, glass bottle damage, foreign matter
- Surface scratches, internal foreign matter and damage on transparent objects
- Tablet appearance inspection, carton positioning, remote-control key character recognition
- Backlit inspection of LED substrates, outer contour edge positioning
All 27 models in the Side light / edge-lit area light (LS-BKL-S122)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-BKL-1264 | 50 x 50 mm | 50 x 50 | 8.5 | 4.5 | $209.00 | View |
| LS-BKL-1265 | 70 x 70 mm | 70 x 70 | 9.0 | 9.0 | $229.00 | View |
| LS-BKL-1266 | 100 x 100 mm | 100 x 100 | 13.0 | 9.0 | $279.00 | View |
| LS-BKL-1267 | 100 x 100 mm | 100 x 100 | 12.5 | 12.5 | $279.00 | View |
| LS-BKL-1268 | 150 x 150 mm | 150 x 150 | 17.5 | 13.0 | $389.00 | View |
| LS-BKL-1272 | 250 x 120 mm | 250 x 120 | 26.0 | 22.0 | $449.00 | View |
| LS-BKL-1269 | 200 x 150 mm | 200 x 150 | $449.00 | View | ||
| LS-BKL-1273 | 250 x 150 mm | 250 x 150 | 26.0 | 22.0 | $519.00 | View |
| LS-BKL-1274 | 250 x 150 mm | 250 x 150 | 26.0 | 22.0 | $519.00 | View |
| LS-BKL-1270 | 200 x 200 mm | 200 x 200 | 25.0 | 17.5 | $539.00 | View |
| LS-BKL-1271 | 200 x 200 mm | 200 x 200 | 20.5 | 19.5 | $539.00 | View |
| LS-BKL-1275 | 250 x 200 mm | 250 x 200 | 26.0 | 22.0 | $629.00 | View |
| LS-BKL-1277 | 300 x 200 mm | 300 x 200 | 31.0 | 22.0 | $719.00 | View |
| LS-BKL-1278 | 300 x 200 mm | 300 x 200 | 31.0 | 22.0 | $719.00 | View |
| LS-BKL-1276 | 250 x 250 mm | 250 x 250 | 26.0 | 22.0 | $739.00 | View |
| LS-BKL-1279 | 300 x 250 mm | 300 x 250 | 31.0 | 22.0 | $829.00 | View |
| LS-BKL-1282 | 400 x 200 mm | 400 x 200 | 43.5 | 35.0 | $879.00 | View |
| LS-BKL-1280 | 300 x 300 mm | 300 x 300 | 31.0 | 22.0 | $949.00 | View |
| LS-BKL-1281 | 300 x 300 mm | 300 x 300 | 31.0 | 22.0 | $949.00 | View |
| LS-BKL-1283 | 400 x 300 mm | 400 x 300 | 43.5 | 35.0 | $1,179.00 | View |
| LS-BKL-1284 | 400 x 300 mm | 400 x 300 | 43.5 | 35.0 | $1,179.00 | View |
| LS-BKL-1285 | 500 x 400 mm | 500 x 400 | 52.0 | 43.0 | $1,249.00 | View |
| LS-BKL-1287 | 600 x 450 mm | 600 x 450 | 61.0 | 52.0 | $1,619.00 | View |
| LS-BKL-1288 | 600 x 450 mm | 600 x 450 | 57.5 | 50 | $1,619.00 | View |
| LS-BKL-1289 | 800 x 600 mm | 800 x 600 | 74.5 | 65.0 | $2,739.00 | View |
| LS-BKL-1290 | 900 x 618 mm | 900 x 618 | 51.0 | 45.0 | $3,149.00 | View |
| LS-BKL-1286 | 1568 x 668 mm | 1568 x 668 | 151.0 | 120.0 | $5,759.00 | View |
