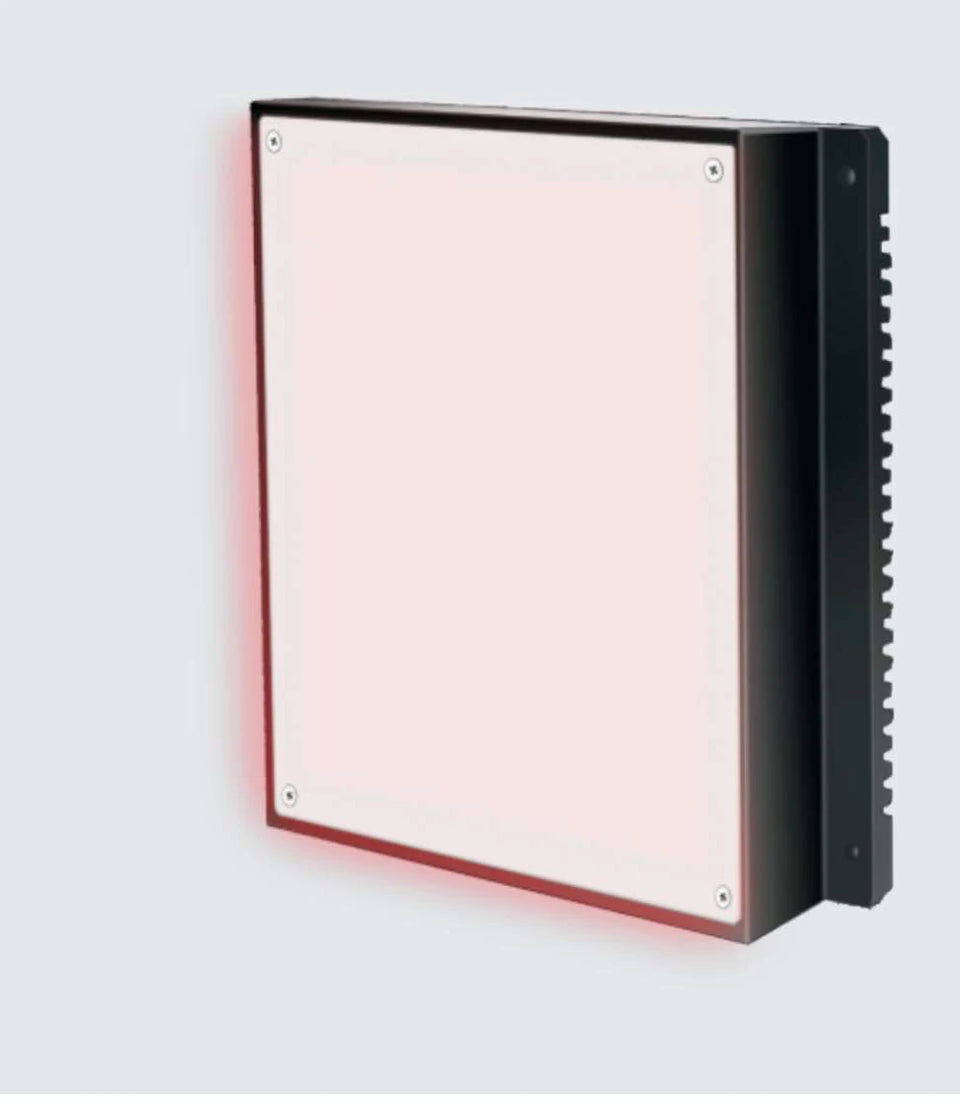

Back light / area light (LS-BKL-S124)
- 29 models
- from $139.00
- Series LS-BKL-S124
The Back light / area light (LS-BKL-S124) is a range of 29 backlights from LumaSpec Vision, from $139.00. It comes in 29 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 19 x 19 mm, 27 x 27 mm, 30 x 30 mm, 50 x 50 mm, 60 x 40 mm, 70 x 70 mm, 100 x 100 mm, 100 x 50 mm, 110 x 60 mm, 120 x 120 mm, 150 x 100 mm, 160 x 120 mm, 180 x 100 mm, 190 x 100 mm, 200 x 100 mm, 200 x 160 mm and 13 more
- Colour
- Red, Green, Blue, White
- Type
- Standard
- Voltage
- 24 V
Features
- High-density LED array
- High-brightness flat illumination
- Optional parallel version (PHFL) with brightness-enhancement film, +20% to 50% brightness
Typical uses
- Outline measurement, machined dimension measurement
- Glass bottle damage, foreign matter inspection
- Surface scratches, stains, internal foreign matter and damage on transparent objects
All 29 models in the Back light / area light (LS-BKL-S124)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-BKL-1311 | 19 x 19 mm | 19 x 19 | 1.0 | 0.5 | $139.00 | View |
| LS-BKL-1312 | 27 x 27 mm | 27 x 27 | 1.5 | 1.0 | $199.00 | View |
| LS-BKL-1313 | 30 x 30 mm | 30 x 30 | 2.0 | 1.5 | $199.00 | View |
| LS-BKL-1314 | 50 x 50 mm | 50 x 50 | 3.5 | 3.0 | $209.00 | View |
| LS-BKL-1315 | 60 x 40 mm | 60 x 40 | 4.0 | 2.5 | $209.00 | View |
| LS-BKL-1316 | 70 x 70 mm | 70 x 70 | 8.0 | 4.0 | $229.00 | View |
| LS-BKL-1317 | 100 x 50 mm | 100 x 50 | 5.0 | 5.0 | $239.00 | View |
| LS-BKL-1318 | 110 x 60 mm | 110 x 60 | 9.0 | 8.0 | $249.00 | View |
| LS-BKL-1319 | 100 x 100 mm | 100 x 100 | 11.0 | 8.0 | $279.00 | View |
| LS-BKL-1320 | 120 x 120 mm | 120 x 120 | 25.5 | 15.0 | $309.00 | View |
| LS-BKL-1321 | 150 x 100 mm | 150 x 100 | 14.5 | 12.0 | $319.00 | View |
| LS-BKL-1323 | 180 x 100 mm | 180 x 100 | 25.5 | 25.5 | $349.00 | View |
| LS-BKL-1324 | 190 x 100 mm | 190 x 100 | 25.5 | 25.5 | $349.00 | View |
| LS-BKL-1322 | 160 x 120 mm | 160 x 120 | 23.0 | 23.0 | $359.00 | View |
| LS-BKL-1325 | 200 x 100 mm | 200 x 100 | 27.0 | 16.5 | $359.00 | View |
| LS-BKL-1329 | 208 x 138 mm | 208 x 138 | 32.0 | 32.0 | $449.00 | View |
| LS-BKL-1326 | 200 x 160 mm | 200 x 160 | 36.0 | 36.0 | $469.00 | View |
| LS-BKL-1328 | 220 x 150 mm | 220 x 150 | 38.0 | 38.0 | $479.00 | View |
| LS-BKL-1330 | 250 x 150 mm | 250 x 150 | 33.0 | 32.0 | $529.00 | View |
| LS-BKL-1327 | 200 x 200 mm | 200 x 200 | 48.0 | 34.0 | $549.00 | View |
| LS-BKL-1331 | 250 x 200 mm | 250 x 200 | 47.0 | 47.0 | $639.00 | View |
| LS-BKL-1335 | 400 x 150 mm | 400 x 150 | 65.0 | 65.0 | $739.00 | View |
| LS-BKL-1332 | 220 x 280 mm | 220 x 280 | 48.5 | 48.5 | $749.00 | View |
| LS-BKL-1333 | 300 x 300 mm | 300 x 300 | 86.5 | 86.5 | $969.00 | View |
| LS-BKL-1334 | 380 x 250 mm | 380 x 250 | 112.5 | 112.5 | $999.00 | View |
| LS-BKL-1337 | 420 x 250 mm | 420 x 250 | 104.0 | 104.0 | $1,099.00 | View |
| LS-BKL-1339 | 700 x 260 mm | 700 x 260 | 171.0 | 171.0 | $1,189.00 | View |
| LS-BKL-1336 | 400 x 300 mm | 400 x 300 | 104.0 | 104.0 | $1,199.00 | View |
| LS-BKL-1338 | 600 x 400 mm | 600 x 400 | 194.0 | 194.0 | $1,509.00 | View |
