Back light / area light (HHFL)
  • Back light / area light (HHFL)

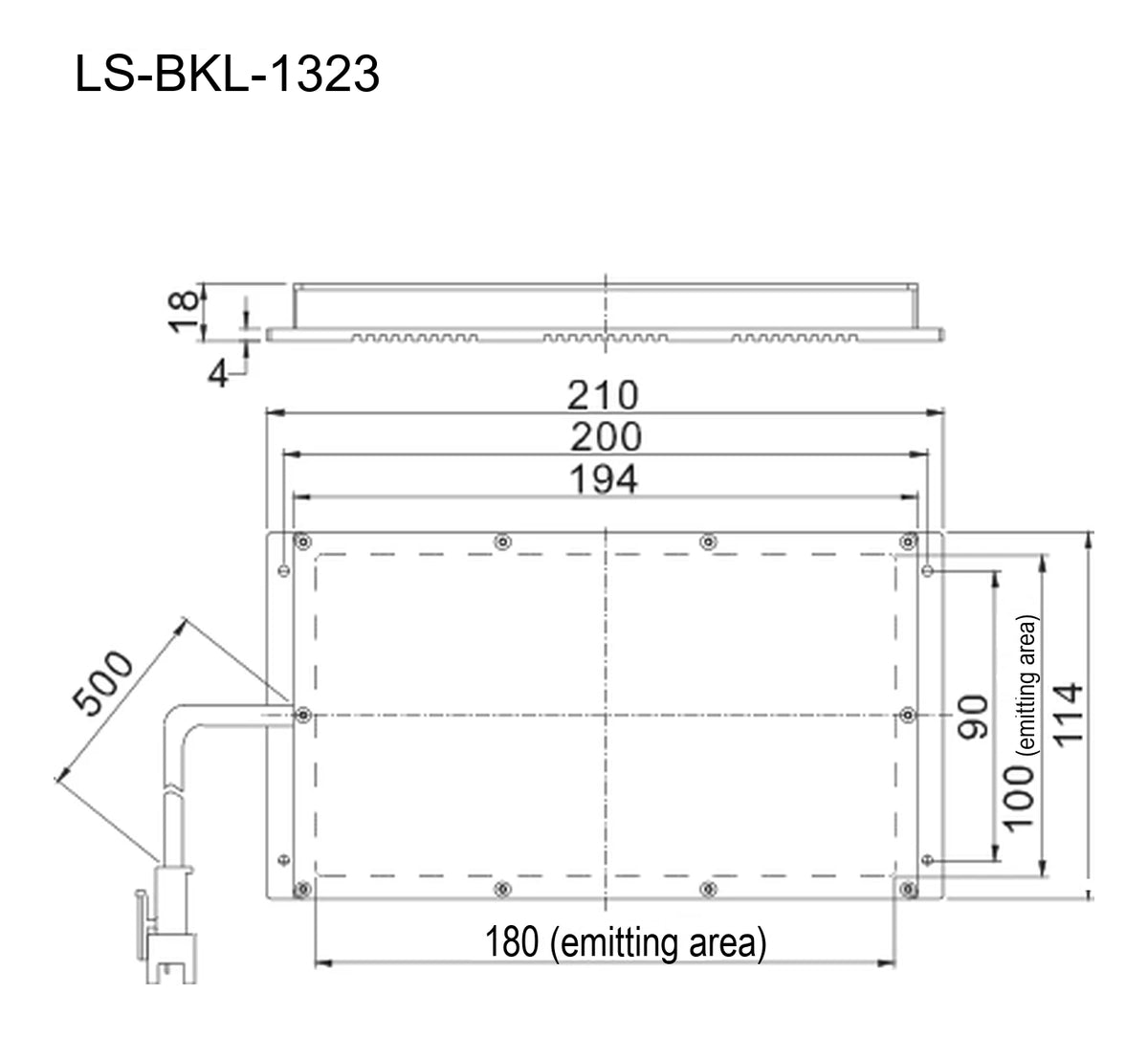

  • LS-HHFL180100 dimensions (mm)

Representative photo of this series

Backlights

180 x 100 mm Back light / area light (LS-BKL-1323)

Model LS-BKL-1323

  • ColourRed, Green, Blue, White
  • Emitting area180 x 100 mm
  • TypeStandard
  • Voltage24 V
$349.00

In stock - ships the same business day (3 available, order by 2 PM ET)

0.65 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

180 x 100 mm Back light / area light (LS-BKL-1323)LS-BKL-1323

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Area light: the LEDs are arranged in a structurally optimised layout on the bottom of the light and pass through a diffuser to form an even emitting surface. Fitted with a brightness-enhancement film it becomes a parallel area light, raising brightness by 20% to 50%; mainly used for outline and dimension inspection.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BKL-1323
Expected lifeRed, white, blue and green: 30000 h continuous, decays to 40% (typical one-year decay 5-10%)
Support1 year of free standard technical support; can be customised to the inspected feature, working distance, illumination angle and field of view

Interfaces and I/O

Cable length (mm)500

Light

Emitting area (mm)180 x 100
Wavelength red620-630 nm
Wavelength green525 nm
Wavelength blue470 nm
Colour temperature white5000-8000 K

Environment and compliance

Operating environmentAmbient about 25 °C, operating temperature within 35 °C

Electrical

Power, green / blue / white (W)25.5
Power, red (W)25.5
Recommended controllersLS-CTL-0142 / LS-CTL-0526, -4T / LS-CTL-0333, -4T, -6T, -8T
Supply voltage (derived)24 V DC, derived from the 24 V output of its recommended controllers LS-CTL-0142, LS-CTL-0526, LS-CTL-0333

Mechanical

Shipping weight0.65 kg

Other models in the Back light / area light (LS-BKL-S124) series

See all 29 models
ModelSize / key dataPriceAvailabilityLink
LS-BKL-1311 19 x 19 mm $139.00 19 in stock View
LS-BKL-1312 27 x 27 mm $199.00 9 in stock View
LS-BKL-1313 30 x 30 mm $199.00 13 in stock View
LS-BKL-1314 50 x 50 mm $209.00 19 in stock View
LS-BKL-1315 60 x 40 mm $209.00 15 in stock View
LS-BKL-1316 70 x 70 mm $229.00 15 in stock View
LS-BKL-1317 100 x 50 mm $239.00 17 in stock View
LS-BKL-1318 110 x 60 mm $249.00 16 in stock View
LS-BKL-1319 100 x 100 mm $279.00 16 in stock View
LS-BKL-1320 120 x 120 mm $309.00 13 in stock View
LS-BKL-1321 150 x 100 mm $319.00 17 in stock View
LS-BKL-1324 190 x 100 mm $349.00 15 in stock View
LS-BKL-1322 160 x 120 mm $359.00 17 in stock View
LS-BKL-1325 200 x 100 mm $359.00 11 in stock View
LS-BKL-1329 208 x 138 mm $449.00 9 in stock View
LS-BKL-1326 200 x 160 mm $469.00 18 in stock View
LS-BKL-1328 220 x 150 mm $479.00 11 in stock View
LS-BKL-1330 250 x 150 mm $529.00 11 in stock View
LS-BKL-1327 200 x 200 mm $549.00 12 in stock View
LS-BKL-1331 250 x 200 mm $639.00 13 in stock View
LS-BKL-1335 400 x 150 mm $739.00 18 in stock View
LS-BKL-1332 220 x 280 mm $749.00 17 in stock View
LS-BKL-1333 300 x 300 mm $969.00 10 in stock View
LS-BKL-1334 380 x 250 mm $999.00 18 in stock View
