Back light / area light (LS-BKL-S124)
  • Back light / area light (LS-BKL-S124)

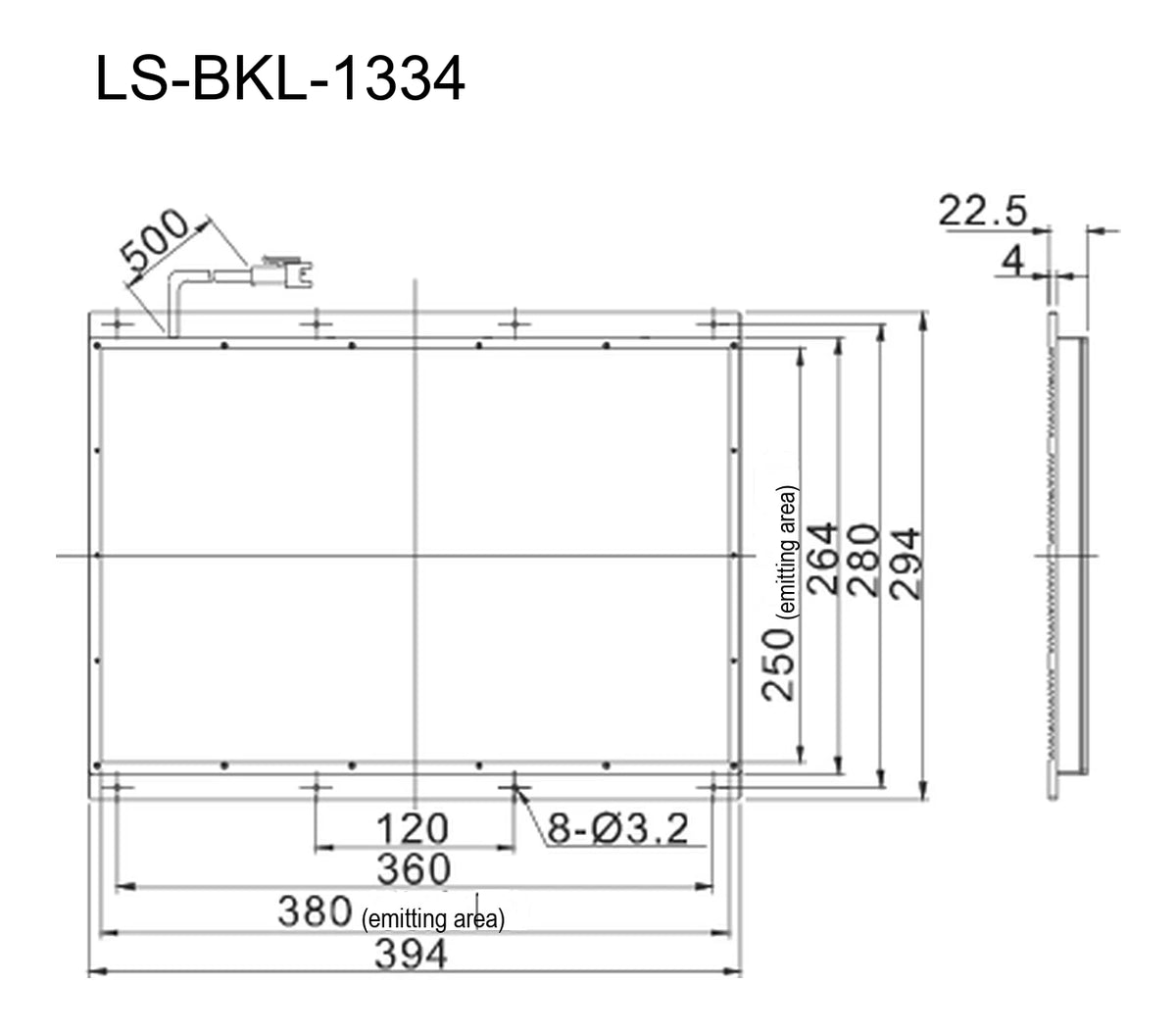

  • LS-BKL-1334 dimensions (mm)

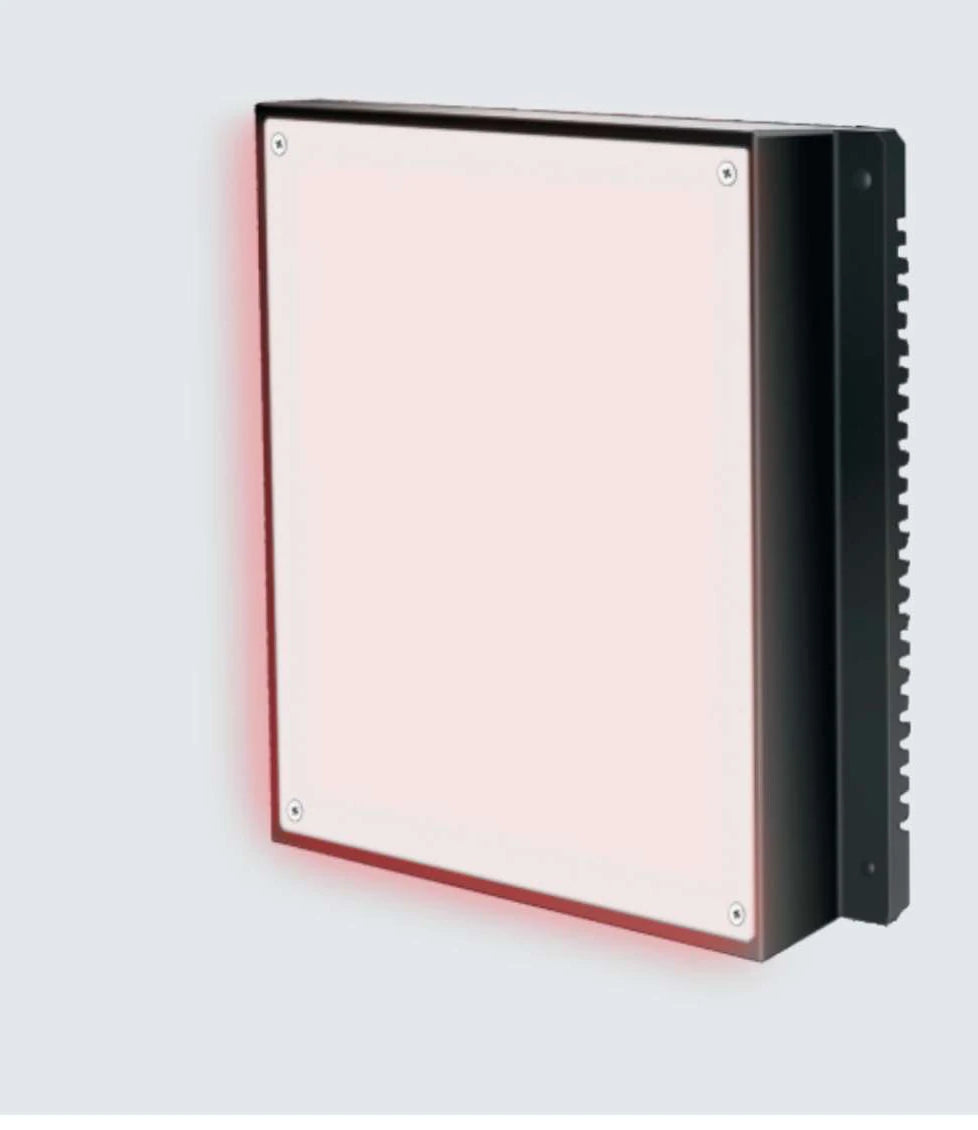

Representative photo of this series

Backlights

380 x 250 mm Back light / area light (LS-BKL-1334)

Model LS-BKL-1334

  • ColourRed, Green, Blue, White
  • Emitting area380 x 250 mm
  • TypeStandard
  • Voltage24 V
$999.00

Ships in 2-3 weeks

2.85 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

380 x 250 mm Back light / area light (LS-BKL-1334)LS-BKL-1334

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Area light: the LEDs are arranged in a structurally optimised layout on the bottom of the light and pass through a diffuser to form an even emitting surface. Fitted with a brightness-enhancement film it becomes a parallel area light, raising brightness by 20% to 50%; mainly used for outline and dimension inspection.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BKL-1334
Expected lifeRed, white, blue and green: 30000 h continuous, decays to 40% (typical one-year decay 5-10%)
Support1 year of free standard technical support; can be customised to the inspected feature, working distance, illumination angle and field of view

Interfaces and I/O

Cable length (mm)500

Light

Emitting area (mm)380 x 250
Wavelength red620-630 nm
Wavelength green525 nm
Wavelength blue470 nm
Colour temperature white5000-8000 K

Environment and compliance

Operating environmentAmbient about 25 °C, operating temperature within 35 °C

Electrical

Power, green / blue / white (W)112.5
Power, red (W)112.5
Recommended controllersLS-CTL-0143
Supply voltage (derived)24 V DC, derived from the 24 V output of its recommended controllers LS-CTL-0143

Mechanical

Shipping weight2.85 kg

Other models in the Back light / area light (LS-BKL-S124) series

See all 29 models
ModelSize / key dataPriceAvailabilityLink
LS-BKL-1315 60 x 40 mm $209.00 Ships in 2-3 weeks View
LS-BKL-1316 70 x 70 mm $229.00 Ships in 2-3 weeks View
LS-BKL-1317 100 x 50 mm $239.00 Ships in 2-3 weeks View
LS-BKL-1318 110 x 60 mm $249.00 Ships in 2-3 weeks View
LS-BKL-1319 100 x 100 mm $279.00 Ships in 2-3 weeks View
LS-BKL-1320 120 x 120 mm $309.00 Ships in 2-3 weeks View
LS-BKL-1321 150 x 100 mm $319.00 Ships in 2-3 weeks View
LS-BKL-1323 180 x 100 mm $349.00 Ships in 2-3 weeks View
LS-BKL-1324 190 x 100 mm $349.00 Ships in 2-3 weeks View
LS-BKL-1322 160 x 120 mm $359.00 Ships in 2-3 weeks View
LS-BKL-1325 200 x 100 mm $359.00 Ships in 2-3 weeks View
LS-BKL-1329 208 x 138 mm $449.00 Ships in 2-3 weeks View
LS-BKL-1326 200 x 160 mm $469.00 Ships in 2-3 weeks View
LS-BKL-1328 220 x 150 mm $479.00 Ships in 2-3 weeks View
LS-BKL-1330 250 x 150 mm $529.00 Ships in 2-3 weeks View
LS-BKL-1327 200 x 200 mm $549.00 Ships in 2-3 weeks View
LS-BKL-1331 250 x 200 mm $639.00 Ships in 2-3 weeks View
LS-BKL-1335 400 x 150 mm $739.00 Ships in 2-3 weeks View
LS-BKL-1332 220 x 280 mm $749.00 Ships in 2-3 weeks View
LS-BKL-1333 300 x 300 mm $969.00 Ships in 2-3 weeks View
LS-BKL-1337 420 x 250 mm $1,099.00 Ships in 2-3 weeks View
LS-BKL-1339 700 x 260 mm $1,189.00 Ships in 2-3 weeks View
LS-BKL-1336 400 x 300 mm $1,199.00 Ships in 2-3 weeks View
LS-BKL-1338 600 x 400 mm $1,509.00 Ships in 2-3 weeks View
