Backlights

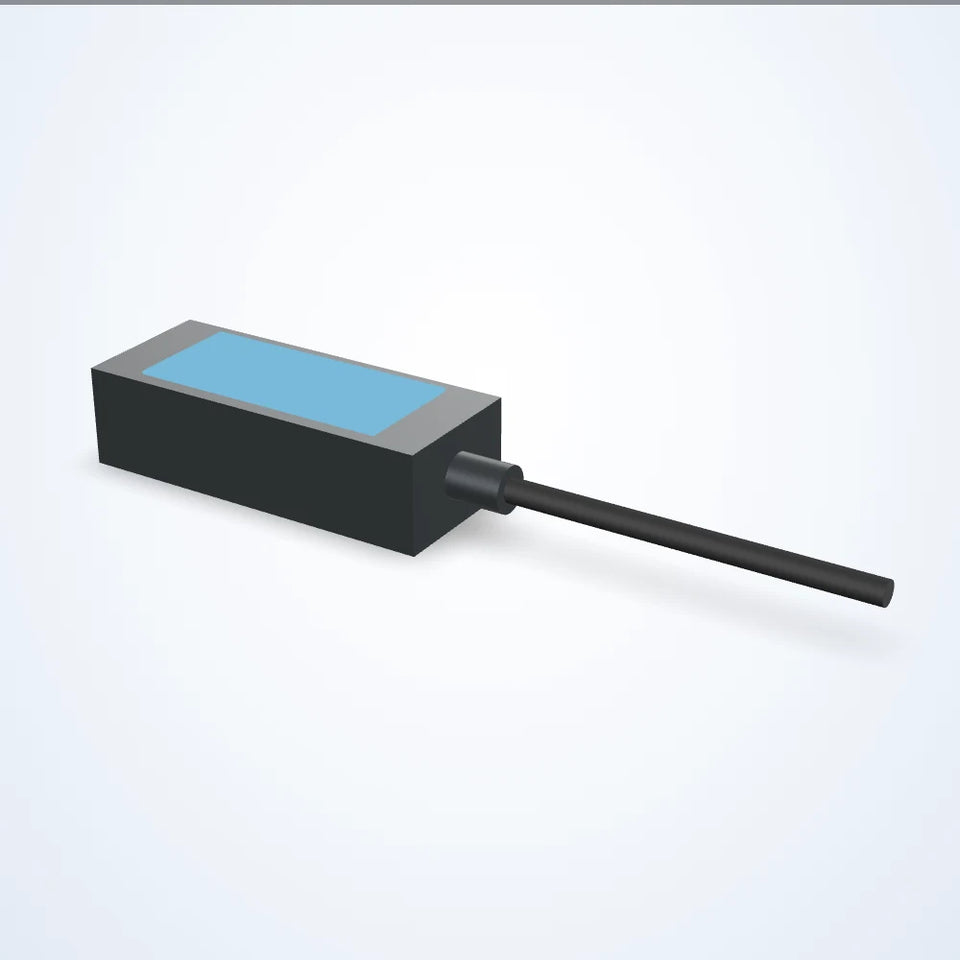

Backlight series, 21.7 mm high, Flying Leads
- 10 models
- from $529.00
- Series LS-BKL-S07
The Backlight series, 21.7 mm high, Flying Leads is a range of 10 backlights from LumaSpec Vision, from $529.00. It comes in 10 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 57.7 x 25.7 mm, 108.5 x 25.7 mm, 159.3 x 25.7 mm, 210.1 x 25.7 mm, 260.9 x 25.7 mm, 311.7 x 25.7 mm, 362.5 x 25.7 mm, 413.3 x 25.7 mm, 464.1 x 25.7 mm, 514.9 x 25.7 mm
- Type
- Standard
- Voltage
- 24 V
- Colour
- Red, Green, Blue, White, Infrared
- Wavelength
- 850 nm, 940 nm
All 10 models in the Backlight series, 21.7 mm high, Flying Leads
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-BKL-0131 | 57.7 x 25.7 mm | 57.7 | 80 | 378 / 756 (by configuration) | $529.00quote | View |
| LS-BKL-0132 | 108.5 x 25.7 mm | 108.5 | 130.8 | 618 / 1236 (by configuration) | $609.00quote | View |
| LS-BKL-0133 | 159.3 x 25.7 mm | 159.3 | 181.6 | 858 / 1716 (by configuration) | $769.00quote | View |
| LS-BKL-0134 | 210.1 x 25.7 mm | 210.1 | 232.4 | 1098 / 2196 (by configuration) | $879.00quote | View |
| LS-BKL-0135 | 260.9 x 25.7 mm | 260.9 | 283.2 | 1338 / 2676 (by configuration) | $1,019.00quote | View |
| LS-BKL-0136 | 311.7 x 25.7 mm | 311.7 | 334 | 1578 / 3156 (by configuration) | $1,149.00quote | View |
| LS-BKL-0137 | 362.5 x 25.7 mm | 362.5 | 384.8 | 1363 / 2727 (by configuration) | $1,289.00quote | View |
| LS-BKL-0138 | 413.3 x 25.7 mm | 413.3 | 435.6 | 1543 / 3087 (by configuration) | $1,429.00quote | View |
| LS-BKL-0139 | 464.1 x 25.7 mm | 464.1 | 486.4 | 1723 / 3447 (by configuration) | $1,559.00quote | View |
| LS-BKL-0140 | 514.9 x 25.7 mm | 514.9 | 537.2 | 1903 / 3807 (by configuration) | $1,699.00quote | View |
