Backlights

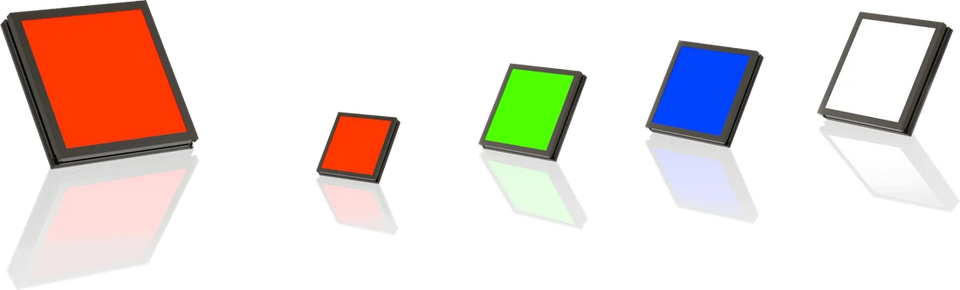

Bottom Back Light (BC series)
- 12 models
- from $79.00
- Series LS-BC
The Bottom Back Light (BC series) is a range of 12 backlights from LumaSpec Vision, from $79.00. It comes in 12 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 27 x 27 mm, 43 x 35 mm, 50 x 50 mm, 63 x 60 mm, 83 x 75 mm, 100 x 100 mm, 140 x 105 mm, 160 x 120 mm, 200 x 150 mm, 200 x 50 mm, 211 x 200 mm, 224 x 170 mm
- Colour
- Red, Green, Blue, White
- Type
- Standard
- Voltage
- 24 V
Features
- High-brightness LED array arrangement for achieving uniform plane illumination.
- Large-area uniform illumination for transmissive contour imaging.
Typical uses
- Various size measurements, electronic component/IC outline inspection, film spot detection.
- Defect detection of chainsaw wheel gears
- Impurity detection in liquid
- Dimension inspection of metal part
- Date detection
All 12 models in the Bottom Back Light (BC series)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-BC-27X27 | 27 x 27 mm | 27x27 | 41x41x17 | 2.5 | $79.00 | View |
| LS-BC-43X35 | 43 x 35 mm | 43x35 | 57x49x17 | 2.5 | $79.00 | View |
| LS-BC-50X50 | 50 x 50 mm | 50x50 | 64x64x17 | 4.3 | $89.00 | View |
| LS-BC-63X60 | 63 x 60 mm | 63x60 | 77x74x17 | 5.3 | $89.00 | View |
| LS-BC-83X75 | 83 x 75 mm | 83x75 | 97x89x17 | 6.3 | $99.00 | View |
| LS-BC-100X100 | 100 x 100 mm | 100x100 | 114x114x17 | 6.6 | $109.00 | View |
| LS-BC-200X50 | 200 x 50 mm | 200x50 | 214x64x17 | 16.5 | $109.00 | View |
| LS-BC-140X105 | 140 x 105 mm | 140x105 | 154x119x17 | 9.9 | $129.00 | View |
| LS-BC-160X120 | 160 x 120 mm | 160x120 | 174x134x17 | 13.2 | $149.00 | View |
| LS-BC-200X150 | 200 x 150 mm | 200x150 | 214x164x17 | 19.8 | $189.00 | View |
| LS-BC-224X170 | 224 x 170 mm | 224x170 | 238x184x17 | 16.5 | $209.00 | View |
| LS-BC-211X200 | 211 x 200 mm | 211x200 | 225x214x17 | 21.8 | $229.00 | View |
