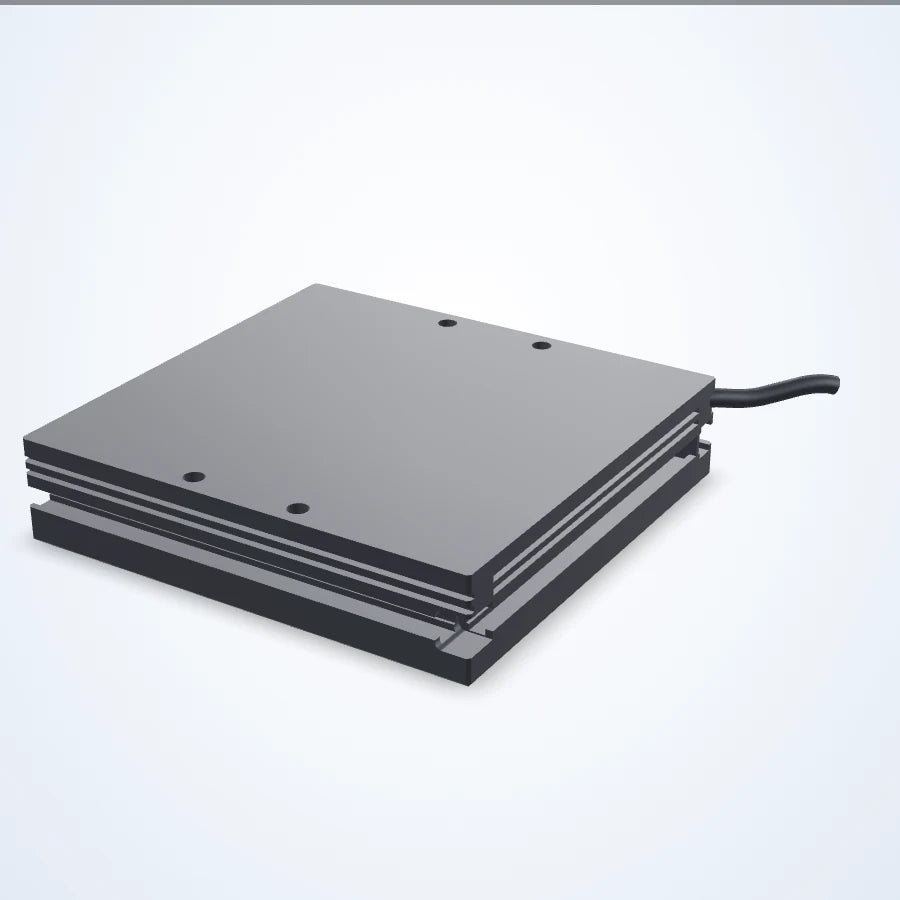

63 x 60 mm Bottom-Lit LED Backlight (LS-BC-63X60)
Model LS-BC-63X60
- ColourRed, Green, Blue, White
- Emitting area63x60 mm
- Size77x74x17 mm
- Voltage24 V
- Power8 W
$89.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.3 kg shipping weight
Volume pricing, Net 30 or a formal quote?
63 x 60 mm Bottom-Lit LED Backlight. Bottom-lit LED backlight: a high-brightness LED array under a diffuser plate gives uniform planar illumination for transmissive contour imaging.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BC-63X60 |
|---|---|
| Construction (setup diagram) | LED / housing / diffuser plate |
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Light
| Emitting area (mm) | 63x60 |
|---|---|
| Colours | Red, Green, Blue, White |
Electrical
| Voltage (V) | 24 |
|---|---|
| Power R (W) | 5.3 |
| Power W/B/G (W) | 8 |
Mechanical
| Outer size L x W x H (mm) | 77x74x17 |
|---|---|
| Mounting | 4-M3 depth 5 on back; M3 nut slot in side profile |
| Thickness (mm) | 17 |
| Shipping weight (estimated) | 0.30 kg |

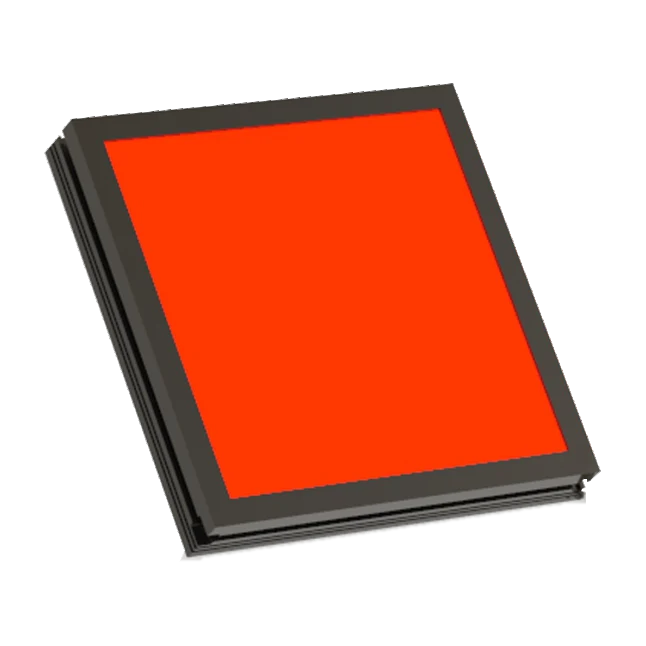

Photo shows a representative model of this series; see the specifications for this model.
Mounting and drawing data
drawing table (LS-BC-AXB): C=67, D=25 (4-M3 depth-5 mounting hole spacing)
