Backlights

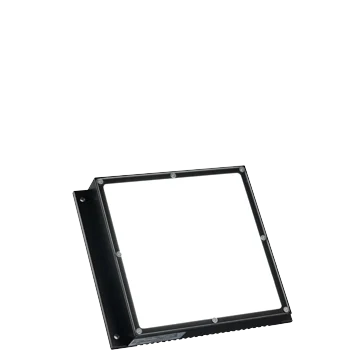

Flat backlights
- 9 models
- from $79.00
- Series LS-LBPS-C
The Flat backlights is a range of 9 backlights from LumaSpec Vision, from $79.00. It comes in 9 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 37 x 37 mm, White, 78 x 64 mm, Blue, 78 x 64 mm, White, 135 x 115 mm, White, 135 x 65 mm, Blue, 155 x 135 mm, Red, 155 x 135 mm, White, 180 x 114 mm, White, 232 x 262 mm, White
- Type
- Standard
- Voltage
- 24 V
- Colour
- Red, Blue, White
Features
- Wide-angle SMD LEDs in a high-density layout for good uniformity
- Added parallel film for better light directionality
- Available in custom sizes and wavelengths
- Multiple mounting options
All 9 models in the Flat backlights
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-LBPS-27-27-W | 37 x 37 mm, White | 27 mm × 27 mm | White | 1.6 W | $79.00 | View |
| LS-LBPS-50-50-W | 78 x 64 mm, White | 50 mm × 50 mm | White | 3.8 W | $89.00 | View |
| LS-LBPS-50-50-B | 78 x 64 mm, Blue | 50 mm × 50 mm | Blue | 3.2 W | $89.00 | View |
| LS-LBPS-100-50-B | 135 x 65 mm, Blue | 100 mm × 50 mm | Blue | 6.5 W | $99.00 | View |
| LS-LBPS-100-100-W | 135 x 115 mm, White | 100 mm × 100 mm | White | 19.2 W | $109.00 | View |
| LS-LBPS-150-100-W | 180 x 114 mm, White | 150 mm × 100 mm | White | 26.4 W | $129.00 | View |
| LS-LBPS-120-120-R | 155 x 135 mm, Red | 120 mm × 120 mm | Red | 11 W | $129.00 | View |
| LS-LBPS-120-120-W | 155 x 135 mm, White | 120 mm × 120 mm | White | 19.5 W | $129.00 | View |
| LS-LBPS-250-200-W | 232 x 262 mm, White | 250 mm × 200 mm | White | 51.9 W | $259.00 | View |
