Backlights

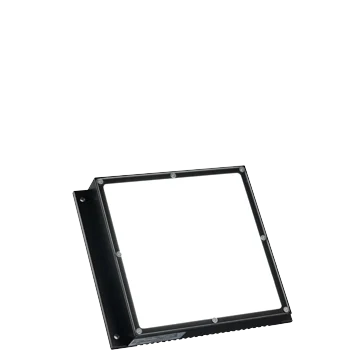

Flat Backlight, 135 x 115 mm, White, size 135 mm × 115 mm × 22 mm (LS-LBPS-100-100-W)
Model LS-LBPS-100-100-W
- ColourWhite
- Emitting area100 mm × 100 mm
- Size135 mm × 115 mm × 22 mm
- Power19.2 W
$109.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.66 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Flat Backlight, 135 x 115 mm, White. Wide-angle SMD LEDs in a high-density layout for good uniformity Added parallel film for better light directionality
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LBPS-100-100-W |
|---|
Interfaces and I/O
| Connector type | SMR-03V-B |
|---|---|
| Cable length | 500 mm |
Light
| Color | White |
|---|---|
| Color temperature | 6000~7000K |
| Emitting area dimension | 100 mm × 100 mm |
| Diffuse plate included | Included |
Environment and compliance
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
|---|---|
| Humidity | 20% to 85% RH (non-condensing) |
Electrical
| Power | 19.2 W |
|---|---|
| Supply voltage (derived) | 24 V DC, derived: all 370 lights of this range with the same connector type that state a voltage are rated 24 V |
Mechanical
| Dimension | 135 mm × 115 mm × 22 mm |
|---|---|
| Shipping weight (estimated) | 0.66 kg |
Other models in the Flat backlights series
See all 9 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-LBPS-27-27-W | 37 x 37 mm, White | $79.00 | 4 in stock | View |
| LS-LBPS-50-50-W | 78 x 64 mm, White | $89.00 | 2 in stock | View |
| LS-LBPS-50-50-B | 78 x 64 mm, Blue | $89.00 | 2 in stock | View |
| LS-LBPS-100-50-B | 135 x 65 mm, Blue | $99.00 | 4 in stock | View |
| LS-LBPS-150-100-W | 180 x 114 mm, White | $129.00 | 4 in stock | View |
| LS-LBPS-120-120-R | 155 x 135 mm, Red | $129.00 | 4 in stock | View |
| LS-LBPS-120-120-W | 155 x 135 mm, White | $129.00 | 4 in stock | View |
| LS-LBPS-250-200-W | 232 x 262 mm, White | $259.00 | 4 in stock | View |
