Backlights
Flat backlights
- 5 models
- from $89.00
- Series LS-LBFH-C

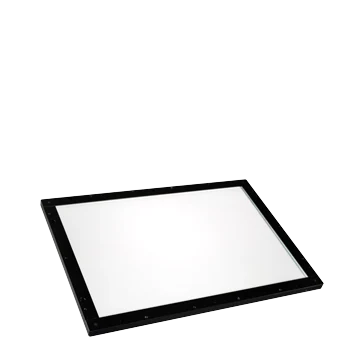

The Flat backlights is a range of 5 backlights from LumaSpec Vision, from $89.00. It comes in 5 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 82 x 82 mm, White, 132 x 132 mm, White, 232 x 182 mm, White, 332 x 232 mm, White, 432 x 332 mm, White
- Type
- Standard
- Voltage
- 24 V
- Colour
- White
Features
- Ultra-thin profile
- Special light-guide material for good uniformity
- Added parallel film for better light directionality
- Available in custom sizes and wavelengths
All 5 models in the Flat backlights
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-LBFH-50-50-W | 82 x 82 mm, White | 50 mm × 50 mm | 3.4 W | 82 mm × 82 mm × 12.5 mm | $89.00 | View |
| LS-LBFH-100-100-W | 132 x 132 mm, White | 100 mm × 100 mm | 3.3 W | 132 mm × 132 mm × 12.5 mm | $109.00 | View |
| LS-LBFH-200-150-W | 232 x 182 mm, White | 200 mm × 150 mm | 4.6 W | 232 mm × 182 mm × 12.5 mm | $189.00 | View |
| LS-LBFH-300-200-W | 332 x 232 mm, White | 300 mm × 200 mm | 4.1 W | 332 mm × 232 mm × 14.5 mm | $289.00 | View |
| LS-LBFH-400-300-W | 432 x 332 mm, White | 400 mm × 300 mm | 10.6 W | 432 mm × 332 mm × 14.5 mm | $509.00 | View |
